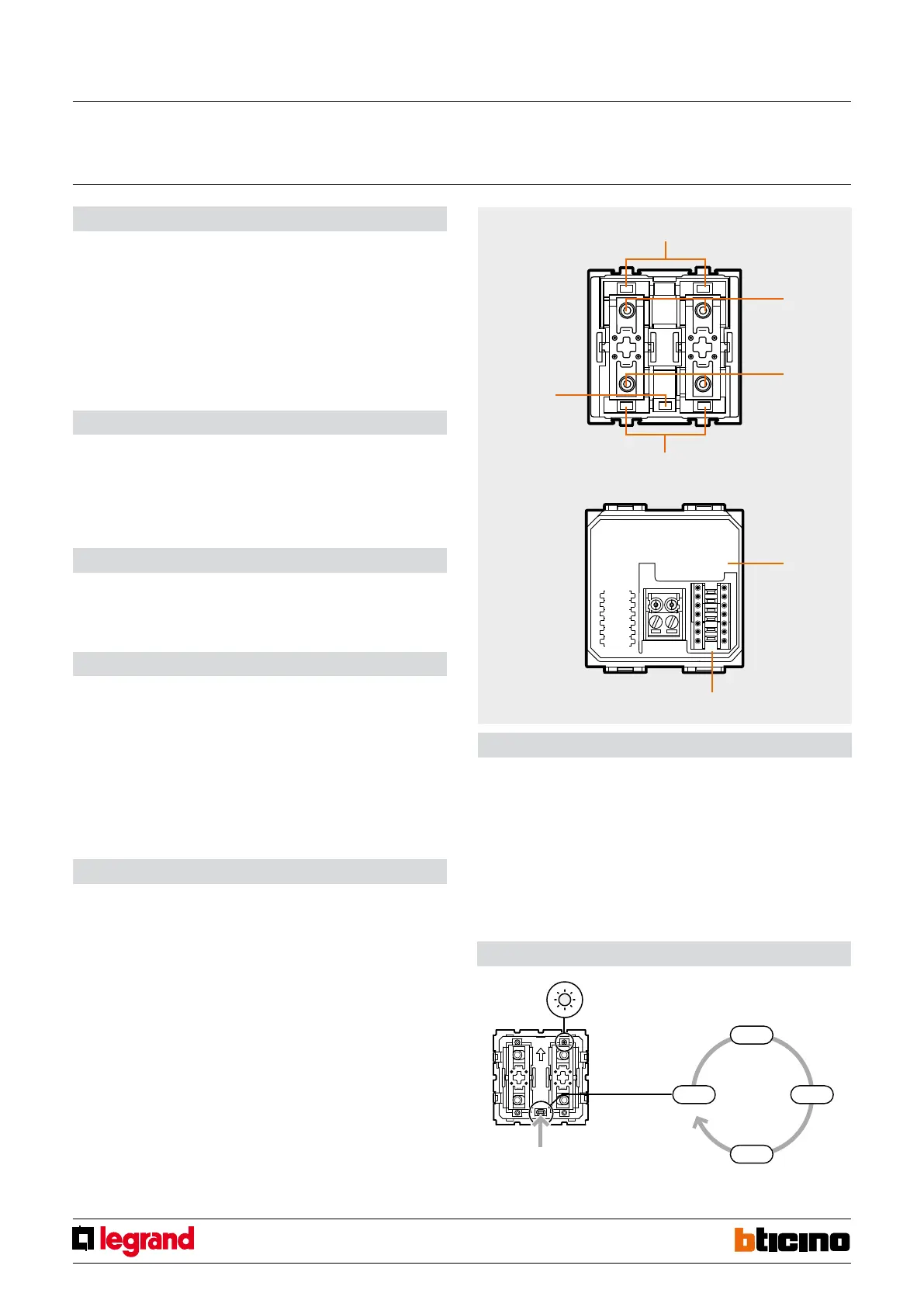

1. LED
2. Top buttons
3. Bottom buttons
4. LED
5. LED control/off button
6. Configurator seat (note that this must only be used in My Home systems with the
physical configuration)
7. BUS
Legend
Description
Two-module flush-mounted control equipped with four buttons and a two-colour LED.
The LEDs can be controlled/switched off with the button on the control. The device can
drive a single actuator for single or double loads or two actuators for single loads or for
independent double loads.
The device can be installed in a My Home system and use the physical or virtual con-
figuration, or as a component of the Lighting Management system and use the specific
configuration types (Plug&go, Push&Learn, Project&Download).
Technical data
Power supply via SCS BUS: 27 Vdc
Operating power supply with BUS SCS: 18 – 27 Vdc
Current draw at maximum LED brightness: 6 mA for H4652/2
8.5 mA for L4652/2,
AM5832/2 and 067552
Dimensions
Overall size: 2 flush-mounted modules
The device can be configured in two ways:
- PHYSICAL CONFIGURATION, inserting the configurators in position.
- Configuration via the MYHOME_Suite software package, downloadable from www.
homesystems-legrandgroup.com: this mode has the advantage of offering many
more options than the physical configuration.
For a list of the procedures and their meanings, please refer to the instructions in this
sheet and to the "Function Descriptions" help section in the
MYHOME_Suite software
package.
Conguring My Home
The device performs the following functions:
1. LIGHT SWITCH
2. AUTOMATION CONTROL
3. PROGRAMMED SCENARIO ACTIVATION
4. PLUS PROGRAMMED SCENARIO ACTIVATION
See the following pages for the configuration procedures.
LED Adjustment
List of Functions
Basic control for
2 independent loads
