Switch control RF 1 gang
Radio control device for the control of an ON/OFF or Dimmer actuator or group of
actuators.
When controlling Dimmer actuators, it will only possible to switch the load on/off, but
not to adjust the power level (dimmer function).
Description
Power supply: No. 1 lithium battery 3 V, CR2032 type
Duration of the batteries: 5 years
Operating temperature: 5 – 45 °C
Technology: Radio 2.4 GHz standard ZigBee®
Capacity: 150 m free field, 15 m in rooms with
concrete walls
Technical data
Size: 2 modules
Dimensional data
Radio system: “Push and Learn” self-learning type.
Wire system: if the device is integrated in the BUS Automation system using the Gateway
SCS/Zigbee interface it will be possible to manage BUS actuators, which address must be
configured by connecting the configurators to the A, PL, and M housings as indicated.
A = Room
PL = Light Point
M = Operating mode
Configuration
Configurator in M Function
0 Cyclical ON/OFF
1 ON timed - 1 minute
2 ON timed - 2 minutes
3 ON timed - 3 minutes
4 ON timed - 4 minutes
5 ON timed - 5 minutes
6 ON timed - 15 minutes
7 ON timed - 30 minutes
8 ON timed - 500 ms
O/I Cyclical ON/OFF
OFF OFF control
ON ON control
PUL monostable ON/OFF control (key)
Legend

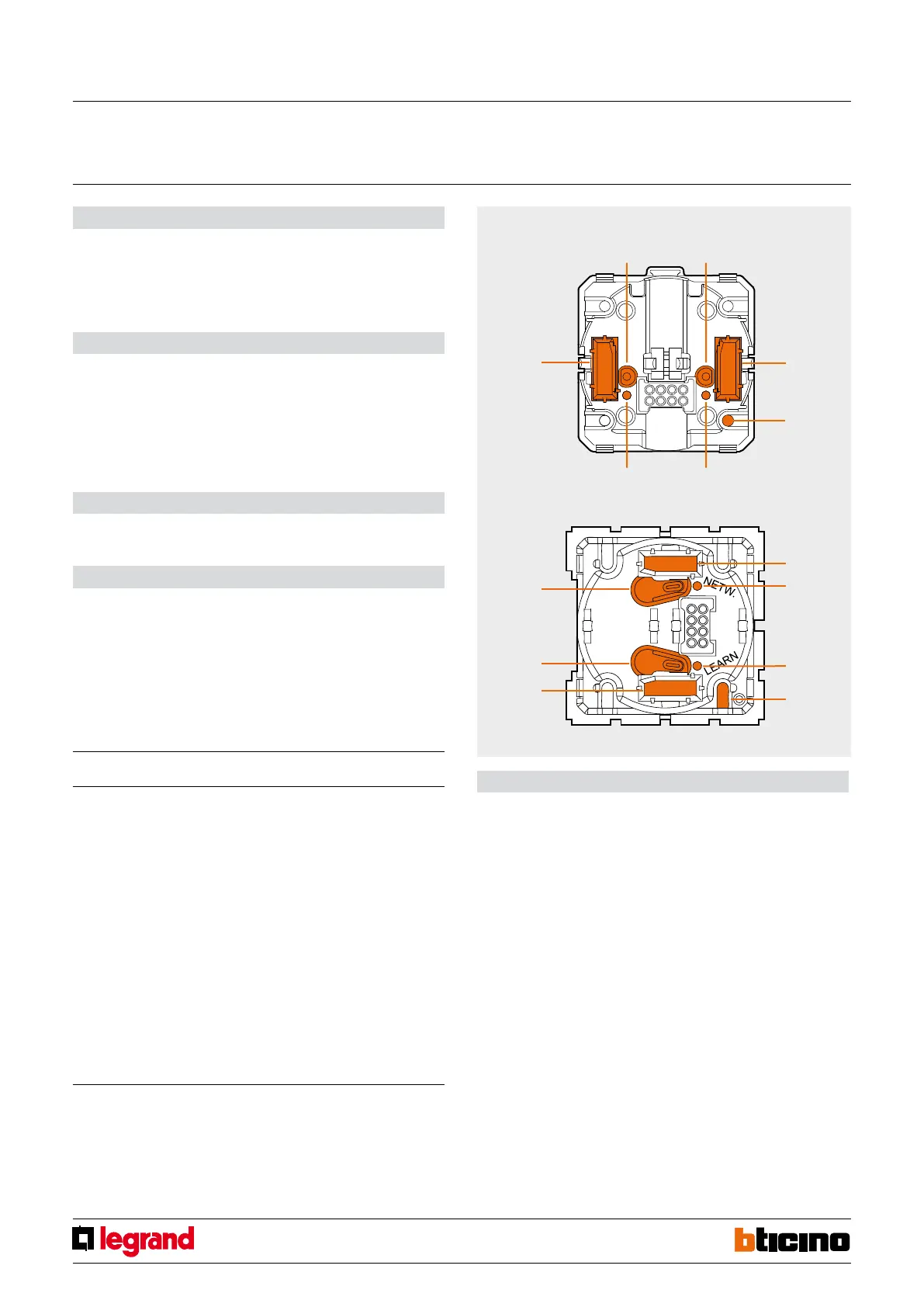

1. LEARNING key
2. NETWORK key
3. Configurator socket (A,PL)
4. ON/OFF key
5. NETWORK LED
6. LEARNING LED
7. Configurator socket (M)
Front view
MQ00406-c-EN
