Description
Control device to activate, create and change 4 scenarios stored in the scenario module
item F420 or activate the ones saved in the scenario programmer MH200N.
Technical data
Power supply via SCS BUS: 27 Vdc
Operating power supply with SCS BUS: 18 – 27 Vdc
Current draw: 9 mA
Dimensions
Size: 2 flush-mounted modules
Scenario control
MQ00288-c-EN 09/06/2014

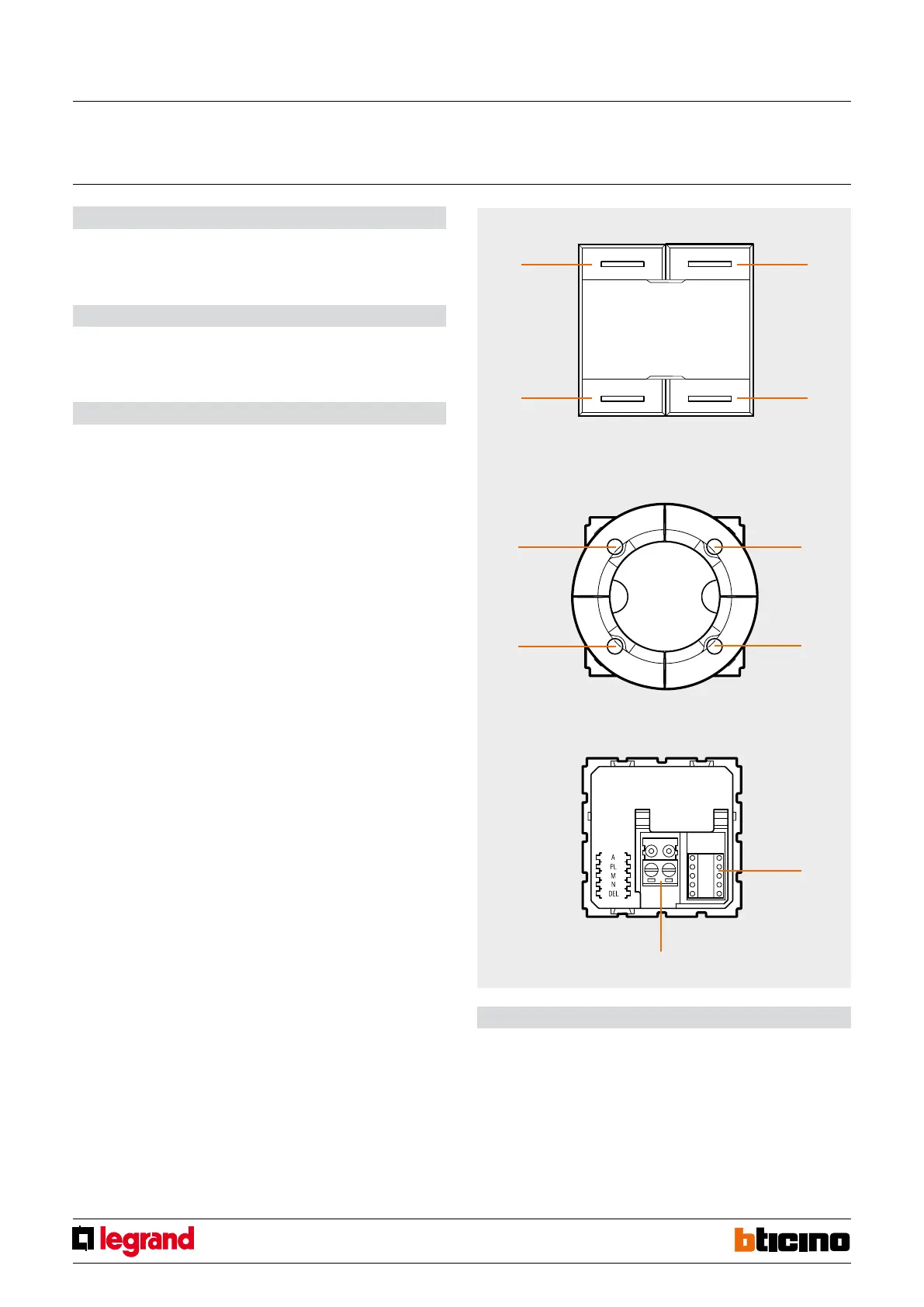

1. Button 1
2. Button 2
3. Button 3
4. Button 4
5. Configurator socket
6. BUS
