177
2
3
456
7
1
8
10
9
H4661M2 LN4661M2
AM5861M2067557
Use
Flush-mounted two-module actuator device with 2 internal relays with 3 buttons and 3
two-colour LEDs, designed to work in conjunction with specific control devices for rolling
shutters (UP, DOWN and lath position).
However, the actuator can also be used with all other control devices, although in that
case the Preset function will not be available.
Preset function:
In addition to the Monostable and Bistable UP/DOWN operating modes, by pressing
the STOP pushbutton the actuator enables moving the shutter into a specific position
(Preset). When operating in this mode, the Preset LED will light up.
The device is supplied with 9 preset positions, which can be selected by connecting the
numeric configurators 1 to 9 to the “Pre” socket on the back of the actuator.
IT is also possible to set a different position as required by the user; for the configuration
modes see the next page.
The Preset function can also be managed using the Scenario Module (enabling of
scenarios with preset shutter positions). In this case take the shutter into the desired
position when saving the scenario.
Note: The scenario module must have been produced after week 29-2012.
Technical data
Power supply via SCS BUS: 27 Vdc
Operating power supply with SCS BUS: 18 – 27 Vdc
Max. current draw: 16 mA
Operating temperature: 0 – 40°C
Power/consumption of driven loads: 250 Vac – 2 A
Standards, Certifications, and Marks
• EN50090-2-2: Home and building electronic systems (HBES)
• EN50090-2-3: General functional safety requirements for products intended to be
integrated in HBES
• EN50428: Switches and related accessories for use in home and building electronic
systems (HBES)
Dimensional data
Size: 2 flush-mounted modules

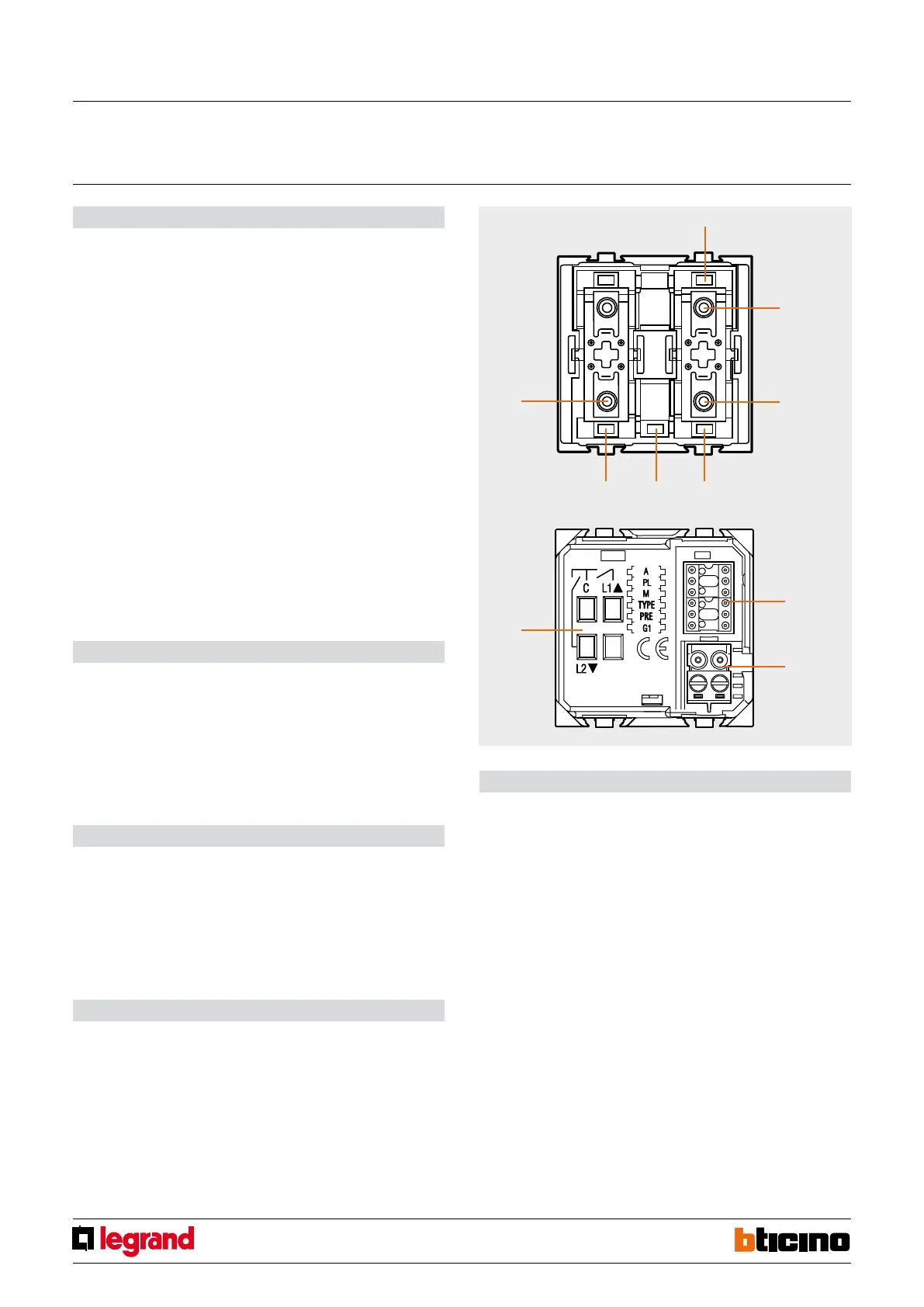

Legend
1. UP LED: orange (green + red) or purple (red + blue) when the shutter is moving up.
Green or blue when the shutter is still or moving down.
2. UP SHUTTER PUSHBUTTON
3. DOWN SHUTTER PUSHBUTTON
4. DOWN LED: orange (green + red) or purple (red + blue) when the shutter is moving
down. Green or blue when the shutter is still or moving up.
5. Push&Learn configuration and shutter position configuration pushbutton
6. Preset LED: ON orange (green + red) or purple (red + blue) when the shutter is
moving into the Preset position. Flashing during virtual configuration.
7. STOP button: Press when the shutter is still, to move it to the Preset position. Press
when the shutter is moving, to stop it at the current position.
8. Configurator socket (to be used only in My Home systems with physical
configuration)
9. BUS clamp
10. Clamps (3 x 2.5 mm
2
) for connection to the load
Front view
Rear view
Rolling shutter actuator
MQ00592-c-EN 19/06/2014
