067556 AM5851M2
H4671M2 LN4671M2
This device, with 4 pushbuttons and 4 two-colour LEDs at the front, is fitted with 2 inde-
pendent relays to control:
- 2 loads or 2 groups of loads that are independent;
- 1 single load (rolling shutter motor).
The actuator may also be configured for the management of the connected load, whilst
at the same time operating as a “control device” for the management of one or more
remote actuators, with operating modes typical of a 2-module basic control.
More specifically, after the configuration, it is possible to set the following modes of
operation:
1. Actuator for single load (lighting or shutter automation) with local control.
2. Actuator for 2 independent loads (lighting) with 2 local controls.
3. Actuator for 1 load (lighting) with local control by the left button and remote actuator
or scenario control by the right button.
4. Actuator for 1 load (shutter automation) with local control by the left button and re-
mote actuator or scenario control by the right button.

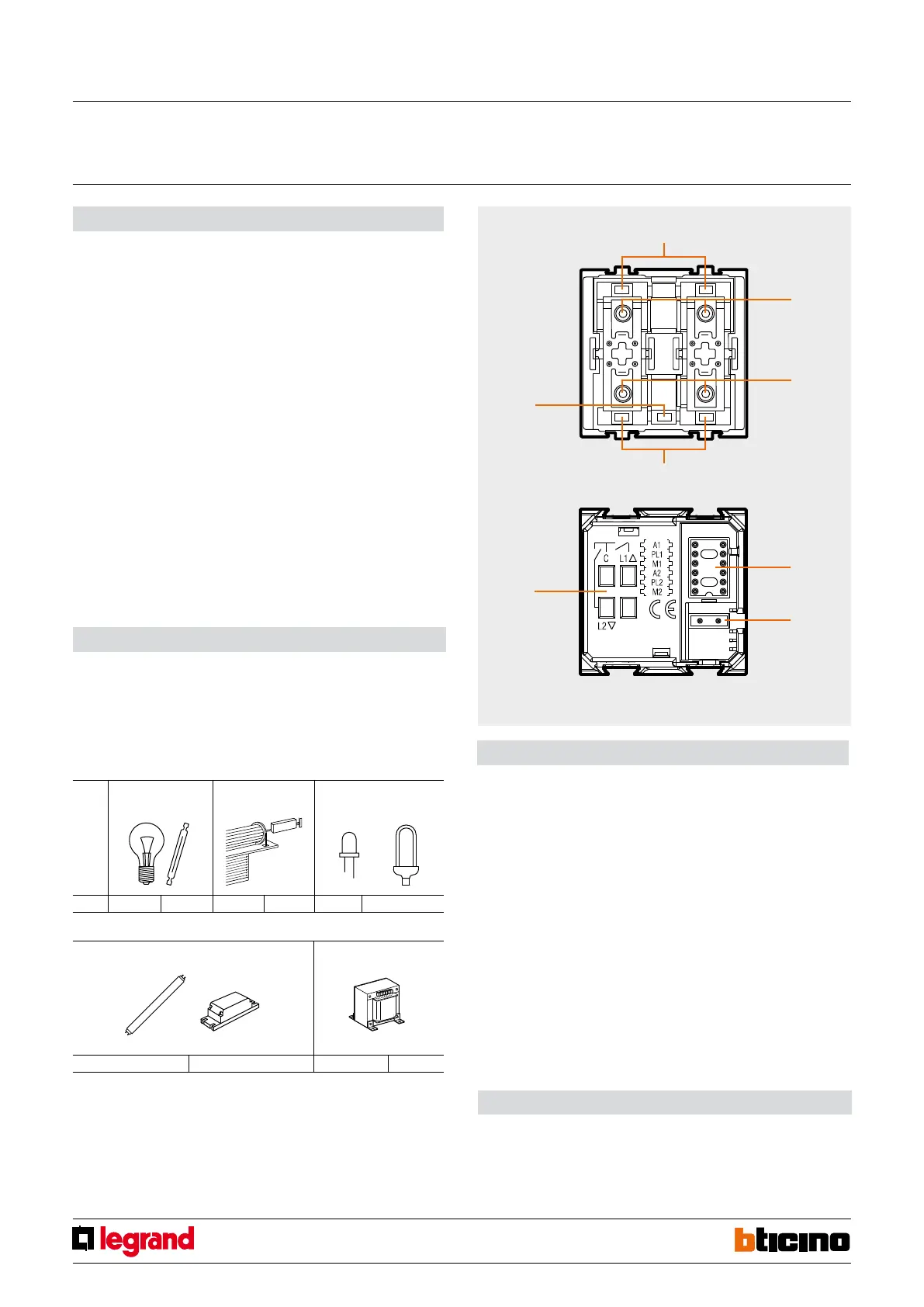

Description
Front
Rear
Legend
1. LED:
LIVING LIGHT: green with motor stopped, or orange (green + red) with motor in
operation
green with light OFF, and orange with light ON
AXOLUTE: blue with motor stopped, or blue + red with motor in operation
blue with light OFF, or blue + red with light ON
2. Top buttons
3. Bottom buttons
4. LED control/off button
5. Configurator socket (note that this must only be used in My Home systems with the
physical configuration)
6. BUS
7. Clamps (3 x 2.5 mm
2
) for connection to the load
Control/actuator
MQ00411-e-EN 19/06/2014
Power supply from BUS: 27 Vdc
Operating power supply with SCS BUS: 18 – 27 Vdc
Power consumption on standby: 14 mA max
Operating temperature: 0 – 40°C
Operating temperature: (-5) – (+45) °C
Power/consumption of driven loads:
Technical data
LED lamps
Compact fluorescent lamps
230 Vac 460 W 2 A 460 W 2 A 70 W Max. 2 lamps
Geared motors for rolling
shutters
Incandescent lamps -
Halogen lamps
Linear fluorescent lamps - Electronic transformers
70 W 0,3 A 2 A cosφ 0,5 460 VA
Ferromagnetic transformers
Size: 2 flush-mounted modules
Dimensions
