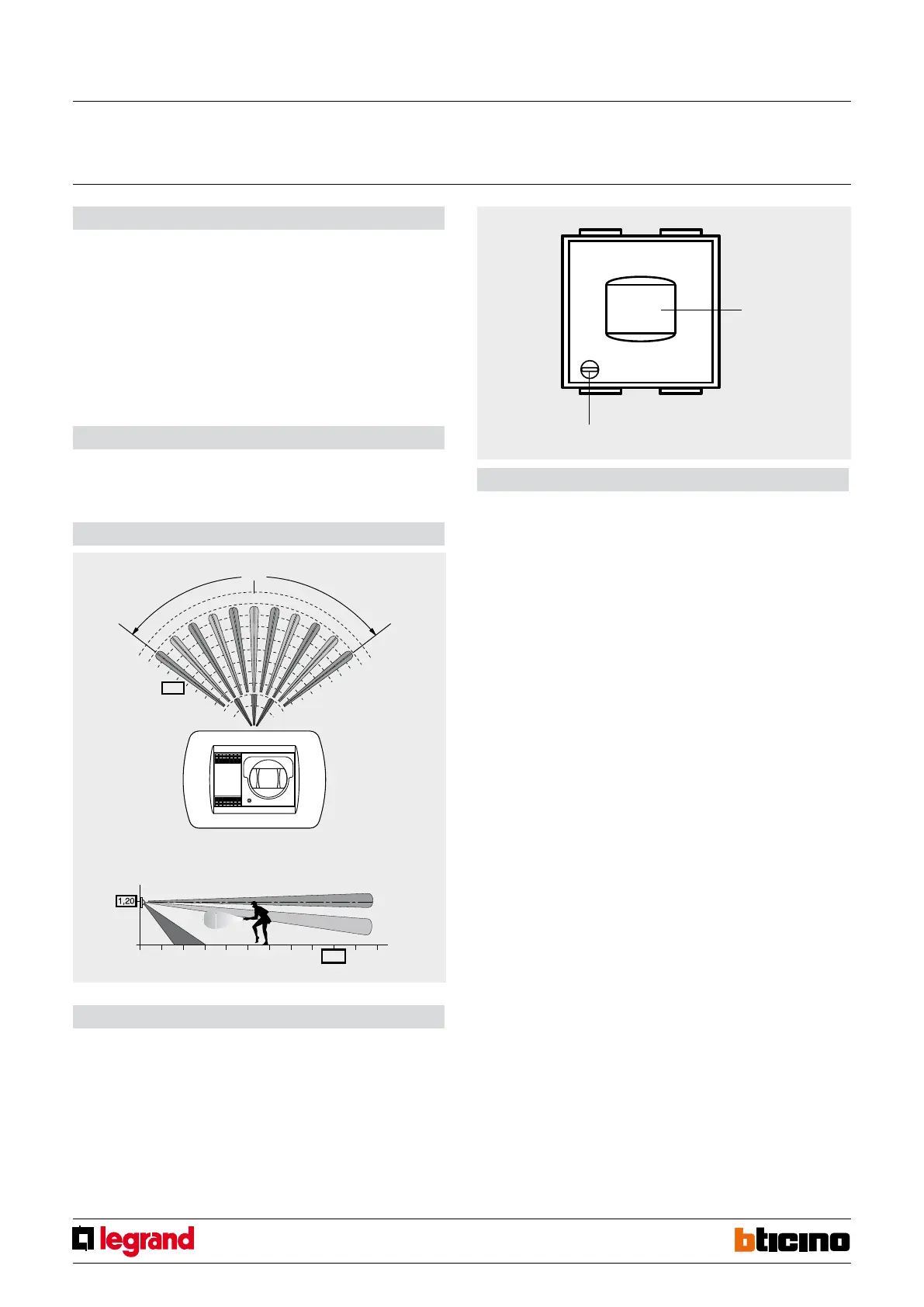

Passive IR detector
MQ00035-c-EN 28/04/2014
Description
The passive infrared detector is a volumetric detector with xed lens, sensitive to the
movement of warm bodies. The volume of the protected zone is divided into 14 beams
distributed on 3 levels. The detector works in two dierent ways: instantaneous or with
impulse calculation, in order to reduce the possibility of false alarms.
It can also be used in the automation system for timed ON/OFF functions, or to activate
auxiliary controls.
Related articles:
682 66 (White Cover)
685 66 (Titanium Cover)
Legend
1 - Fresnel lens;
2 - Alarm warning LED.
Technical data
- Power supply from SCS BUS: 27 Vdc
- Max. absorption: 4.5 mA
- Operating temperature: 5 – 40°C
Dimensional data
Size: 2 modules
Covering range
