0672 36
HA/HB4597
L/N4597N
078444
079144
665102
Switch control RF 2 gangs
Radio control device for the control of two separate or two groups of ON/OFF or Dimmer
type actuators.
When controlling Dimmer actuators, it will only possible to switch the load on/off, but
not to adjust the power level (dimmer function).

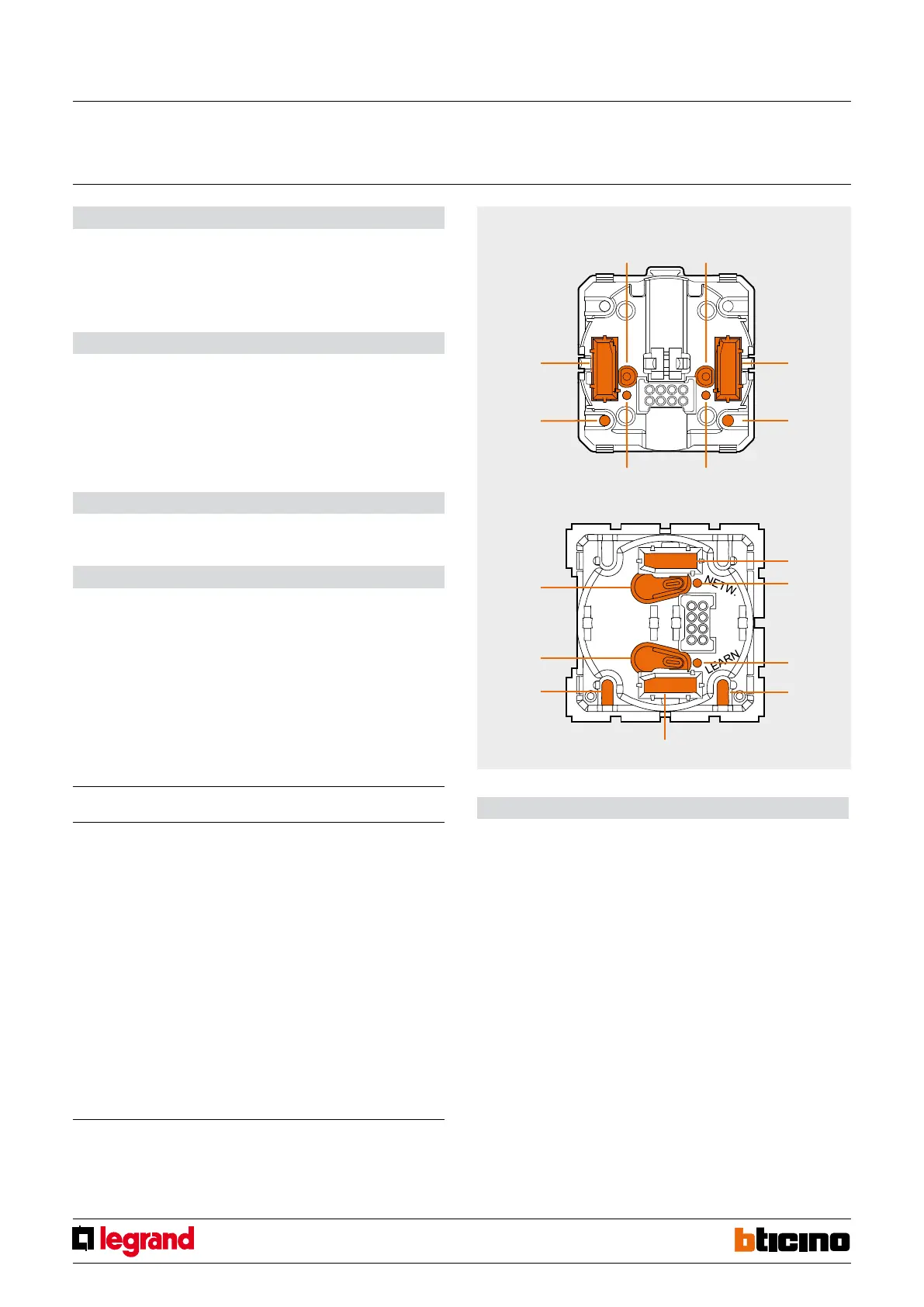

Description
Legend
1. LEARNING key
2. NETWORK key
3. Configurator socket (A, PL1)
4. ON/OFF key No. 2
5. NETWORK LED
6. LEARNING LED
7. ON/OFF key No. 1
8. Configurator socket (PL2, M)
Power supply:
No. 1 lithium battery 3 V, CR2032 type
Duration of the batteries: 5 years
Operating temperature: 5 – 45 °C
Technology: Radio 2.4 GHz standard ZigBee®
Capacity: 150 m free field, 15 m in rooms with
concrete walls
Technical data
Size: 2 modules
Dimensional data
Radio system: “Push and Learn” self-learning type.
Wire system: If the device is integrated in the BUS Automation system using the
Gateway SCS/Zigbee interface it will be possible to manage BUS actuators, which
address must be configured by connecting the configurators to the A, PL1, PL2, and M
housings as indicated.
A = Room
PL1 = Light Point N°1
PL2 = Light Point N°2
M = Operating mode (see table)
Configuration
Front view
Configurator in M Function
0 Cyclical ON/OFF
1 ON timed - 1 minute
2 ON timed - 2 minutes
3 ON timed - 3 minutes
4 ON timed - 4 minutes
5 ON timed - 5 minutes
6 ON timed - 15 minutes
7 ON timed - 30 minutes
8 ON timed - 500 ms
O/I Cyclical ON/OFF
OFF OFF control
ON ON control
PUL Monostable ON/OFF control (key)
MQ00407-c-EN
