H4671/1 L4671/1
AM5851/164390
Description
Device to control a single load with a built-in electromechanical relay.
Technical data
Power supply via SCS BUS: 27 Vdc from the BUS
Operating power supply with BUS: 18 – 27 Vdc
Current draw: 16.5 mA
Power/Consumption of driven loads:

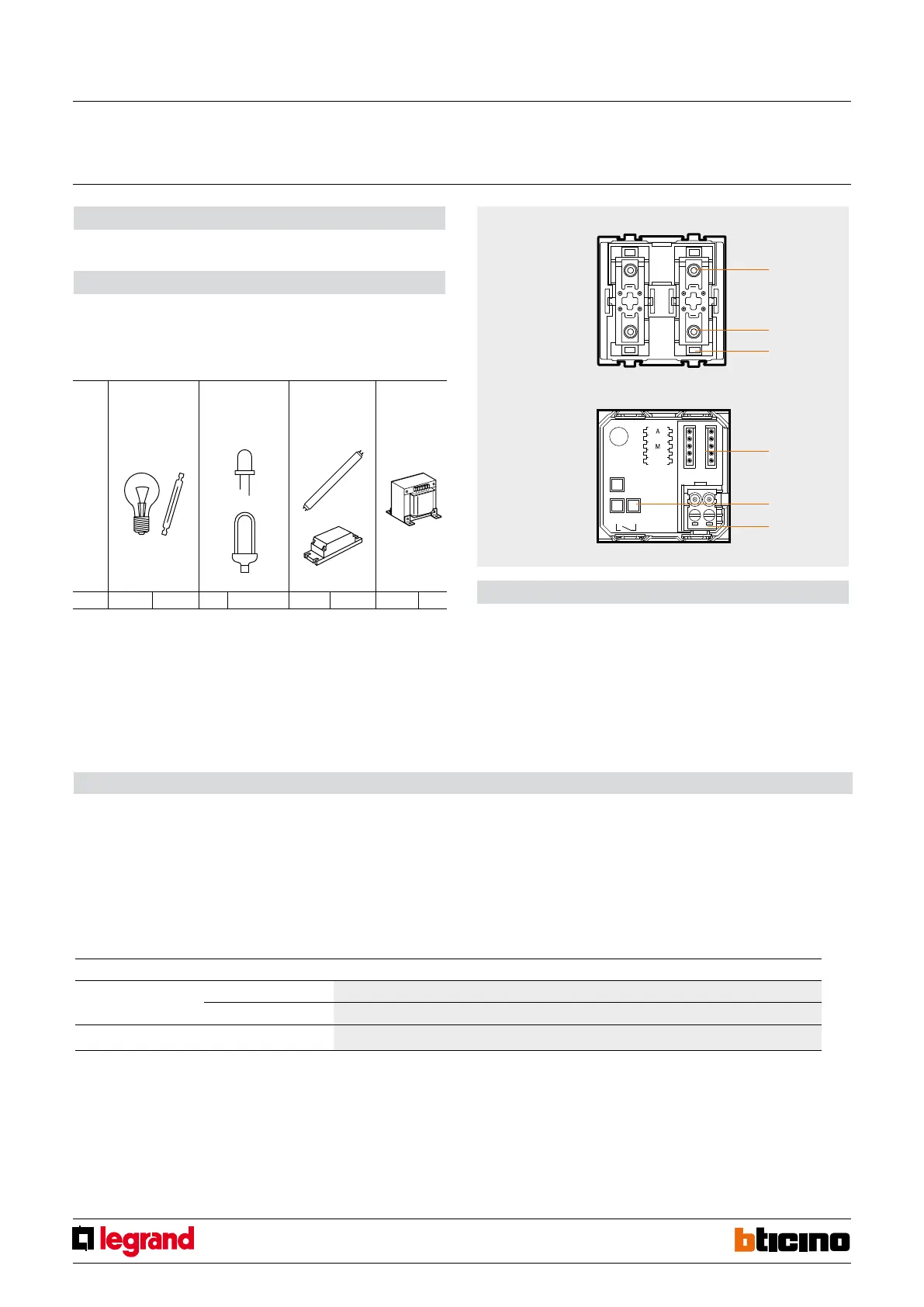

Front view
Rear view
Legend
1. Top button
2. Bottom button
3. LED
4. Congurator socket
5. Power line (max 2x2.5 mm
2
)
6. BUS
Incandescent lamps
Halogen lamps
LED lamps
Compact uorescent
lamps
Linear fluorescent lamps
Electronic transformers
Ferromagnetic
transformers
230 Vac 1380 W 6 A 150 W Max. 3 lamps 150 W 0.65 A 2 A cosφ 0.5 460 VA
Dissipated power with max. load: 0.9 W
Size: 2 ush-mounted modules
Flush-mounted 1-relay actuator
MQ00072-e-EN 05/06/2014
If the device is installed in a My Home system it can be configured in two ways:
- PHYSICAL CONFIGURATION, inserting the configurators in position.
- Configuration via MYHOME_Suite software package, downloadable from
www.homesystems-legrandgroup.com.
For a list of the procedures and their meanings, please refer to the instructions in
this sheet and to the "Function Descriptions" help section in the
MYHOME_Suite software package.
Configuration
1.1 Addressing
Address type Virtual configuration (MYHOME_Suite) / Physical configuration
Point-to-point Room 1-9
Lighting point 1-9
Group
G1, G2=0-9
