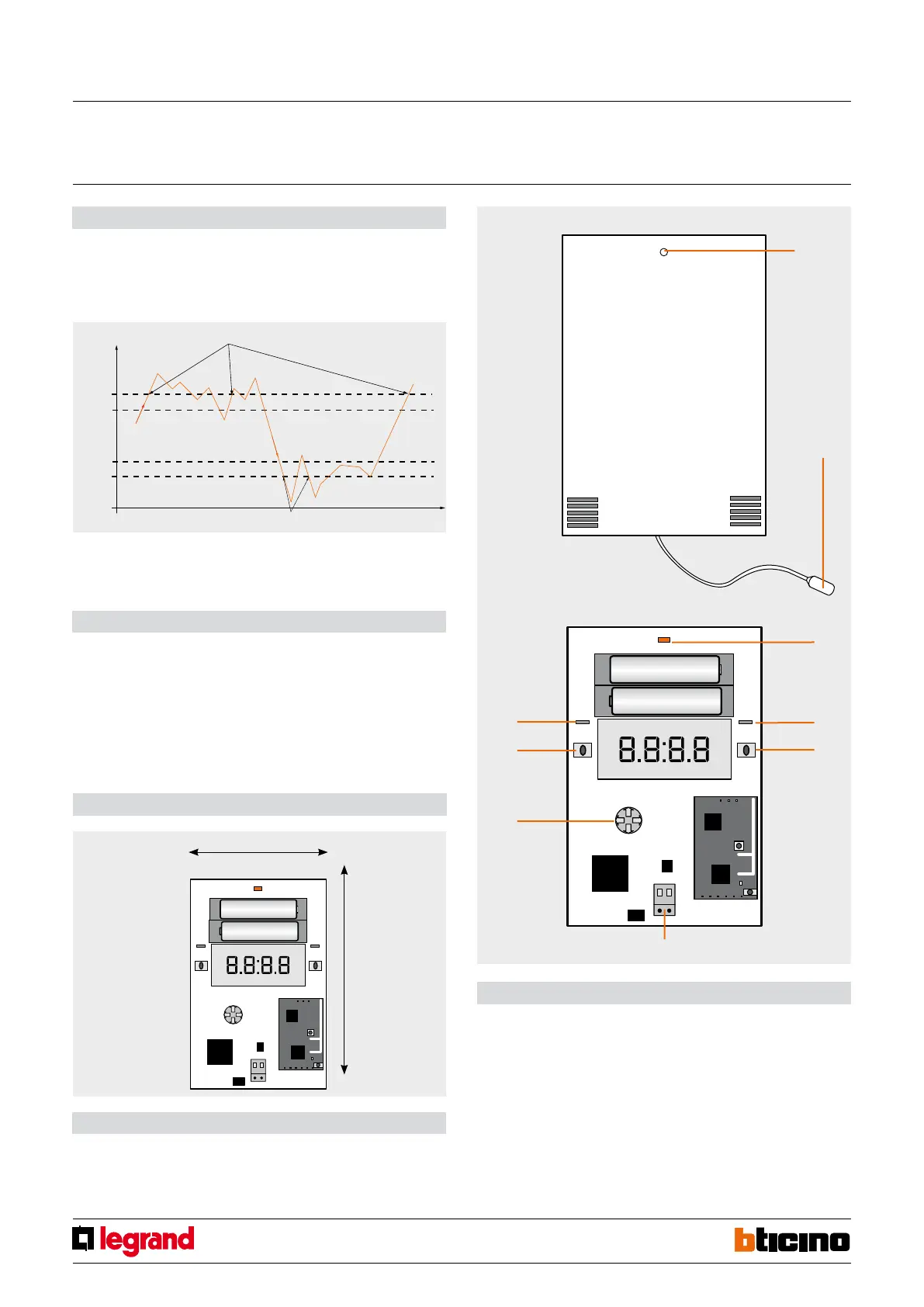

Wireless temperature sensor RF ZigBee surface mounting
Front view
T1
T2
Internal view
Device capable of activating several actuators (scenarios) based on the measured
temperature.
It is possible to manage up to 2 scenarios: the first activates when the temperature falls
below a T1 level, the second when the temperature exceeds a T2 level.
Description
Power supply: No. 2 batteries, 1.5 V AAA type
Duration of the battery: 2 years
Measured temperature range: (-25) – (+ 40) ° C
Tripping threshold: 1° C
Precision: ±0.5 °C
Operating temperature: 0 – 40 °C
Technology: Radio 2.4 GHz standard ZigBee®
Capacity: 150 m free field, 15m in rooms with concrete walls
Technical data
Legend
1. Battery exhausted LED
2. Measurement probe
3. LEARNING LED
4. LEARNING key
5. Probe connection clamp
6. Configuration menu navigation joystick
7. NETWORK key
8. NETWORK LED
The sensor is battery powered, it features an LCD display for the display of the measured
temperature, and a probe with ±0.5°C precision tolerance. It can be easily wall mounted
using screws.
Configuration
Configuration of the ZigBee network: “Push and Learn” self-learning type. For the
association of the scenarios that can be enabled based on the temperature measured
refer to the installation manual supplied with the sensor.
Dimensional data
activation of scenario 2
Threshold
Threshold
temperatures
activation of scenario 1
MQ00494-b-EN 04/07/2013
