168
BUS/SCS
067226 HD/HC/HS4658
L/N/NT4658N
574048
574098 AM5658
Configurator on T Lights timer in minutes
No configurator 15
1 0.5
2
1
3 2
4 5
5 10
6 15
7 20
8 30
9 40
Configurator on S Sensitivity
No configurator Low
1 Medium
2
High
3 Very high
Configurator on D Sensitivity in lux
No configurator 300
1 20
2
100
3 300
4 500
5 1000
1) Duration of the lights timer depending on the configurator on T:
2) Sensitivity of the PIR movement detector depending on the
configurator on S:
3) Sensitivity of the lights sensor depending on the configurator on D:
Keep the lenses clean.
Clean the surface with a cloth.
Do not use: acetone, detergents for removing tar, or trichloroethylene.
Maintenance using the following products: - Hexane (En 60669-1)
- Methylated spirit
- Soapy water
- Diluted ammonia
- Bleach, diluted 10%
- Glass detergents
Maintenance
PIR+US ush-mounted SCS Green Switch
MQ00473-f-EN 09/06/2014

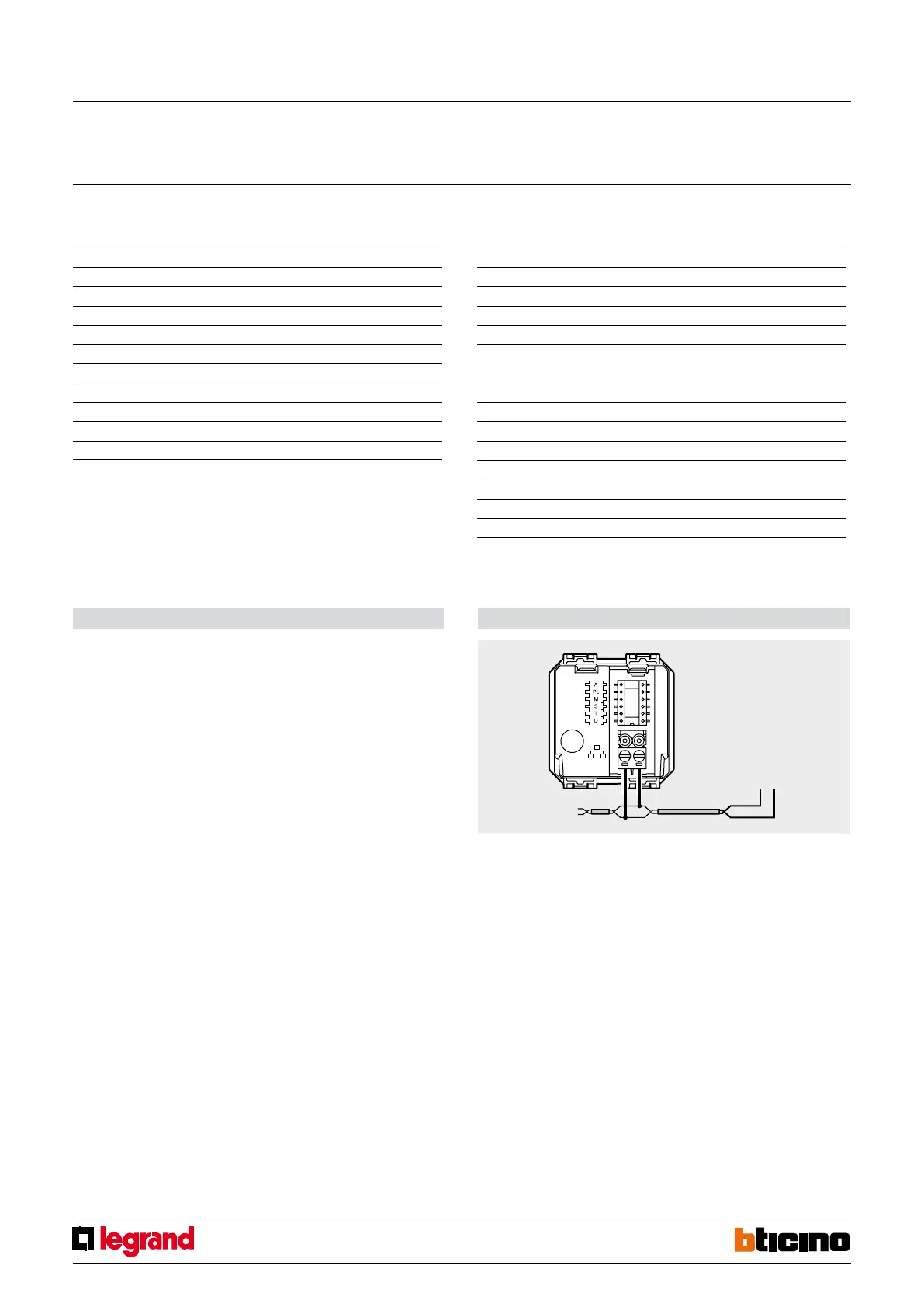

Wiring diagram
