170
574046
574096
067225
AM5659
L/N/NT4659N
HD/HC/HS4659

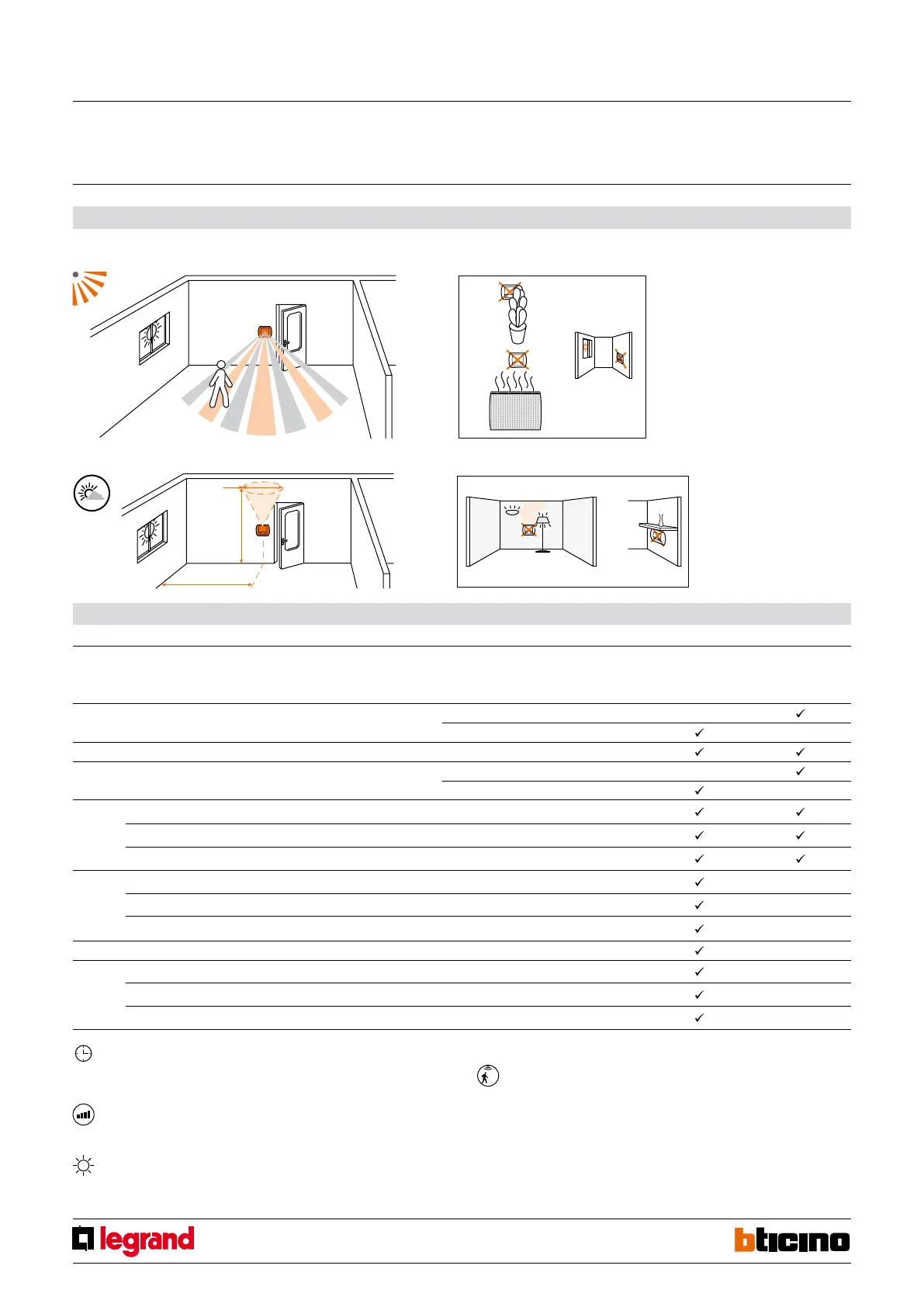

Positioning the detector
Installation
Position the sensor so
that it is not affected by
the artificial light already
present in the room.
1 m
2.5 m
≥ 2.5 m
PIR ush-mounted SCS Green Switch
MQ00474-e-EN 09/06/2014
Settings
Sensor parameters Default value Adjustable parameters Configuration remote control
88230 88235
BMSO4001 BMSO4003
Time delay 15 mn
3,5,10,15,20 min
−
30s - 255 h 59 min 59s
−
Sensitivity PIR (very high) Low, medium, high, very high
Brightness threshold 300 lux
20, 100, 300, 500, 1000 lux
−
0 - 1275 lux
−
Operating
mode
Auto Not active ON/OFF
Walkthrough ON ON/OFF
Eco Not active ON/OFF
Detection
mode
Initial PIR Cannot be modified
−
Holding PIR Cannot be modified
−
Retrigger PIR PIR/OFF
−
Alarm Not active ON/OFF
−
Advanced
mode
Calibration − 0 - 99995 lux
−
Adjustment Not active ON/OFF
−
Contribution of light Automatic Automatic - 1275 lux
−
Time delay
The period of time after which the load is switched off if no movement is detected.
The time restarts whenever the sensor detects a movement.
Sensitivity
Adjustment of the sensitivity of the detection technology used.
Brightness threshold
Lighting level below which the sensor activates the load and above which it
switches it off.
Operating mode:
Auto
The load is automatically switched on:
- upon detection of a movement if the level of natural light is insufficient.
The load is automatically switched off:
- if no movement is detected at the end of the set time delay + standby time.
- or if the level of natural light is insufficient (adjustment on).
Each new detection causes automatic switching on if the light is insufficient.
