173
BUS/SCS
574046
574096
067225
AM5659
L/N/NT4659N
HD/HC/HS4659
Configurator on T Lights timer in minutes
No configurator 15
1 0.5
2
1
3 2
4 5
5 10
6 15
7 20
8 30
9 40
Configurator on S Sensitivity
No configurator Low
1 Medium
2
High
3 Very high
Configurator on D Sensitivity in lux
No configurator 300
1 20
2
100
3 300
4 500
5 1000
1) Duration of the lights timer depending on the configurator on T:
2) Sensitivity of the PIR and US movement detector depending on the
configurator on S:
3) Sensitivity of the lights sensor depending on the configurator on D:
Keep the lenses clean.
Clean the surface with a cloth.
Do not use: acetone, detergents for removing tar, or trichloroethylene.
Maintenance using the following products: - Hexane (En 60669-1)
- Methylated spirit
- Soapy water
- Diluted ammonia
- Bleach, diluted 10%
- Glass detergents
Maintenance
When using the configurators it is not possible to distinguish between the sensitivity of
the detection technologies, both of which will have the value set by the configurator S.
PIR ush-mounted SCS Green Switch
MQ00474-e-EN 09/06/2014

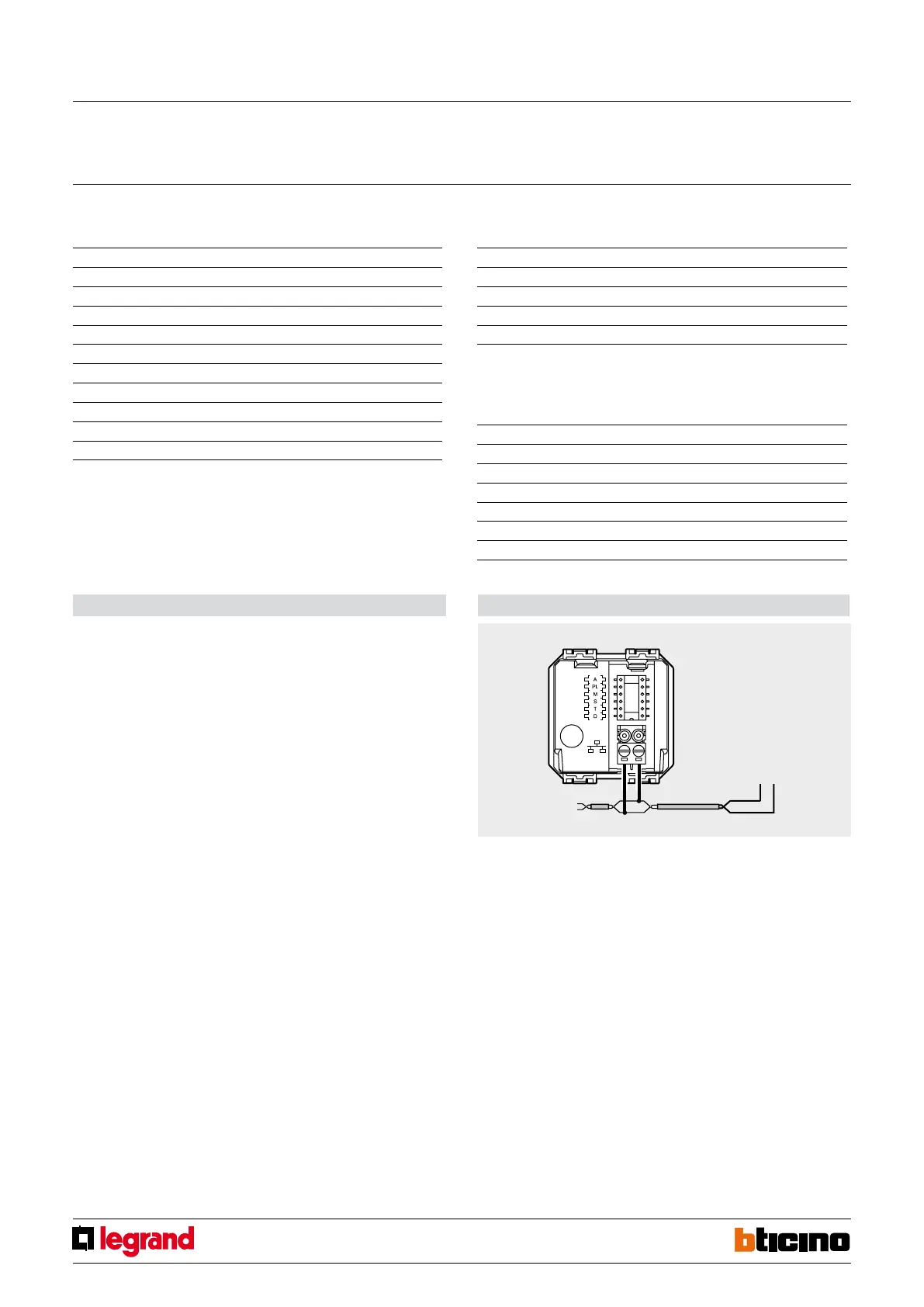

Wiring diagram
