Conguration
Pairing detectors
1. Switch the system to “maintenance” mode.
2. Press the programming pushbutton of the radio receiver for ve seconds, until the red
LED comes on.
2. Press the tamper contact twice.
4. If the pairing of the device has been performed correctly, the red LED of the receiver
will go o. If this does not happen, repeat the procedure from step 3. If the LED
ashes, it means that the device memory is full.
5. To pair other devices, repeat from step 2.
6. Close the sensors to deactivate the tamper.
7. Perform self learning of the system from the central unit.
8. Exit “maintenance” mode.

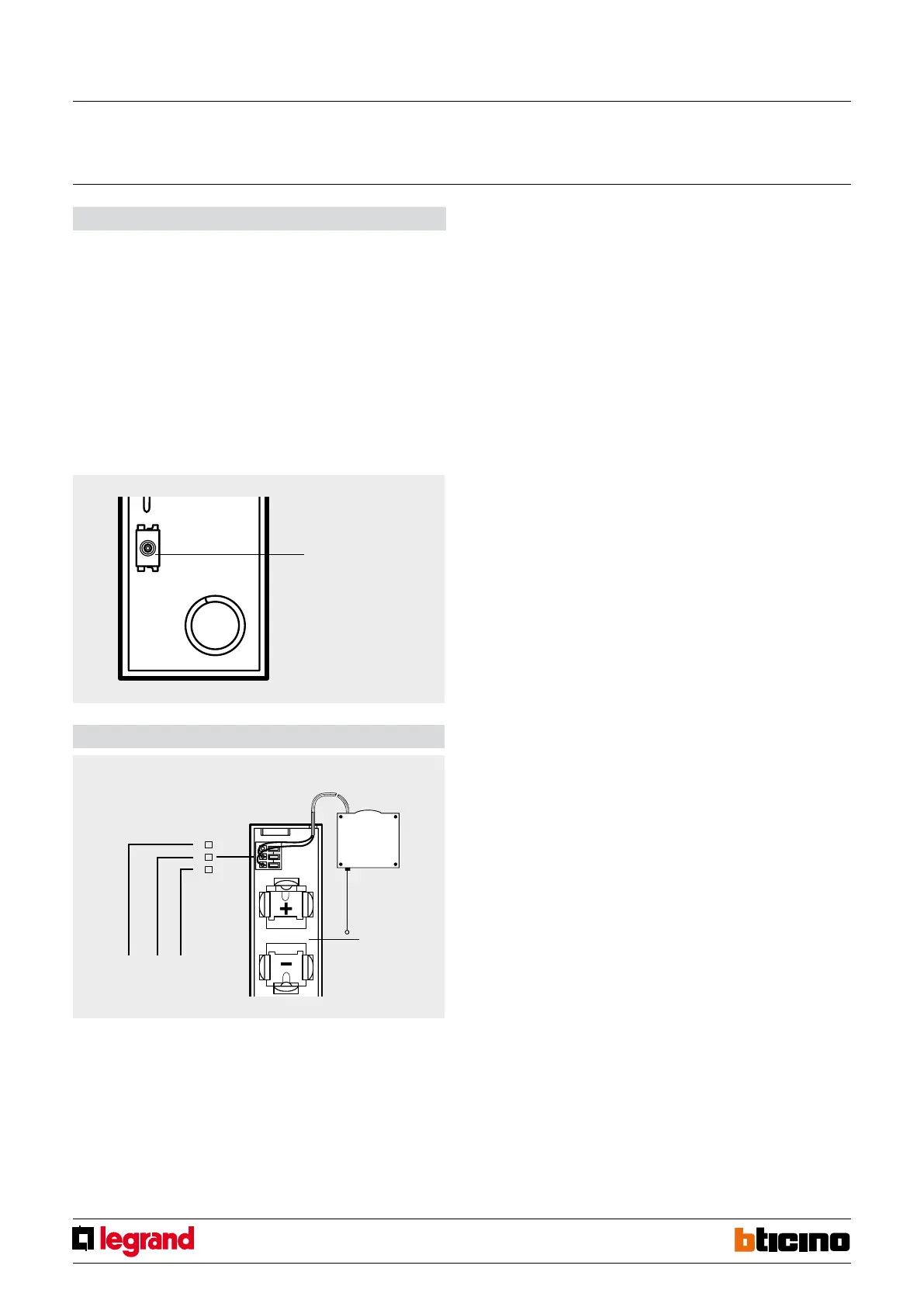

Wiring diagram
Cancelling detectors
1. Switch the system to maintenance mode.
2. Remove the power supply from the radio receiver.
3. Press and hold the programming pushbutton while reconnecting the power supply
to the radio receiver.
4. After 5 seconds the LED ashes orange. If the pushbutton is released at this time, only
the remote controls are cancelled. After 10 seconds the LED starts ashing quickly. If
the pushbutton is released now, only the sensors are cancelled.
5. After releasing the pushbutton, the LED becomes xed orange. When the LED goes
o, cancellation has been completed.
6. Perform self-learning of the system from the central unit and exit “maintenance”
mode.
Tamper/learning
NOTE: do not extend the cable of the detector.
Rope rolling
shutter detector
Red
wire
Green
wire
Black
wire
battery
WARNING: For correct operation of the device the rolling shutter detector must be
activated within 12 hours from the moment the device starts operation.
Radio rolling shutter
opening detector
