Legend
1 - Battery housing;
2 - Tamper line (see note);
3 - T1 local tamper;
4 - Reset key;
5 - Serial connector for PC programming;
6 - Burglar alarm BUS;
7 - ON/OFF slide switch;
8 - Telephone line OUT;
9 - Telephone line IN.
NOTE: The central unit is supplied with the clamps (-/T1) of the Tamper line shorted for the use
of the T1 local tamper (wall mounted installation on metal base).
Conguration
The central units do not need congurators. The functions can be set directly on the
device itself (keypad and display), or using the appropriate software, TiSecurity POLYX.
For detailed information refer to the corresponding manuals supplied with the products.
Software conguration
The program can be used to easily customise all parameters of the Central unit. It is
possible to receive the current conguration from the Central unit, change it and send
any changes made to the Central unit, save the conguration to a le for subsequent
modication, or save it as a backup copy.
For further information refer to the software manual supplied with the central unit.
Technical data
- Power supply from SCS BUS: 27 Vdc
- Max. absorption: 55 (stand by) – 90 mA
- Operating temperature: 5 – 40°C
- Installation: wall mounted
Dimensional data
Size (H,L,D): 128x125x25 mm

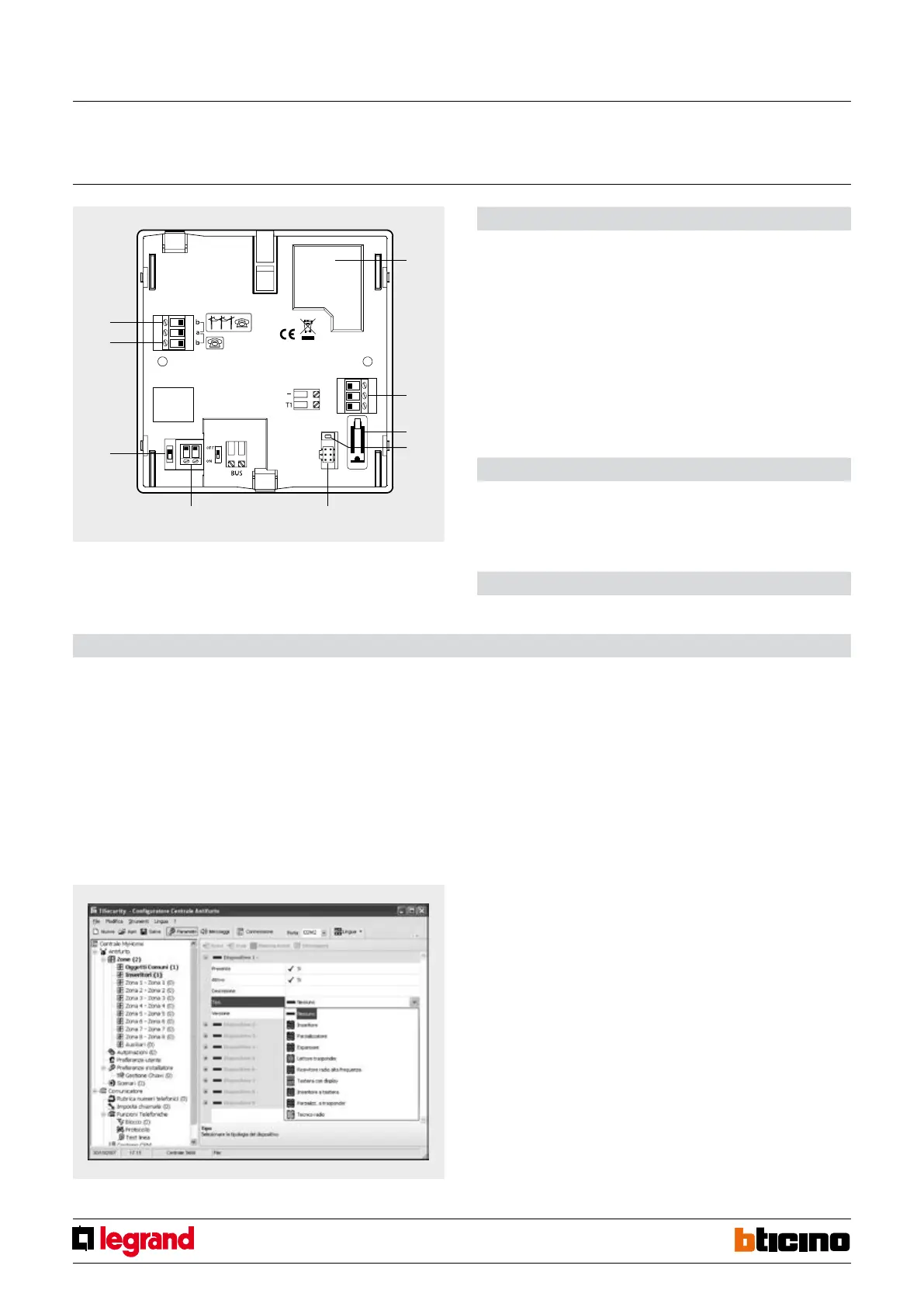

Rear view
Ademco Contact ID functionality
Ademco contact ID is a particular communication protocol operating on a telephone line
with DTMF touch tone. Using this protocol, it is possible to set a one-way communication
between the burglar-alarm central units and the vigilance bodies. In this way, vigilance
bodies can receive information concerning the type of event/alarm generated and, if
available, the details of the peripheral from where it generated.
Events that can be managed using the Ademco Contact ID
The Ademco Contact ID events managed by the central unit are the following:
Relating to the burglar-alarm system:
- Anti-panic alarm
- Anti-burglary alarm
- General intrusion alarm
- Tamptest (device interconnection alarm)
- Device tampering alarm
- No power supply
- System battery faulty
- Activation / deactivation / cancellation*
- Sensor deactivation
- Periodical functionality test (routine check of the telephone line and the installation)
NOTE *: cancellation is the silencing of an alarm following the disarming of the system itself.
In this case the event is sent to the vigilance body, which can therefore check if it’s been
caused by a tampering attempt.
Relating to the technical alarms:
- Fire alarm (AUX=8)
- Gas leak alarm (AUX=1)
- Freezer alarm (AUX=2)
- Flooding alarm (AUX=3)
- Remote assistance alarm (AUX=9)
- Auxiliary device tampering (Z=9)
For every event, where required, the origin of the alarm is also forwarded, in terms of zone
and device.
Advanced central unit
with telephone communicator
