LEGRAND 3440 - Page 245

236
2
1
34
5
PWRTEL1 TEL2
ANTENNA
USB
6 7 8 9
Activity
GSM
Status

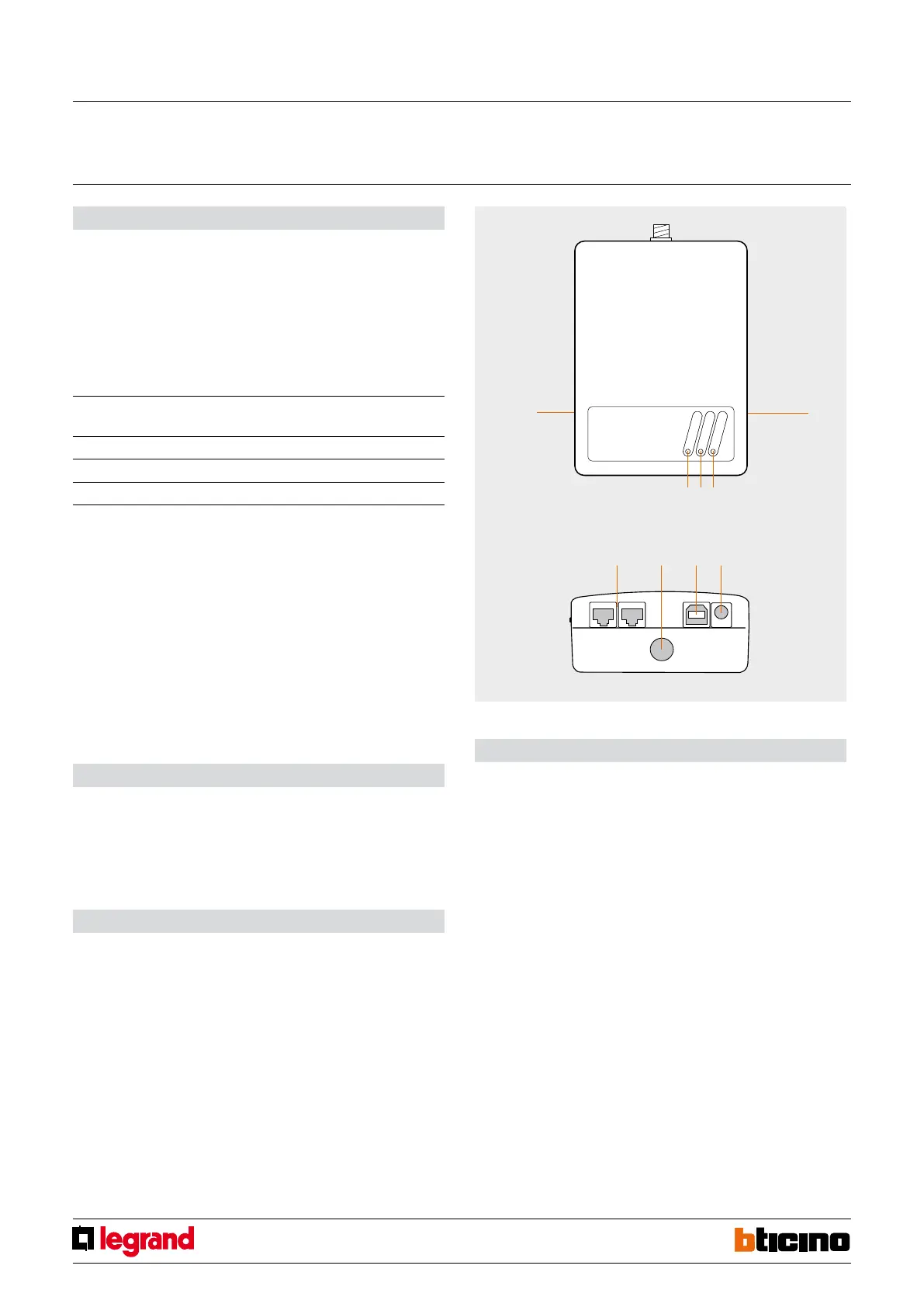

3489GSM
Description
This device, thanks to the GSM telephone network, enables using the functions of the
PSTN telephone communicator, which equips the burglar-alarm central units, even in
places where the analog telephone network is not available or it is not cost-eective
to activate it.
The gateway is connected to the "Phone Line OUT" terminal of the burglar-alarm central
unit and simulates a PSTN analog telephone line, forwarding alarm calls via the GSM
network to the numbers stored in the central unit.
3 LEDs indicate the operating status of the gateway after powering up:
The device, regardless of whether there is an alarm central unit, can also be used for
telephone or fax devices if there is no analog telephone line.
Main functions:
- conversion of the quad-band GSM telephone line into PSTN;
- back-up battery for operation in the event of the main power supply failing;
- conguration of SMS warning messages;
- battery status notices via SMS (charge, low battery warning, main power failure
warning).
Technical data
Power supply: 12VDC / 1A via power supply unit provided
Operating temperature: from 0°C to +45°C
Back-up battery life: 3 hours (standby)
1.5 hours (talk time)
Legend
1. side socket for SIM
2. Status LED: indicates the operating status of the device.
3. GSM LED: gives information on the quality of the GSM signal.
4. Activity LED: indicates the back-up battery status.
5. side ON/OFF switch
6. RJ11 connectors for burglar-alarm central unit connection
7. SMA/f connector for GSM antenna
8. USB connector for updates
9. Power supply connector
Dimensions
Height: 115 mm
Width: 80 mm
Depth: 45 mm
front view
side view
GSM/PSTN gateway
BQ01000-a-EN 05/06/2014
LED
Correct
state
PIN prompt
Roaming /
Virtual Operator
Activity On On Flashing
GSM
Flashing / On
1
Off Flashing
Status Flashing On Flashing
1
Indicates the quality of the GSM signal.
