238
Contatto
043101
3512
043108
3513
043100
35113510PB
3510M
3510
Description

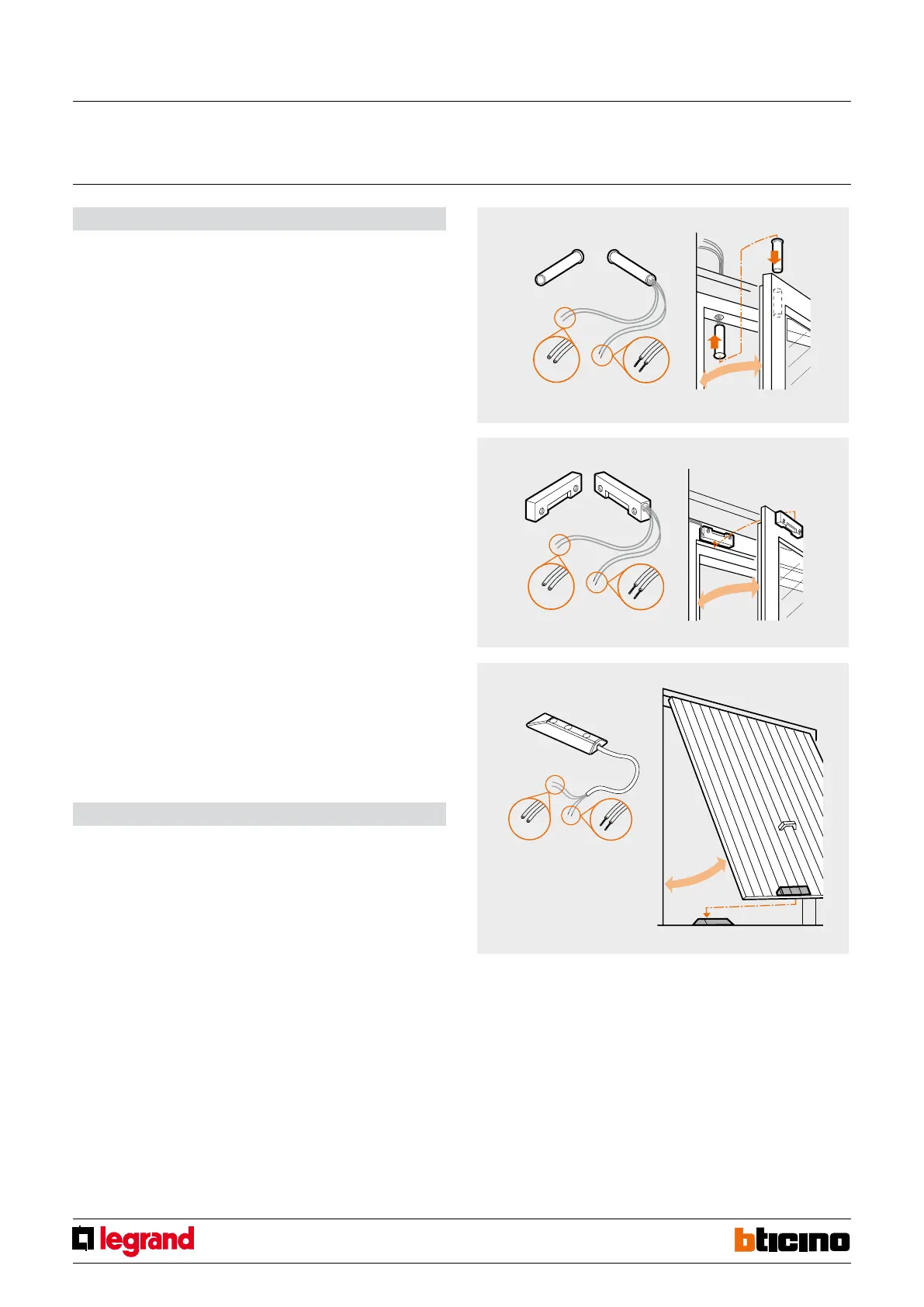

Magnetic sensors are normally installed on the top side of windows or doors, opposite
to the hinges, so that even with small forced openings, the distance created between
the two components (magnet and reed contact) will be enough to cause an alarm. The
electromagnetic sensors included in the oer are of the NC contact and protection line
type.
Flush mounted installation sensor, item 3510 and item 3510M
These cylindrical sensors have been purposely designed for Flush mounted installation,
as shown in the gure, for doors and windows with small sections. Sensor item 3510
is suitable for wooden doors and windows; sensor item 3510M is made of brass, has
high mechanical resistance, and is suitable of all types of non ferromagnetic doors and
windows (wood, PVC, aluminium).
Flush mounted installation sensor, item 3510PB
These cylindrical sensors of large diameter (20 mm) have an enhanced magnet, and have
been purposely designed for Flush mounted installation in reinforced doors, doors, and
large entrance doors, of any material.
Sensor for exposed installation, item 3511
When Flush mounted installation is not possible, this type of sensor may be used. White
in colour, and very small in size, it is designed for exposed installation. It can be used
both on wood and plastic, but also on non ferrous metal doors and windows, such as
aluminium ones. This magnetic sensor has a NC contact and protection line.
Sensors for doors made of ferrous metal, item 3512 and 3513
Made of metal, and intended for installation on ferrous metal doors and windows. The
item 3512 sensor is suitable for the protection of sliding or tilting garage doors. thanks to
its die-cast aluminium structure capable of withstanding the passage of vehicles, it can
be set on the oor. The connection cables are protected by steel sheathing.
item 3513 sensor can be used on sheet steel doors, such as those of cellars and
warehouses, and on ferrous metal doors and windows.
Contact
Conguration
Sensors do not require conguration.
Magnet Contact
Magnet
Contact
NC contact
Protection
line
Magnet
Contact
Protection
line
NC contact
Contact
Magnet
Magnet
Protection
line
NC contact
Contact
Magnetic contacts
