263
PROG
RESET
BUSC
_
ON
OFF
NANC
_
4
5
3
2
1
7
8
6
L4601
HD4601
N4601
HC4601
NT4601
HS4601

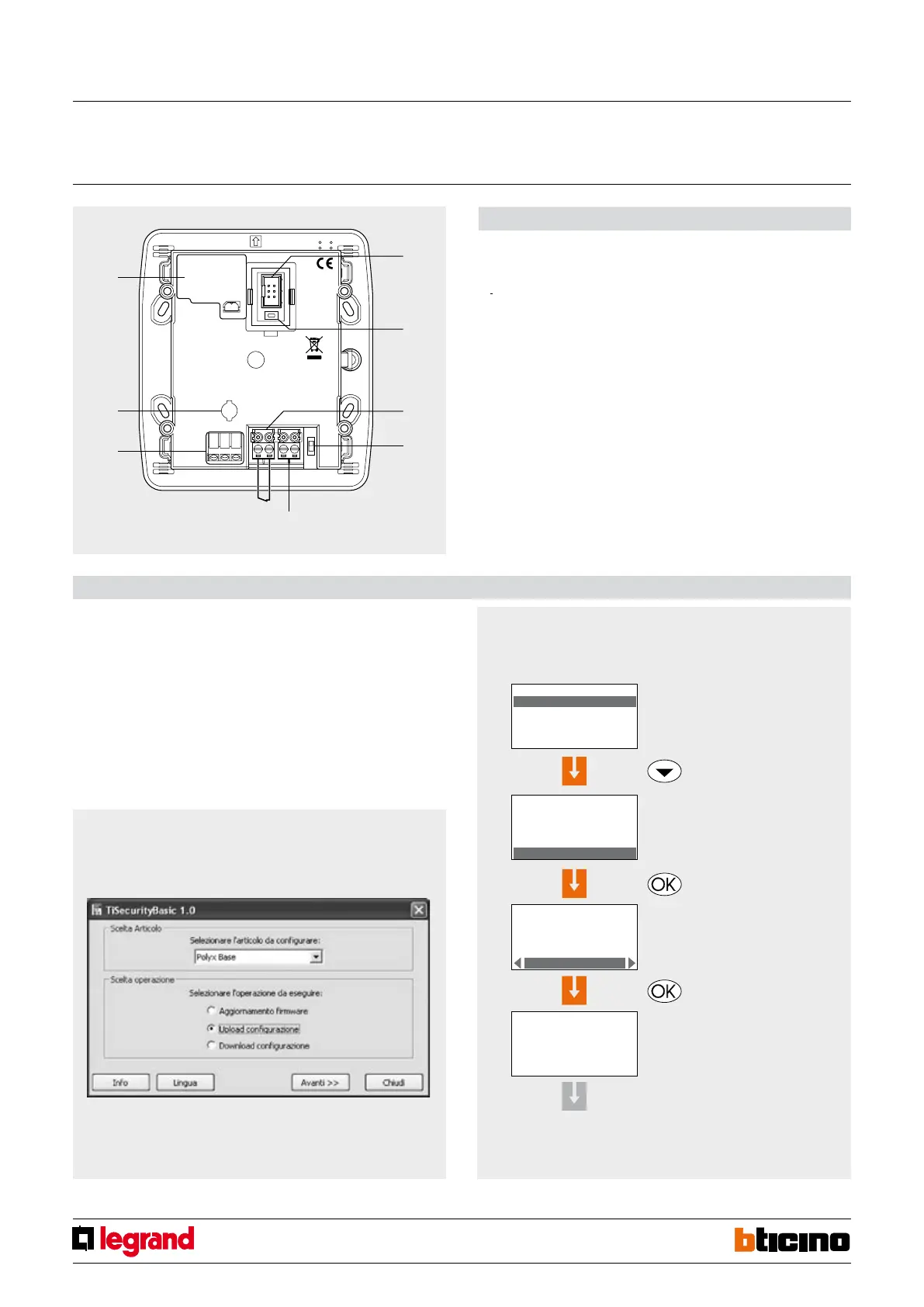

Legend
1 - Serial connector for the update of the rmware using a PC;
2 - Reset key;
3 - Local contact;
4 -
ON/OFF slide switch;
5 - Burglar alarm BUS;
6 - Relay for automation in case of alarm;
7 - Socket for tamper device item L4630;
8 - Battery housing.
Conguration
The central units do not need congurators.
The functions can be set directly on the device
itself (keypad and display), or using the appropriate software
TiSecurity Basic.
For detailed information refer to the corresponding manuals supplied with the products.
Software conguration
The program enables acquiring the conguration on the central unit, saving it in a le to
be used to reinstate the conguration of the same, or to congure other central units. It
is also possible to update the permanent software of the central unit using new versions
published by BTicino.
Example
Example of conguration performed on the central unit.
- Detection of devices
After pressing OK, the
following screen appears
Press OK to start learning
Select
Learning
Press OK to conrm
LEARNING
zone: 0 num.: 1
type: not exist
tamper: OFF
automatic
Predisporre
l’impianto
alla
configurazione
invia = OK
non invia = CLEAR
Vuoi inviare la
configurazione a
dispositivi di
visualizzazione?
invia = OK
non invia = CLEAR
Learning
ended
no problem
errore trasmiss.
Configurazione
riprova TX =OK
exit conf. =CLEAR
configurazione
impianto OK
MAINTENANCE
Language
Key program
System test
Learning
MAINTENANCE
Language
Key program
System test
Learning
NEXT
Rear view
(See the manual of the central unit)
Base central unit
