280
N°
Z
AUX
MOD
N°
Z
AUX
MOD
N°
Z
AUX
MOD
N°
Z
AUX
MOD
N°
Z
AUX
2
1
1
MOD
067512
L4611B
N4611B
NT4611B
AM5791B
(*) The sensor generates an alarm signal based on the detection performed during a
period of 30 seconds.
NOTE: Use the pulse counter function to avoid false alarms caused by thermal variations
(radiators etc.).
Congurator Mode
0 1 pulse
1 pulse counter (*)
2 1 pulse with delay
3 pulse counter with delay
Clamp for burglar
alarm BUS
MOD
Z
No.

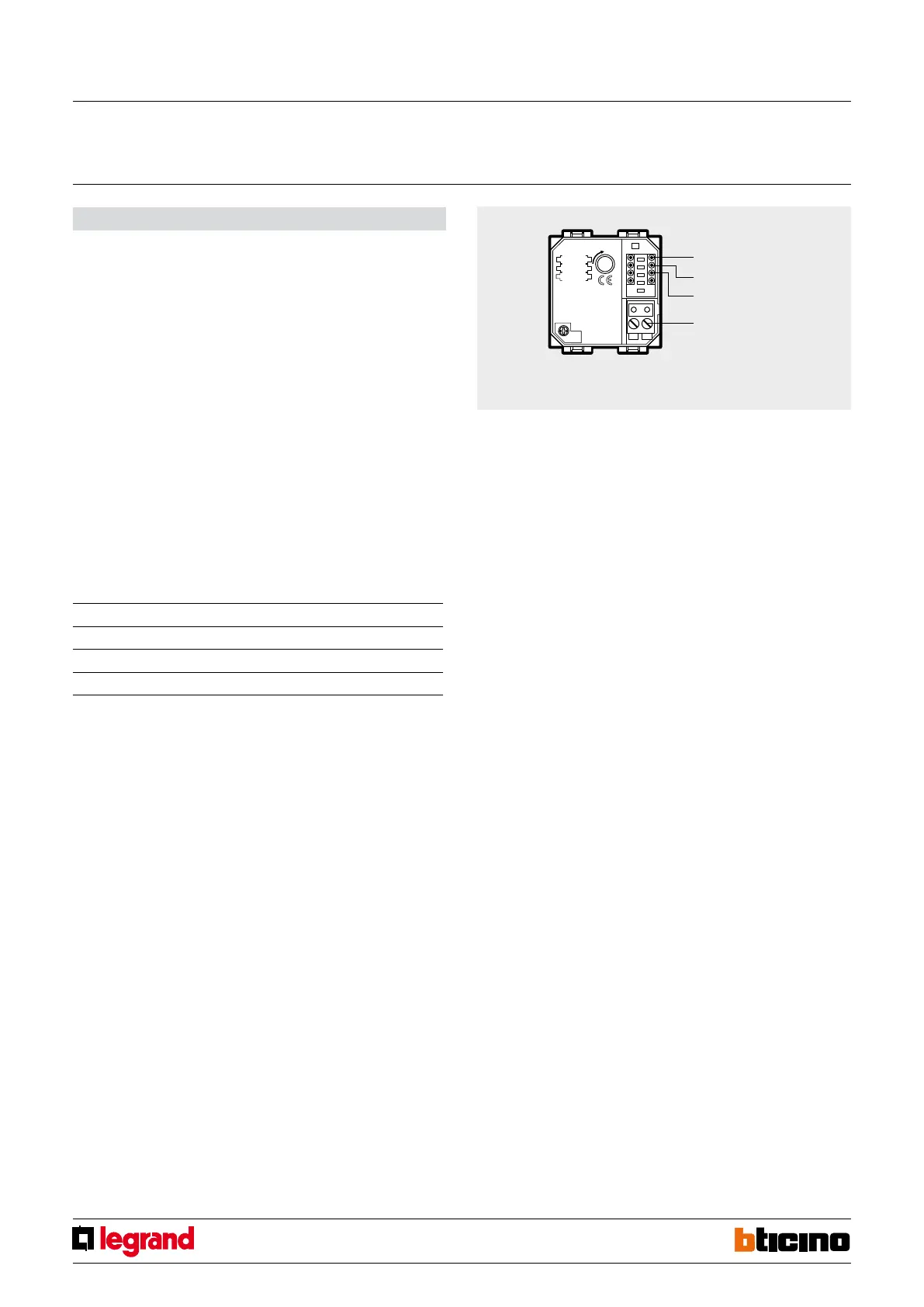

Rear view
Conguration
They require that the zone they belong to and the progressive sensor number within the
zone are assigned. They also require setting of the detection mode.
Z
This congurator assigns the number of the appropriate zone to the detector.
Congurator 1 assigns zone 1 to the detector, congurator 2 assigns zone 2 and so on to
a maximum of 8 zones.
N°
This congurator assigns the progressive number of the detector inside the appropriate
zone.
Congurator 1 identies the rst detector, congurator 2 identies the second and so on
to a maximum of 9 sensors (IR detectors and contact interface) for each of the 8 zones.
MOD
This congurator sets the sensor detection mode.
It can be used, for EXAMPLE, when the device is directed towards a possible source of
disturbance (window or radiator), and its position cannot be changed.
Passive IR detector
MQ00037-c-EN 28/04/2014
