Description
The air conditioning units control IR emitter is a device capable of controlling the air
conditioning units of the air conditioning system by sending infrared controls. All the
controls are sent to the splitter using the Touch Screen, or Multimedia Touch Screen, of
the MY HOME system.
The device may be installed inside flush mounted boxes, behind traditional devices, in
distribution boards, without using a DIN rail space, or inside the splitter. It is fitted with
an IR transmitter with a two metre wire, for connection to the splitter receiver.
The IR transmitter has sockets for 4 configurators: ZA/A, ZB/PL, N, M.
Note (*): The device might not be compatible with some HVAC brands and models.
Technical data
Operating power supply
with SCS BUS: 18 – 27 Vdc
Absorption: 15 mA in stand-by
25 mA during transmission peak
Operating temperature: 5 – 40 °C
Dimensional data
Basic module
Bottom view

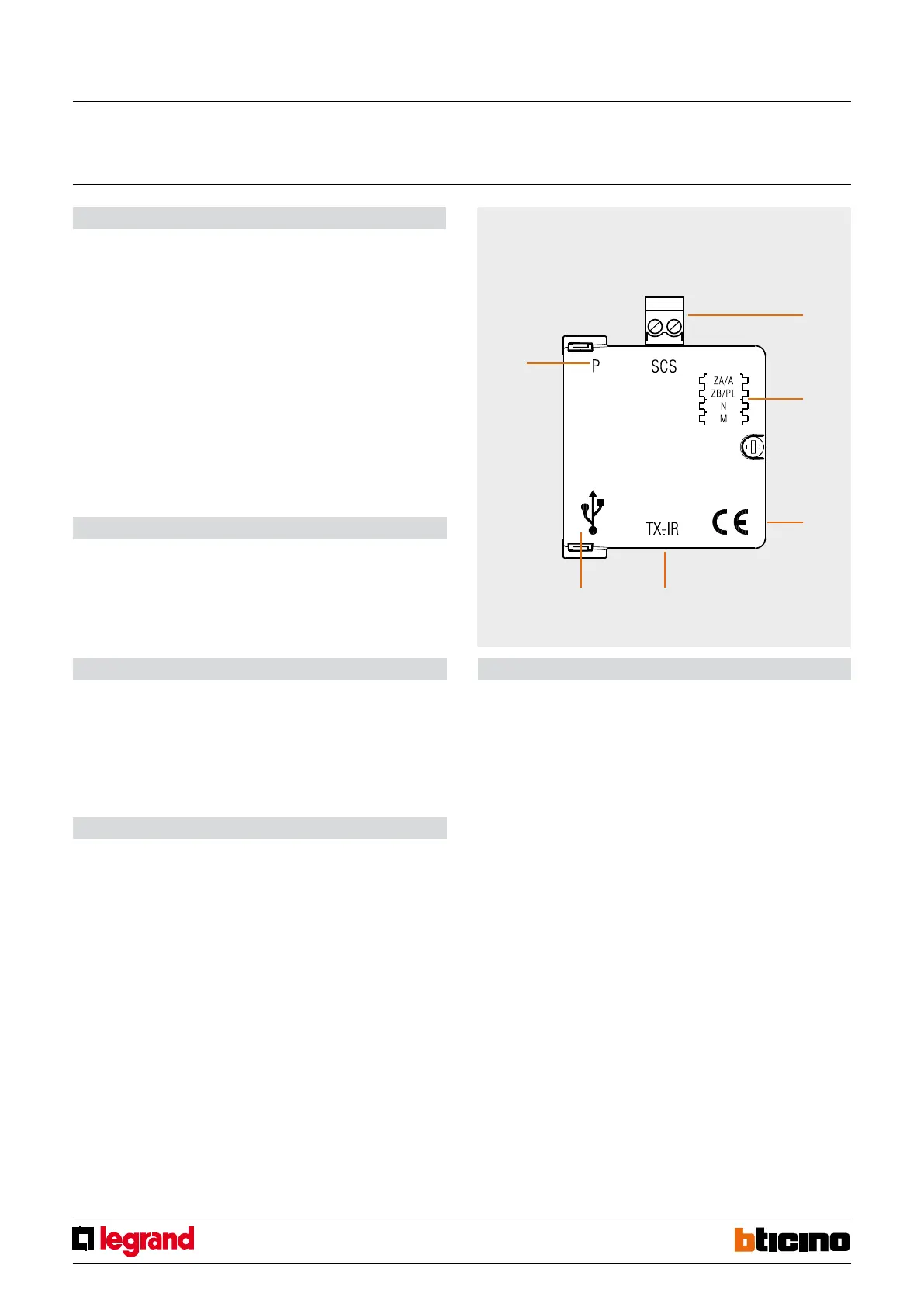

Legend
1. BUS connection
2. Configurator socket
3. Remote control IR receiver
4. IR transmitter connector
5. Software programming USB connector
6. Virtual configuration pushbutton (future use)
Configuration
The device can be configured in two separate ways:
1. Physical configuration: by connecting the physical configurators to their sockets.
2. Virtual configuration: the device is configured remotely, when no physical configurators
are connected (future use).
1) Basic mode M = 1
In this mode the device can learn up to 20 controls from the air conditioning unit remote
control. These can be recalled by all the devices controlling the scenarios (scenario
control, Local Display, Touch Screen, Multimedia Touch Screen, MH200, MHVisual, Web
server).
In this mode, the device fully becomes part of the automation system, with A/PL
address (the N configurator must be equal to 0). Acquisition of the control is ensured by
connecting the device to the PC with the dedicated software.
Using the IR emitter it is possible to acquire the IR controls from the remote control,
which can then be saved in a personal database.
Using the software, each control can be associated to a number from 1 to 20, and then
downloaded on the IR emitter.
2) Advanced mode M = 0
In this mode the IR emitter provides control of the main functions of the air conditioning
units (temperature, mode, speed and swing) from the Touch Screen and the Multimedia
Touch Screen.
This mode is available for the air conditioning units listed in the database supplied with
the product.
If used with the right air conditioning unit model, the following controls are possible:
- temperature: adjustment 16 – 30 °C
- mode: auto, heating, cooling, dry and fan
- speed: auto, minimum, medium, maximum
- fins oscillation (swing): on - off
Air conditioning units control IR emitter
MQ00357-c-EN 05/06/2014
