352
4
2
3
4
5
1
F524
Lower view
MQ00521-b-EN 09/06/2014
Description
The energy data logger is a device that can be used to:
- Display on the PC or other device (e.g. Smartphone) consumption/production data,
recalling the web pages using an Internet Browser:
- Concentrate and save data consisting of 10 separate energy lines maximum. The lines
can be the electric power lines, by connecting F520 meters, or an F521 Central unit for
load management, or lines for water, gas, or heat consumption, by connecting 3522
pulse counter interfaces.
- Have a more detailed recording of electric data (using the Web pages included in the
device it is possible to download an excel file to have in hand every 15 minutes details
of each single electric line).
- Set several time bands for a more detailed conversion of the electric power value
into an economic value (it is in fact possible to configure up to 8 different tariffs. E.g.
two-hourly tariff, three-hourly tariff). For water and gas lines there are monetary
conversion values without time bands.
- Export the data to an excel file
- Have a simple data backup: The device features a housing for a micro SD memory card,
on which consumption details for each individual line are saved daily.
Technical data
Operating power supply with SCS BUS: 18 - 27 Vdc
Current draw: 30 mA
Operating temperature: 5 – 40°C
Dimensions
1 DIN module
Lower view
Configuration
The device is configured using the WEB pages in the device. For the activation and the
setup of the WEB pages refer to the CD supplied.
WARNING: To activate the Energy Data Logger functions, the date and time must be set
(from WEB pages or other device).

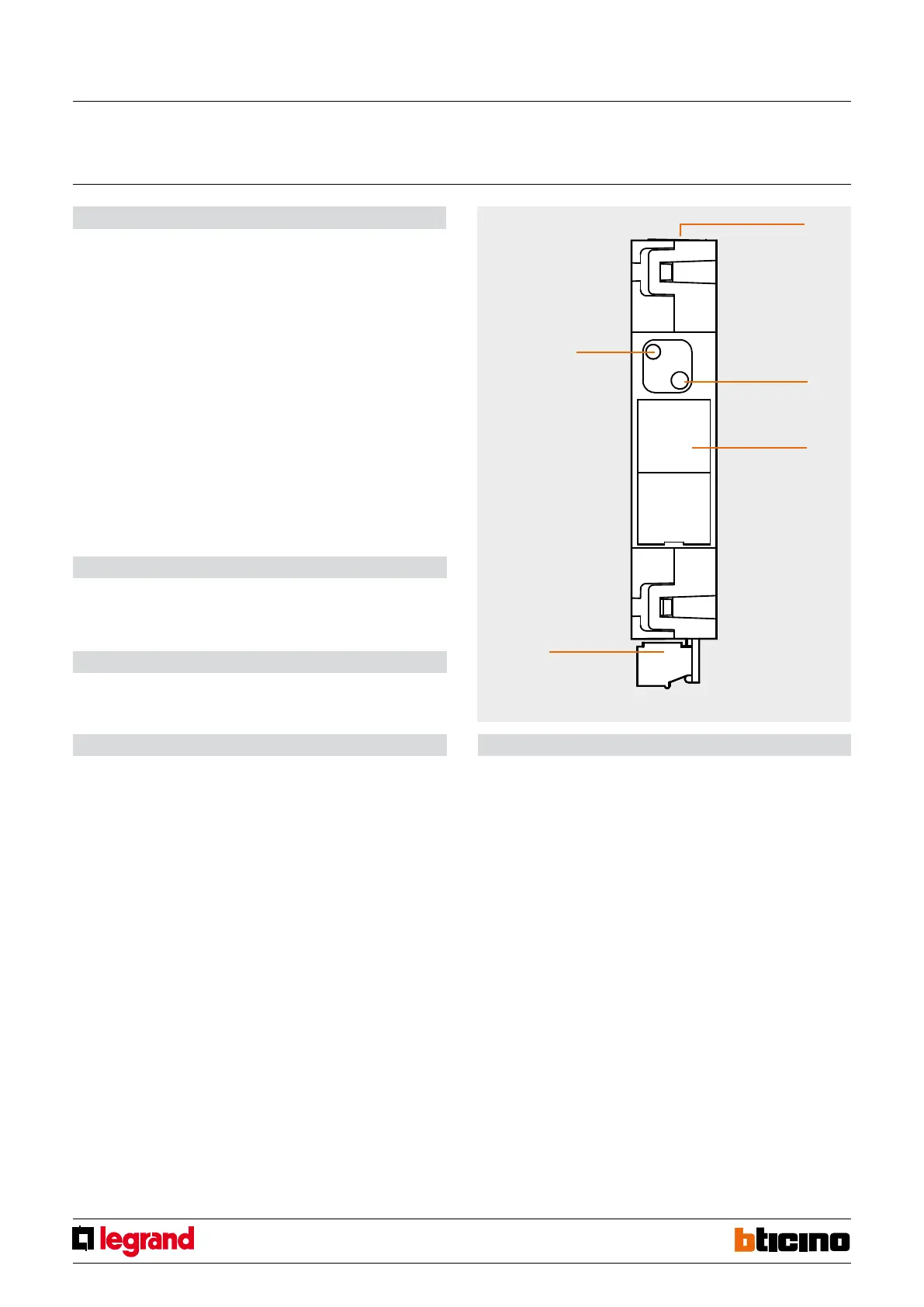

Legend
1.
Ethernet cable connection
2. Button
3. Micro SD memory card socket door
4. SCS BUS connection
5. Network/device status LED
Energy Data Logger
