477
LINE
PHONE 2 PHONE 3
PHONE 1 MODEM
21
11
3
4
F558
Description
This device, with one input port and four output ports, RJ45 type, performs a double
action:
- it makes the ADSL signal intended for a modem available to an output port;
- it makes the telephone signal intended for the other three telephone lines available to
the other three output ports.
In alternative to the RJ45 connector, the input telephone line can also be connected
using a traditional screw clamp.
The filter is compatible with ADSL, ADSL2+, VDSL and VDSL2 standards.
If more than three telephone lines are required, it will be possible to use the device
in conjunction with the F555 telephone distribution frame using patch cords L4665L20
and L4665L40.
Legend
1. RJ45 port, output telephone line
2. RJ45 port, output ADSL line to the modem
3. Screw clamp for input telephone line
4. RJ45 port for input telephone line
Technical data
Audio frequency range: 0.3 - 3.4 kHz
Bandwidth splitter from continuous current up to 16 kHz
DSL frequency range: 32 kHz - 30 MHz
Input signal rated voltage: 21 mV pp - 5.4 Vpp
Telephone call voltage: 40 - 150 Vrms
Line impedance: 250 - 75O Ohm
DSL loss (db):
Frequency Type
32 kHz - 138 kHz > 45
138 kHz - 30 MHz > 55
Operating temperature: 5 – 40 °C
Related items
Telephone distribution frame F555
L4665L20 and L4665L40 patch cord

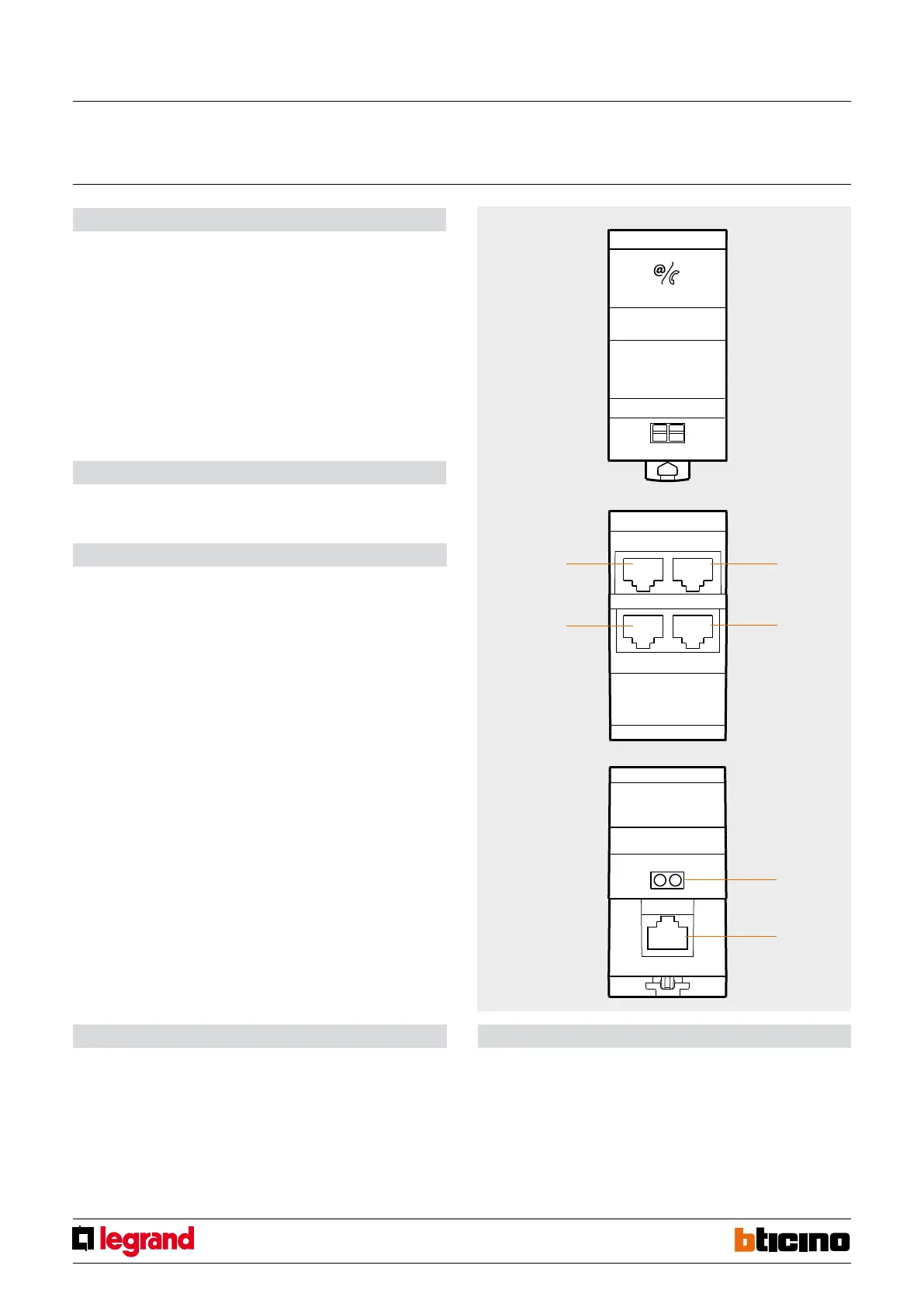

Dimensional data
2 DIN modules
Front view
Top view
Bottom view
xDSL lter with telephone distribution frame
MQ00326-b-EN 22/04/2014
