Layout and description
31
5 LAYOUT AND DESCRIPTION

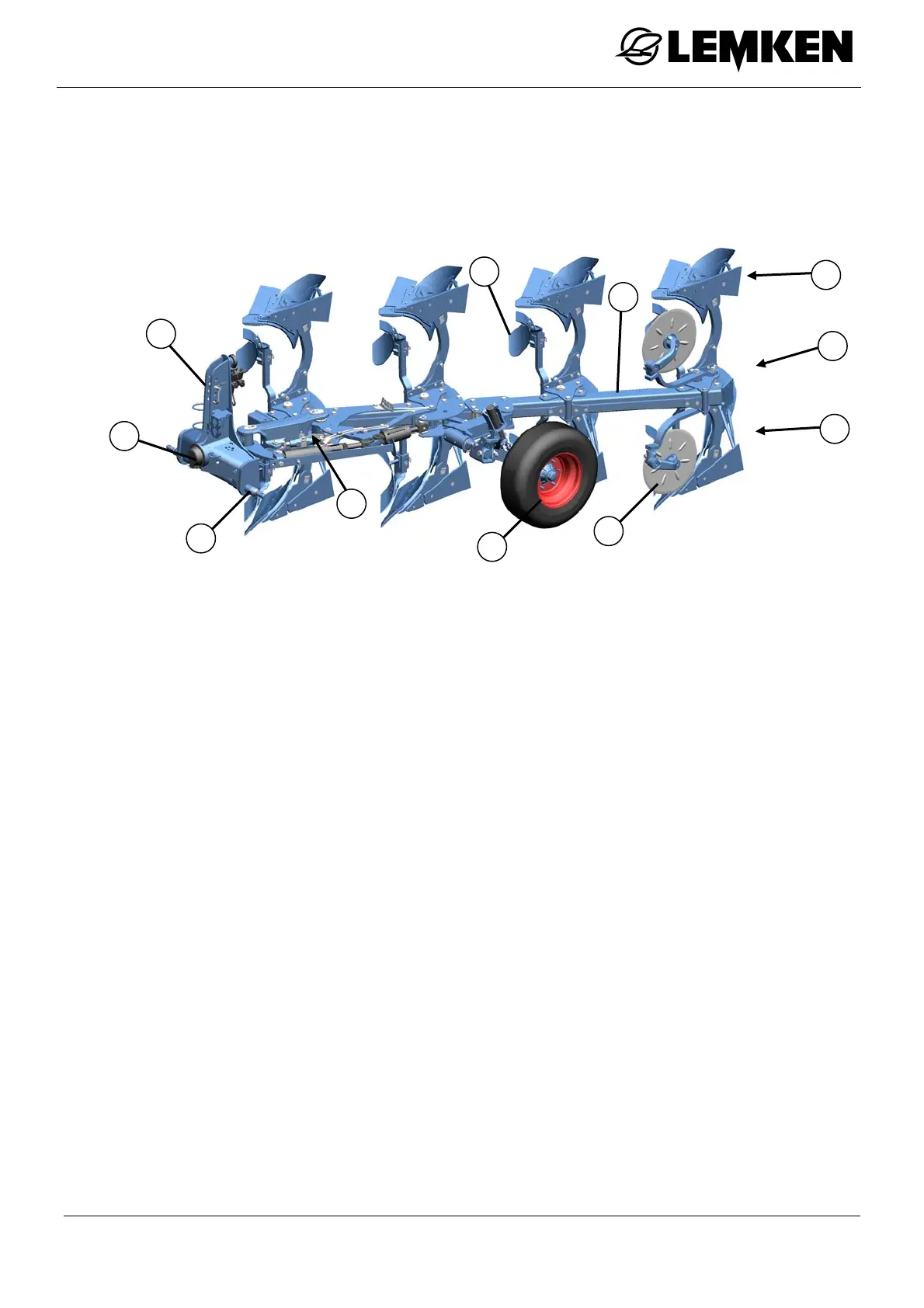

5.1 Overview
1 Three-point linkage
2 Drawbar
3 Turnover device
4 Optiquick adjustment system
5 Base frame
6 Land wheel
7 Plough body
8 Working tools (skimmer, trash board)
9 Disc coulters
10 Lighting system
5.2 Description
5.2.1 Three-point linkage
The three-point linkage with upper link pin and drawbar corresponds to ISO 730.
Drawbar L2/Z2 corresponds to category 2.
Drawbar L2/Z3 corresponds to category 3N.
Drawbar L3/Z3 corresponds to category 3.
The upper link pin corresponds to category 3.
6
9
7
7
2
1
8
3
5
10
4
