10.3 Angle
10.3.1 General information
When ploughing, the base blade should be almost vertical to the ground as seen
from the direction of travel. The correct angle is set when the ploughing pattern is
uniform.
If this is not the case, then the angular adjustment must be altered as described
below.
10.3.2 Operating the hydraulic angular adjustment
The angular position is adjusted using the same control unit as is used for turning.

Get off the tractor.

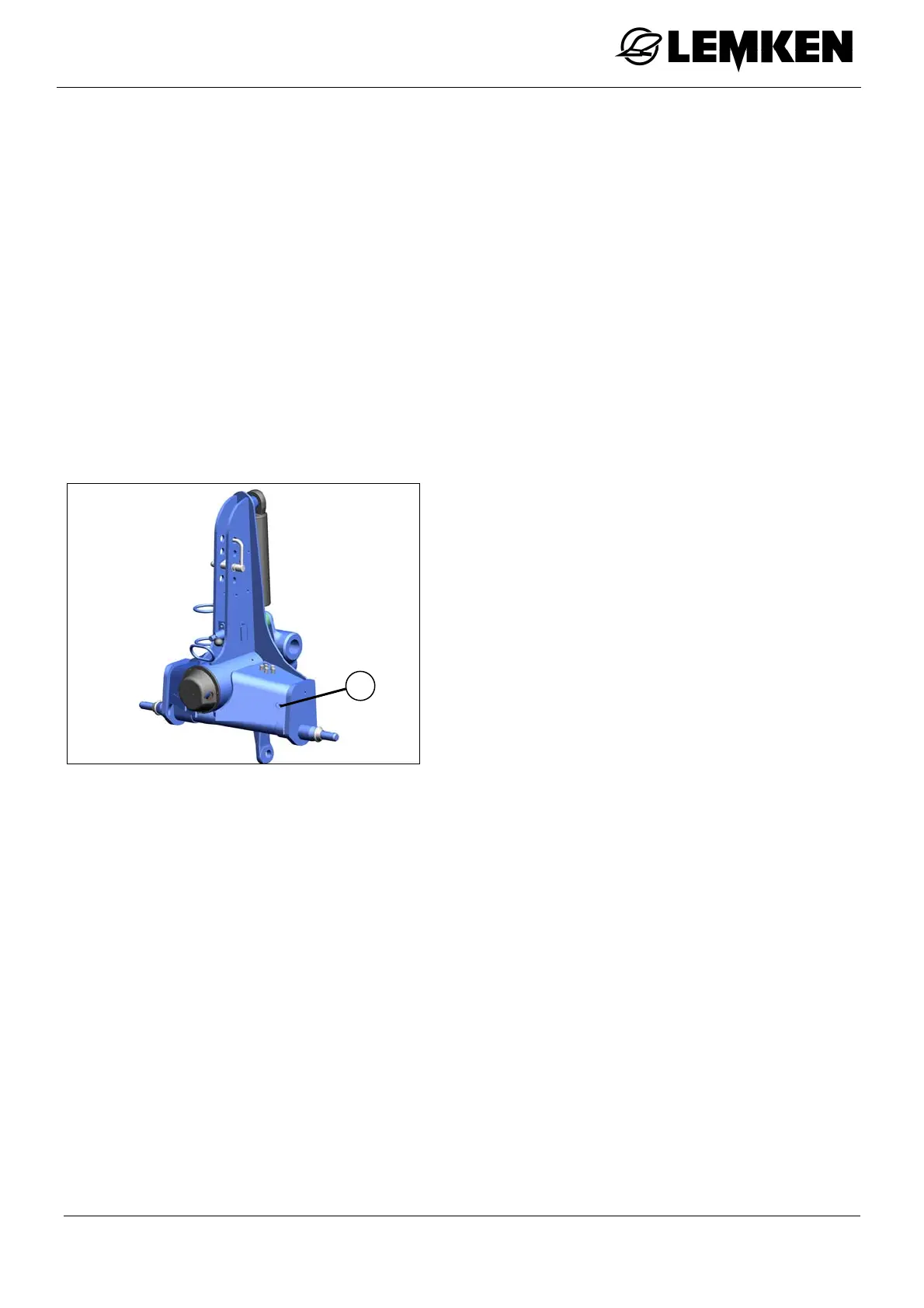

 Press the button (1).
The LED on the button lights up.
 Get onto the tractor.
 While ploughing, set the required angu-
lar position with the plough turning con-
trol unit.
 When the required angle is reached, get
off the tractor again.
