Packer arm
79

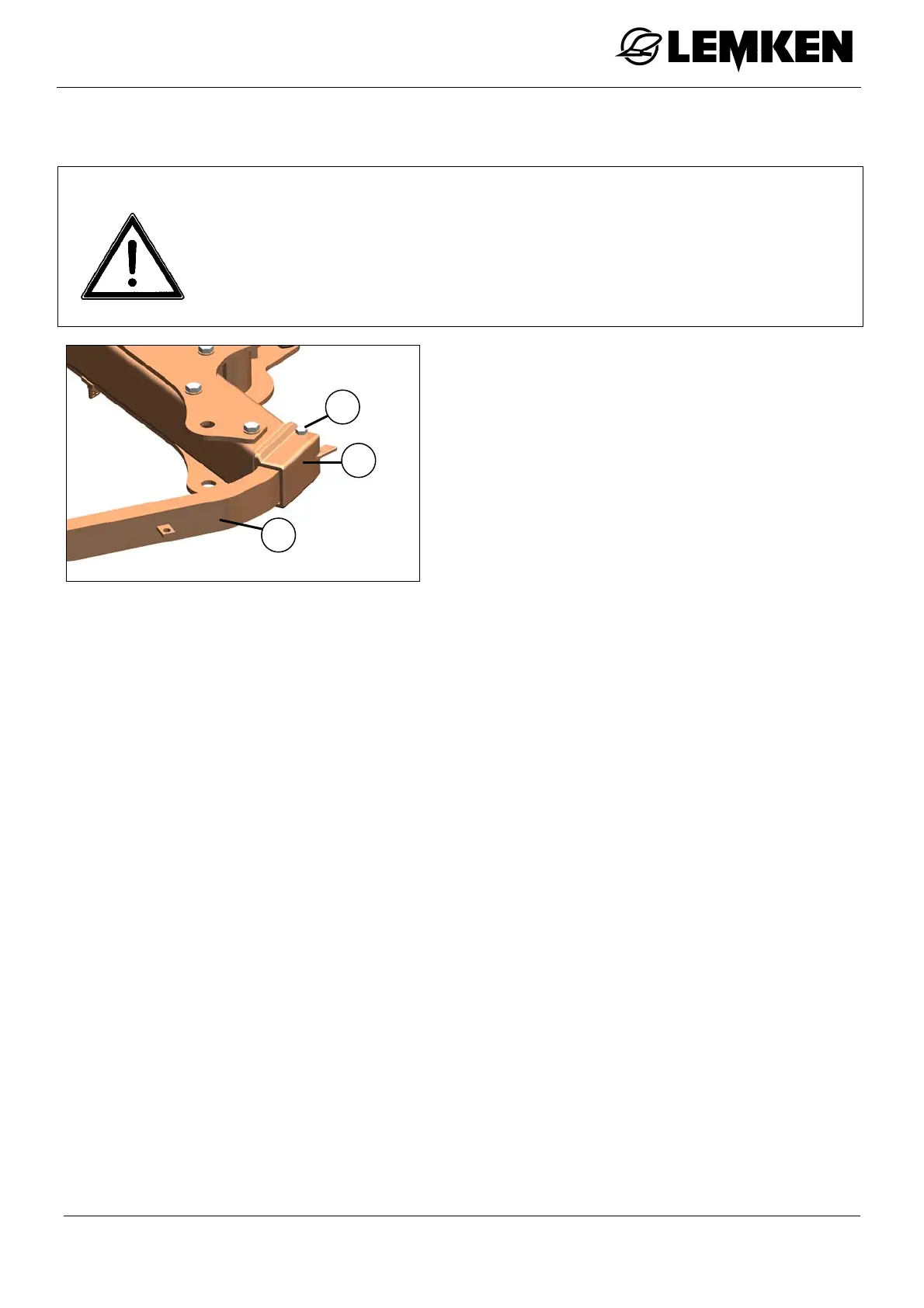

12 PACKER ARM
CAUTION
Read and observe the «Safety measures and precautions, page
13».
The packer arm swivels to the catch position by spring force.
Ensure that an adequate safety distance is maintained.
Insert the packer arm (1) into the retain-
ing slot (2) on the front of the plough
frame.
Secure the coupling with the pin (3).
Connect the hydraulic lines.
Refer to the operating instructions for the
relevant packer arm.
3
1
2
