Adjustments
53
10.5 Hydraulic frame swivel
WARNING
Observe the general health and safety precautions »3.10.3, hy-
draulic systems», page 29.

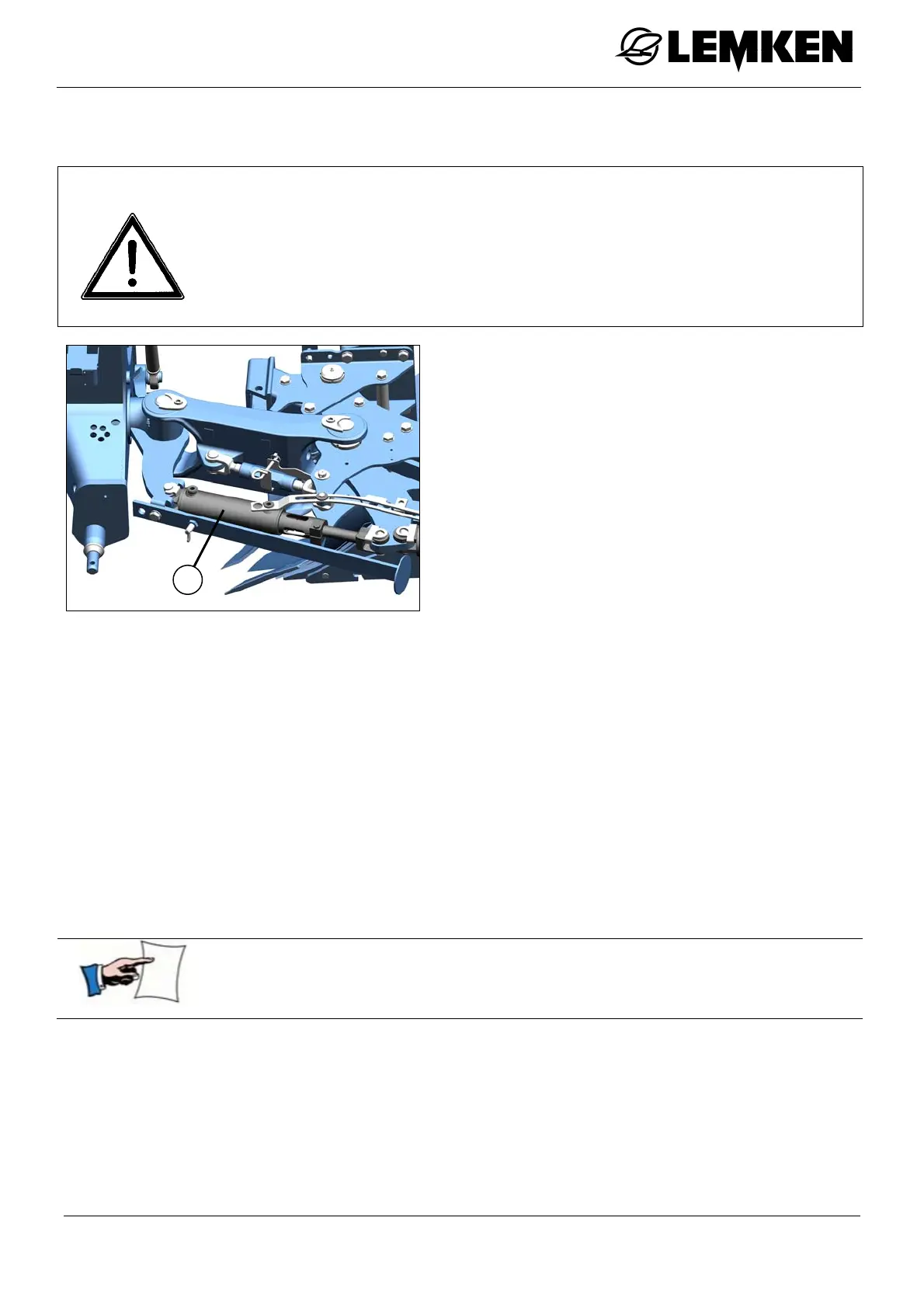

The frame swivel cylinder (1) is connected
via to hydraulic hoses with the control
block in the three-point linkage.
The base frame can be swivelled in and
out again during the turn automatically
without the previously set front furrow
width being influenced.
Proceed as follows to turn:
Pressurise the connection P of the con-
trol block:
The base frame swivels in, is turned by
180 and swivels out again.
Pressurise the connection P of the control block until the base
frame has turned completely and is swivelled out again!
