LEMKEN Juwel 7 - Working Depth; Turning Forwards or Backwards

Adjustments
58

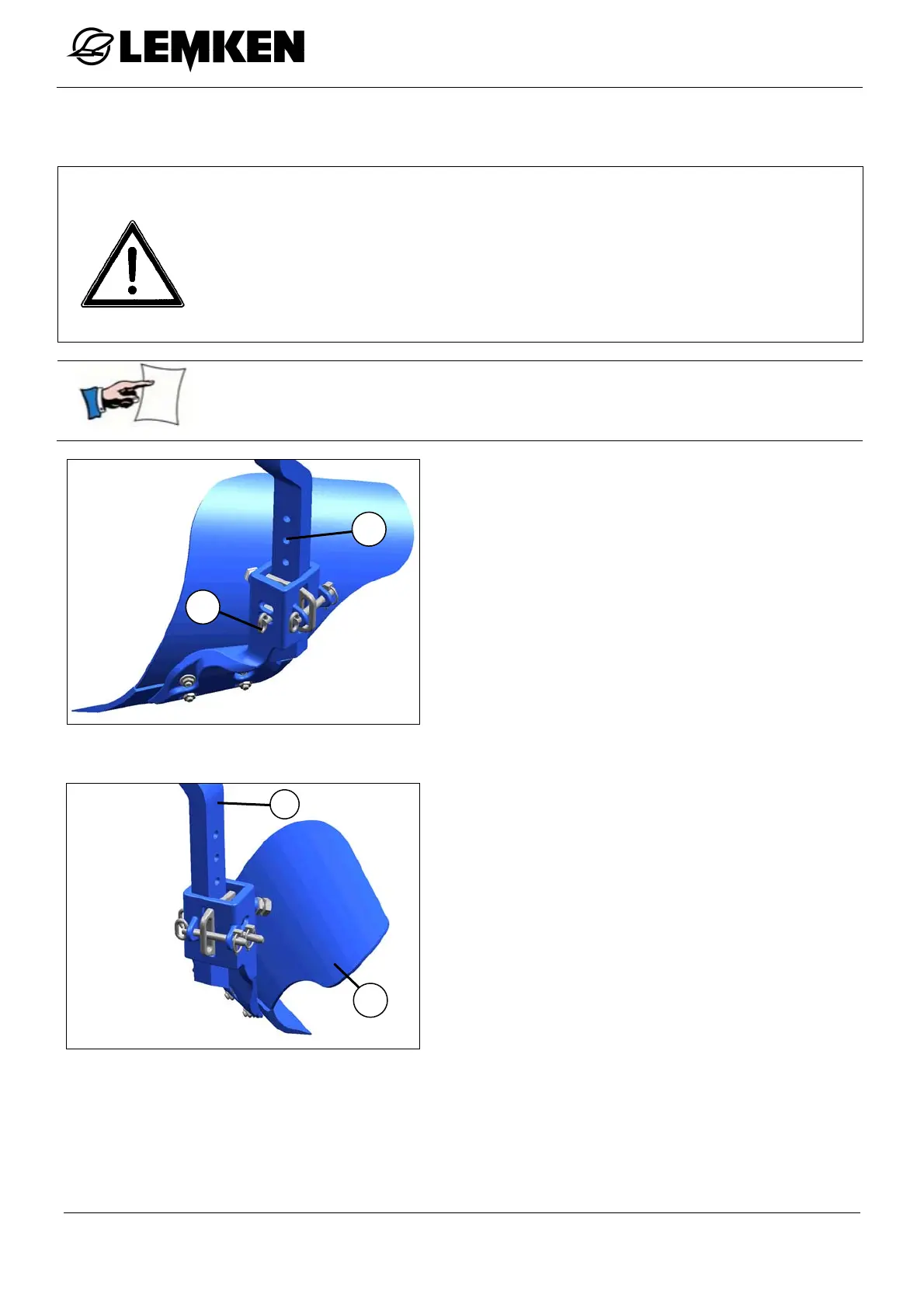

10.9.3 Working depth
CAUTION
Risk of crushing
When setting the working depth, the skimmer may drop down
when the pin (4) is removed.
 Hold on to the skimmer with one hand until you have secured it
by inserting the pin.
Adjusting the working depth does not change the projection angle
setting.

Release the pin (4).
 Pull the pin (4) out.
 Adjust the working depth by selecting a
different hole (5).
 Insert the pin (4) into the selected hole.
 Secure the pin (4) with the securing pin.
10.9.4 Turning forwards or backwards
The position of the skimmer (1) can be op-
timised by turning the fertiliser depositor
blade (6) forwards or backwards.
 Backwards = More clearance between
skimmer and plough base in front.
 Forwards = More clearance between
skimmer and associated plough body
(e.g. to prevent stones from getting
stuck).
5
4
1
6
