LEMKEN Juwel 7 - Attaching and Detaching; Attaching

Attaching and detaching
41
8 ATTACHING AND DETACHING
WARNING
Risk of injury for lowered implement
 Never enter the danger area between the tractor and the im-
plement
 Read and follow the instructions in the "General Health and
Safety Precautions" section and the specific safety instructions
"Risks posed by lowered implement".
The implement is not a play object.
Climbing on the lowered implement can lead to serious injury, e.g.
due to slipping or stumbling.
Do not climb on the lowered implement.

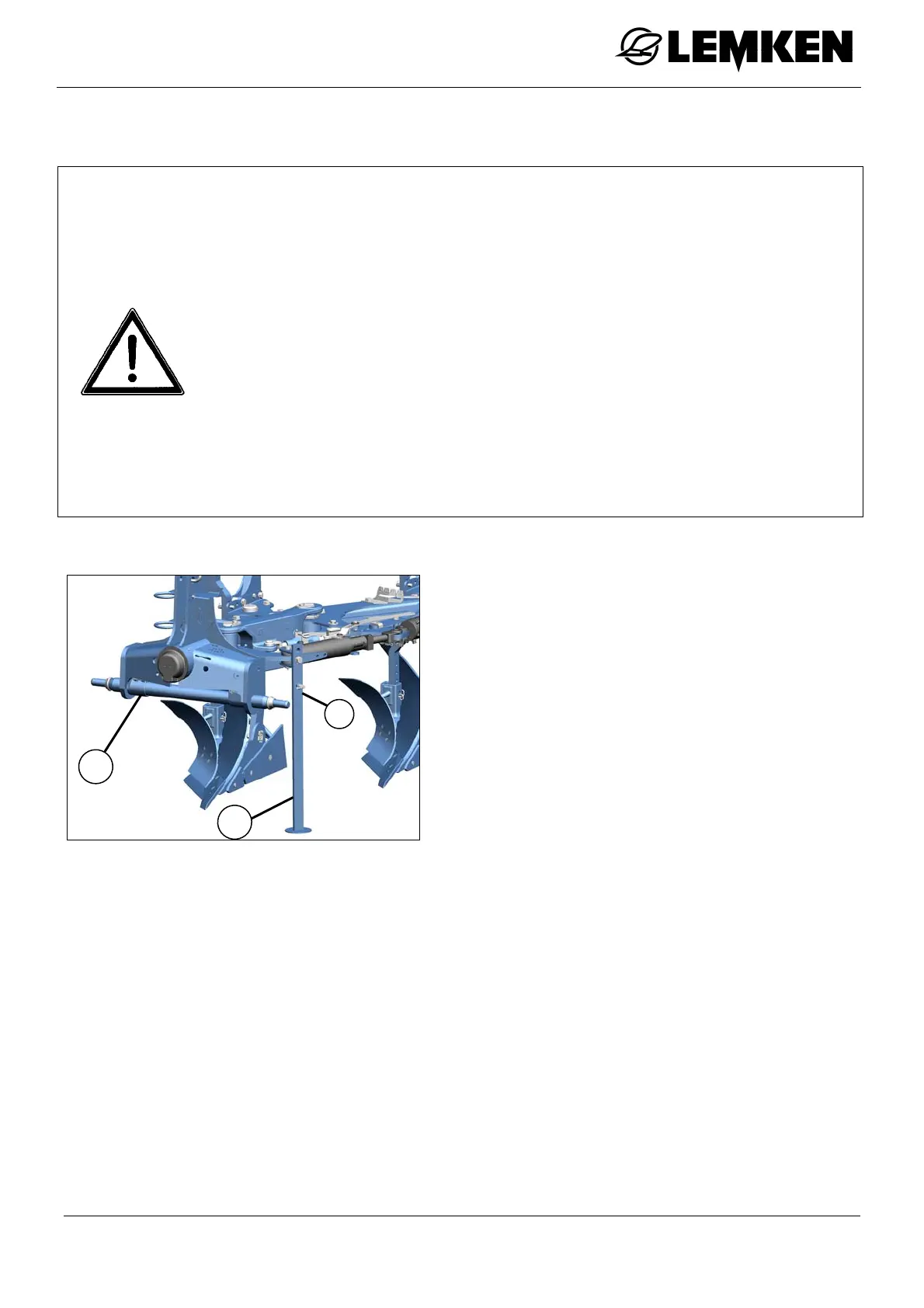

8.1 Attaching
Attach the lowered plough to the tractor a
follows:
 Set the tractor hydraulics to position con-
trol.
 Connect the lower links of the tractor
with the drawbar (1).
 Lock the lower linkages.
 Relieve the stand (2).
 Pull out the spring locking bolt (3) with a
turning movement.
 Swing the stand (2) up.
 Secure the stand with the locking pin (3).
