Use
40
7.5 Three-point attachment
WARNING
Loss of the implement
The category of the three-point linkage of the tractor and the cate-
gory of the drawbar and the upper linkage bolts must match. The
drawbar and the upper linkage bolts can otherwise slip out of the
connection when driving over unevenness or due to vibration.
Always ensure the precise matching of the category of the
three-point linkage and the diameter of the drawbar and the up-
per linkage bolts.

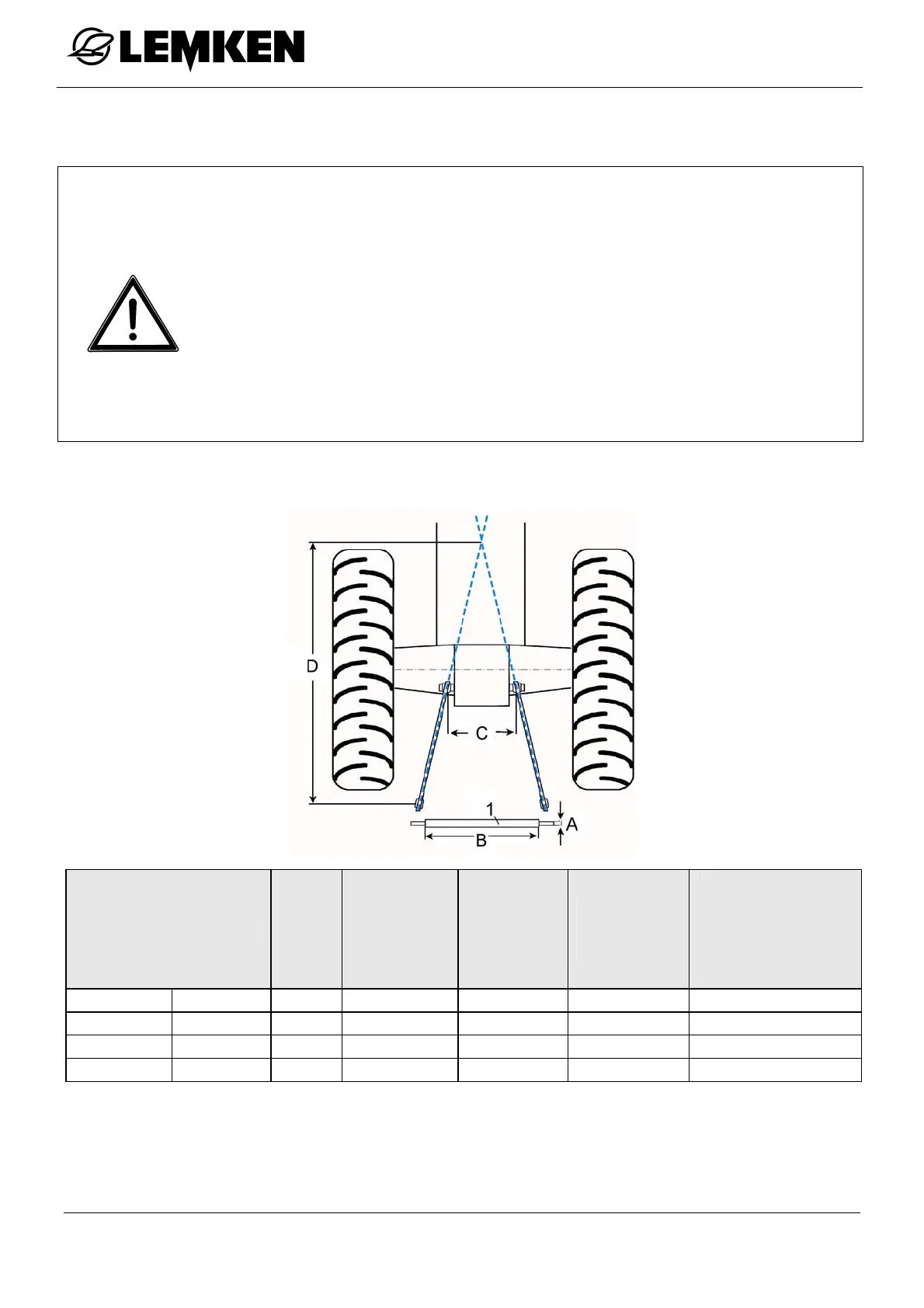

The maximum permissible tractor outputs and dimensions as per ISO 730-1 for
the corresponding category are shown in the following table.
Tractor output Cat.
Pintle di-
ameter of
the rail shaft
(mm)
Length of
the rail shaft
(shoulder
distance)
(mm)
Distance
tractor lower
linkage (mm)
Distance between
Drawbar and inter-
section point of the
lower linkage
(mm)
kW HP A B C D
30 - 92 40 - 120 2 50.8 952 480 - 635 1900 - 2700
60 - 122 82 - 160 3N 36.6 825 390 - 505 1800 - 2400
60 - 122 82 - 160 3 36.6 965 480 - 635 1900 - 2700
