LEMKEN Juwel 7 - Adjustment of the Projection Angle

Adjustments
57

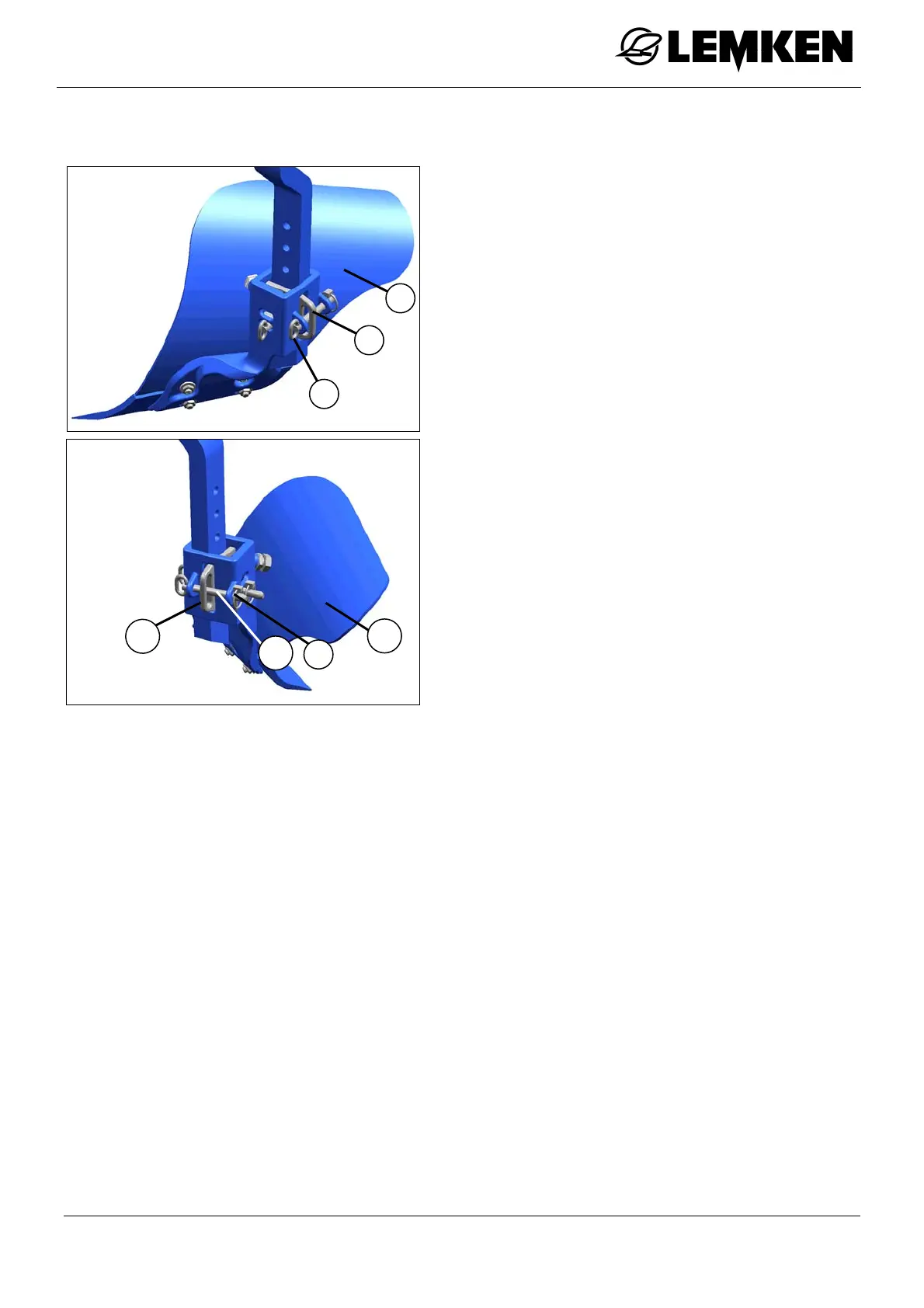

10.9.2 Adjustment of the projection angle
The projection angle of the skimmer (1)
must be adjusted by changing the position
of the locking bar (2).
 Release the pin (3).
 Pull the pin (3) out.
 Remove the locking bar (2).
 Pivot the skimmer (1).
 Insert the locking bar (2) into the gap
created.
 Use the pin (3) to secure the locking bar.
 Use the securing pin (4) to lock the pin.
2
1
3
1
3
2
4
