LEMKEN Juwel 7 - Changing the Hydraulic Depth and Transport Wheel from Transport Position to Working Position

Adjustments
71

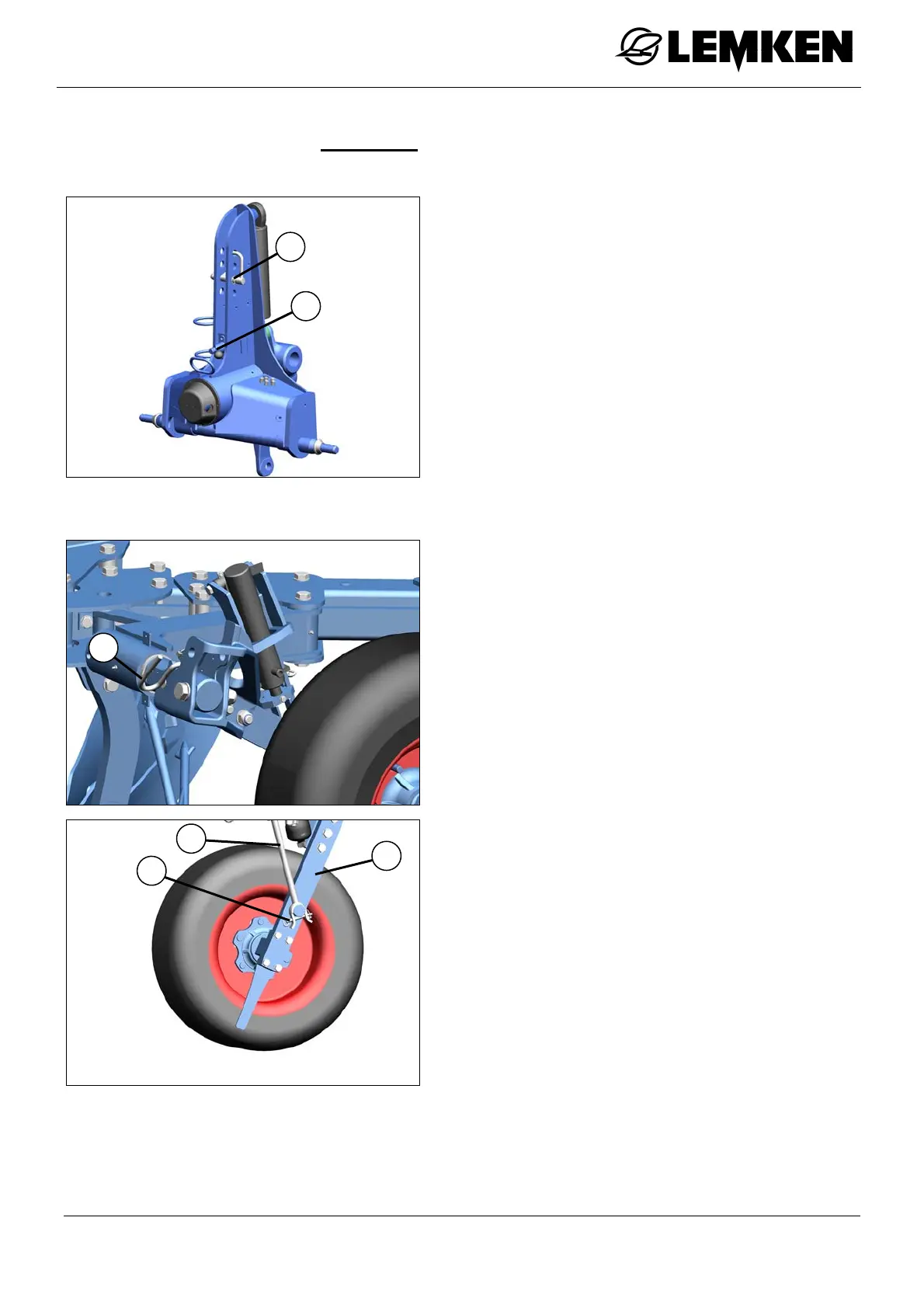

10.14.5 Changing the hydraulic depth and transport wheel from transport
position to working position

Connect the upper linkage to the head-
stock.
 Secure the upper linkage with the upper
linkage pin (6).
 Raise the plough slightly.
 Swivel the locking pin (5) by approx.
180° in the anti-clockwise direction. The
handle must engage in the recess so
that the locking pin is not able to slide
back on its own.
 Turn the plough in the rightward working
position.
 Pull the pin (3) out,
 Swivel the depth and transport wheel by
approx. 90° towards the plough frame.
 Lock the depth and transport wheel in
this position with the pin (3).
 Secure the pin (3) with the securing pin.
 Lower the plough onto the ground.
 Secure the hydraulic cylinder (8) to the
wheel stub (9).
 Secure the hydraulic cylinder using safe-
ty pin (7).
 Raise the plough again.
5
6
7
8
9
3
