Adjustments
64
10.13 Subsoiler

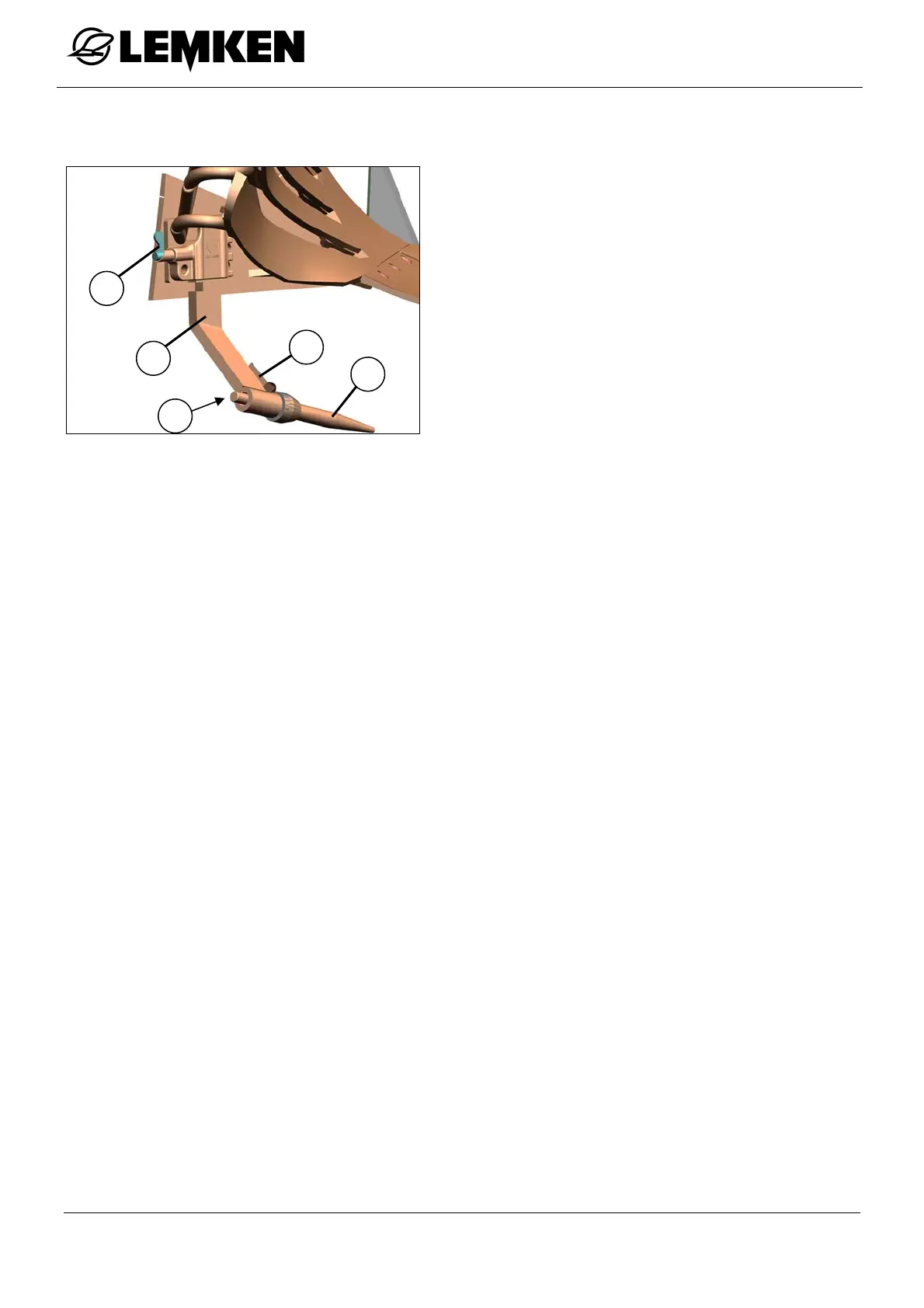

Fit the subsoiler as shown in the adja-
cent illustration.
Moving the blade (1) enables the working
depth of the subsoiler to be adjusted to two
positions.
Release the subsoiler using a spring
lock (2).
Move the subsoiler to obtain the desired
working depth.
Secure the subsoiler again with the
spring lock (2).
The blade (1) is protected against wear by
the blade guard (3). Both the blade guard
(3) and the thorn (4) can be replaced after
removing the nuts (5).
1
2
3
4
5
