Adjustments
72

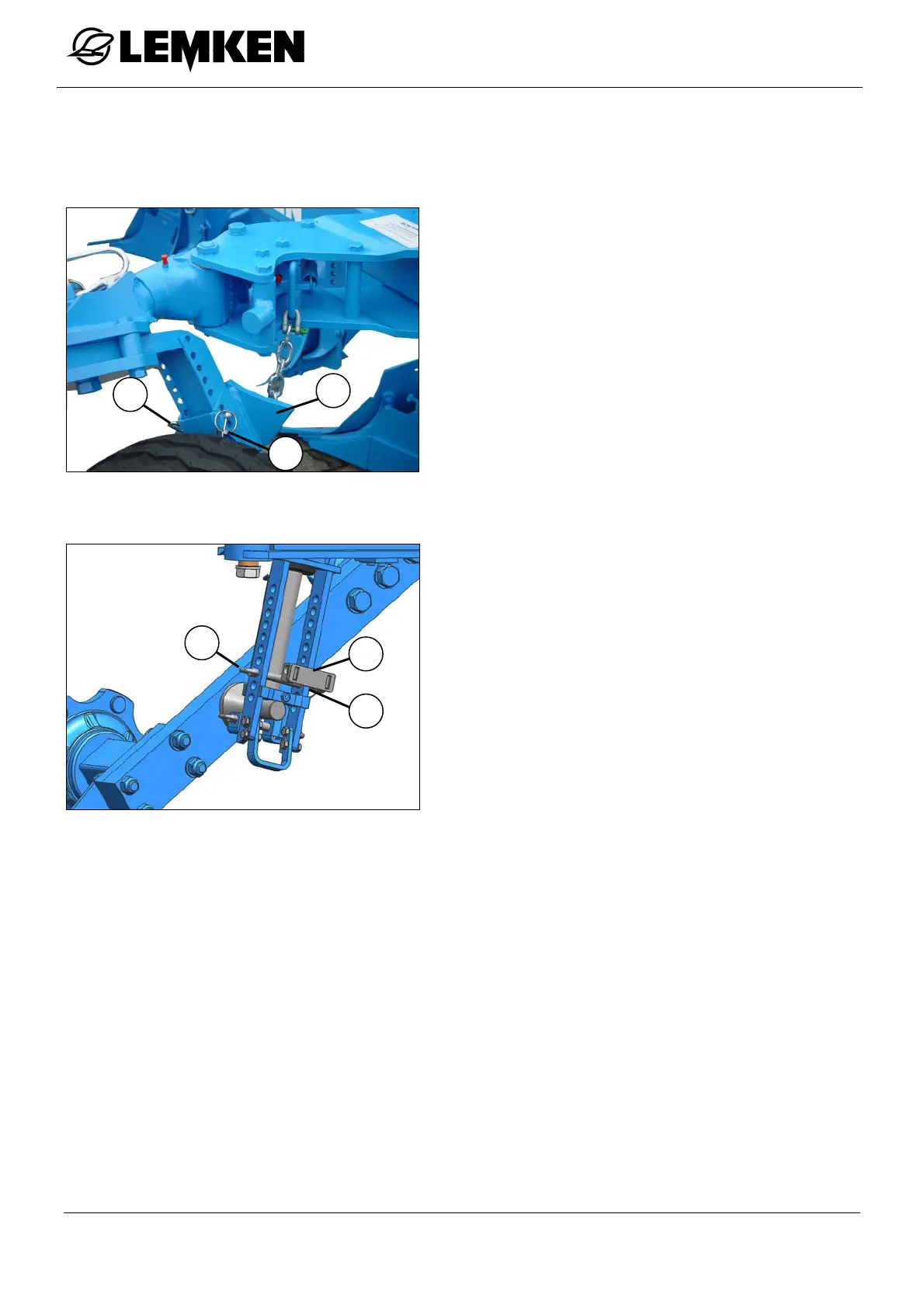

10.14.6 Working depth adjustment
Version with pin adjustment
Depth control wheel
Hydraulically dampened depth and
transport wheel
By moving the stop (1), the depth adjust-
ment of the land wheel or depth and
transport wheel is changed.
If the stop (1) is moved towards the wheel
axle (downwards), the working depth is in-
creased. Likewise, the working depth is
reduced if the stop is moved towards the
swivel axle (upwards).
Remove the securing pin (3).
Remove the pin (2).
Secure the stop (1) in the desired posi-
tion with the pin (2).
If a finer adjustment is desired, the stop (1)
can be installed in an offset position.
To do this, turn the stop (1) over.
Secure the pin (2) with the securing pin
(3) after the adjustment.
2
1
3
3
2
1
