10.14.2 Changing the mechanical depth and transport wheel from work-
ing position to transport position
CAUTION
 Read and follow the instructions in the 'General Health and
Safety Precautions' section and the specific safety instructions
'Risks posed by hydraulic systems'.
There are pinch points and shearing points located in the area of
the wheel stops.
 Ensure that sufficient safety clearance is maintained.
 Never exceed the maximum permitted air pressures.


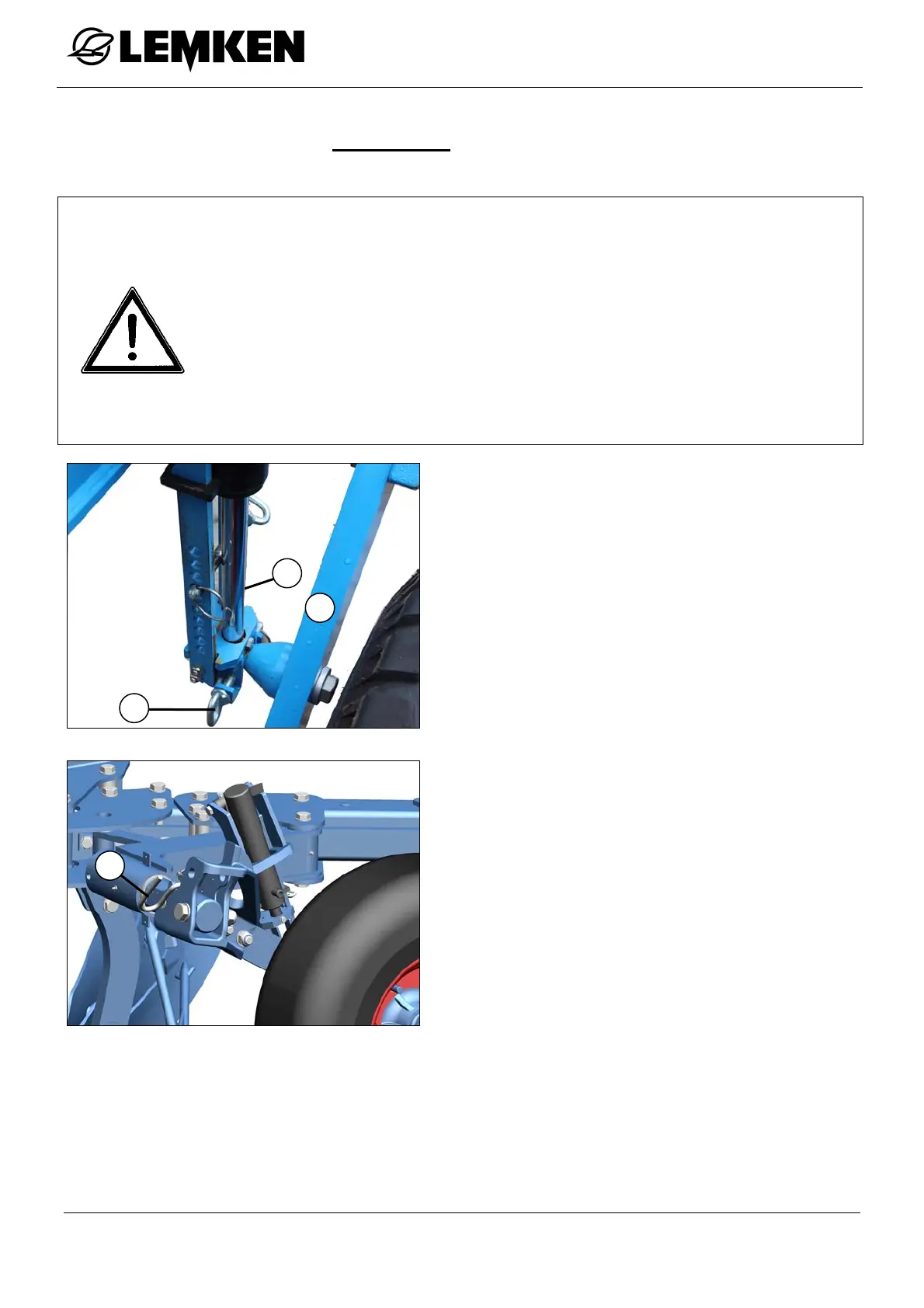

Turn the plough in the covering working
position.
 Place the plough onto the ground.
 Remove the safety pin (2).
 Release the hydraulic damper (3) from
the wheel stub (4).

Raise the plough slightly using the three-
point hydraulics.
 Release the pin (5) and pull it out.
 Swivel the wheel by 90°.
 Lock the wheel using the pin (5).
 Secure the pin (5) with the securing pin.
2
4
3
5
