LEMKEN Juwel 7 - Duramaxx Plough Body; Contact Angle

Adjustments
54
The three-point linkage of the tractor is off-
set laterally for a change of the working
width of the Juwel V for the automatic ad-
aptation of the front furrow width and the
tractor plough draught line.
 Observe that the limit chains always
permit a sufficient lateral movement of
the lower linkages.
10.6 DuraMaxx plough body
10.6.1 Contact angle

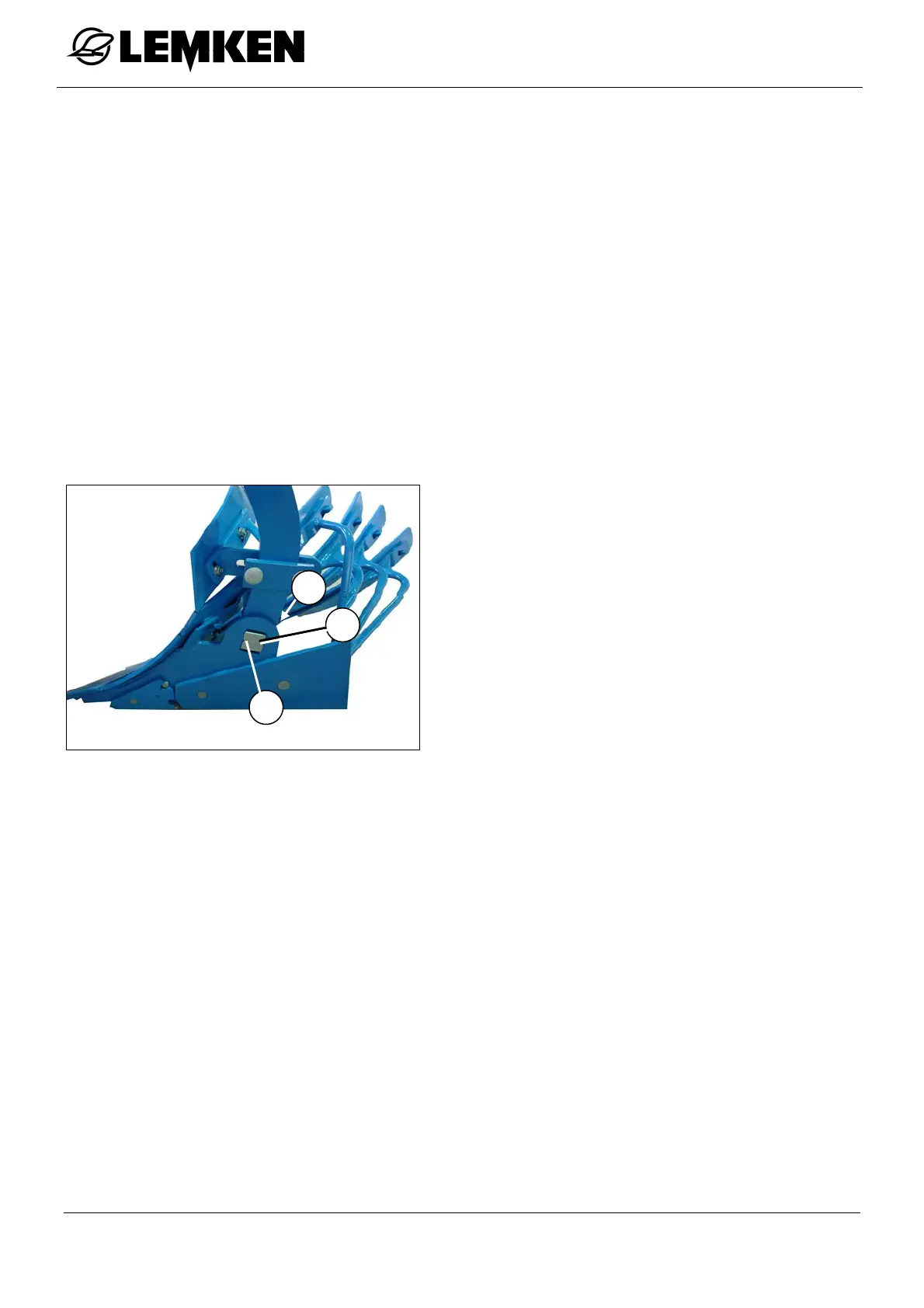

The bodies are mounted with the contact
angle central to the ground. The notch (3)
points forward. The contact angle can be
changed with the eccentric screw (1) if re-
quired.
 Release the nuts (2).
 Adjust the eccentric screw (1).
 Bigger contact angle, notch (3) points
down => better heeling.
 Smaller contact angle, notch (3)
points up => better depth guidance.
 Then re-tighten the nuts (2).
See «Tightening torques, page 86».
