10.14.4 Changing the hydraulic depth and transport wheel from working
position to transport position
CAUTION
 Read and follow the instructions in the 'General Health and
Safety Precautions' section and the specific safety instructions
'Risks posed by hydraulic systems'.
There are pinch points and shearing points located in the area of
the wheel stops.
 Ensure that sufficient safety clearance is maintained.
 Never exceed the maximum permitted air pressures.

Turn the plough in the right hand turning
working position.

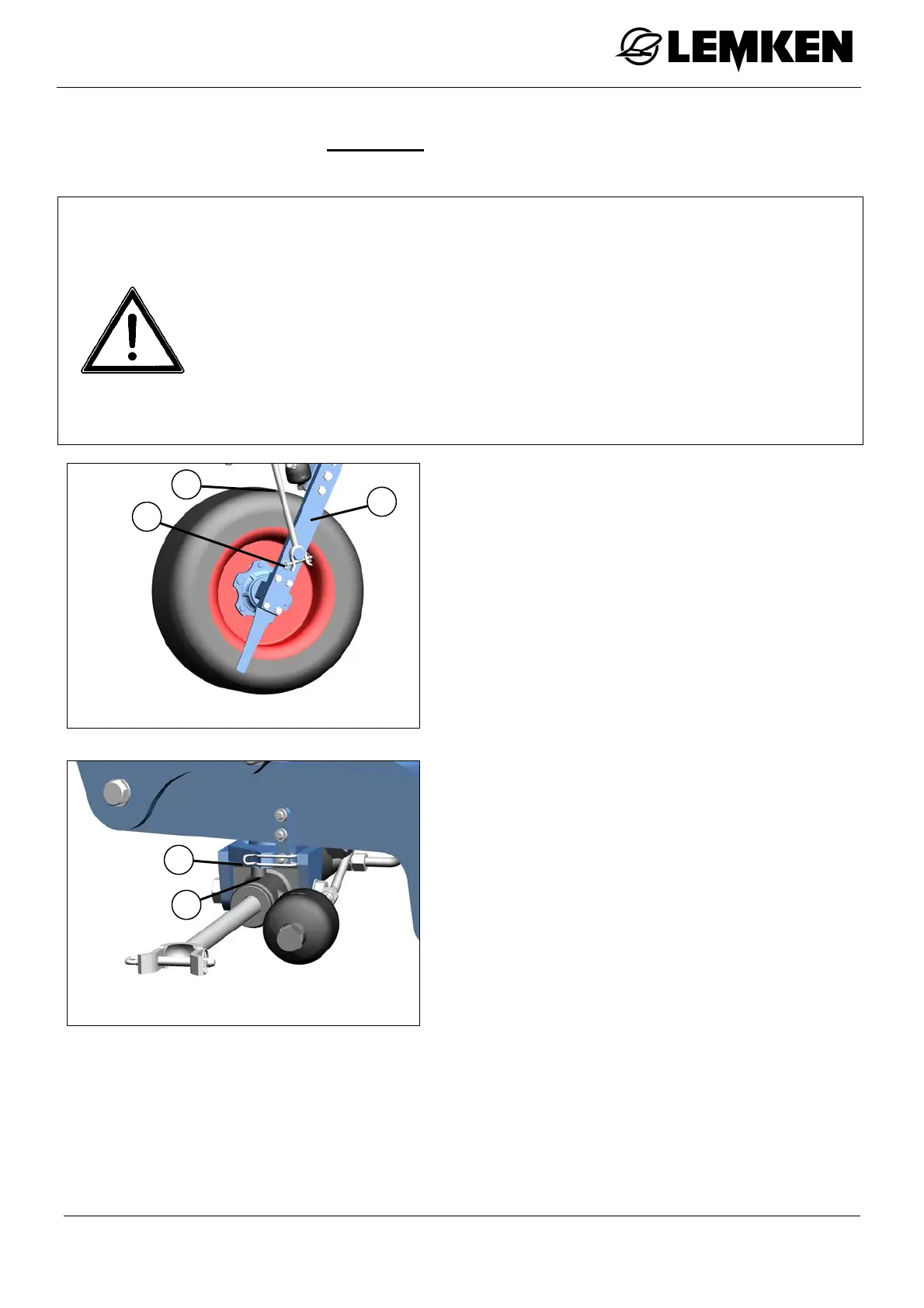

 Remove the safety pin (7).
 Release the hydraulic cylinder (8) from
the wheel stub (9).

Swivel the hydraulic cylinder (8) into the
spring holder (10).
7
8
9
8
10
