Identification plate

18 IDENTIFICATION PLATE

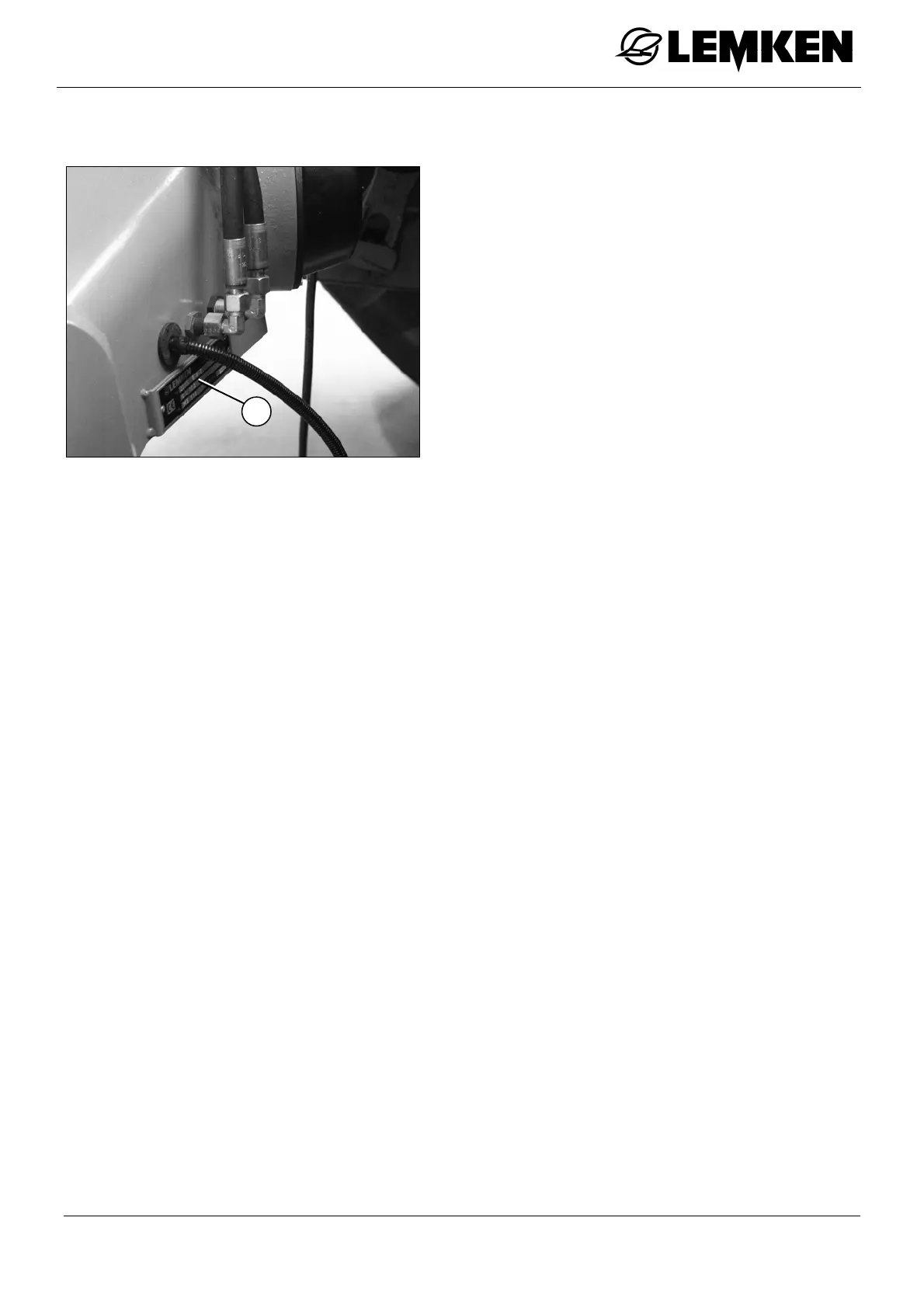

The identification plate (1) is situated on

the front of the three-point tower.
