Layout and description
32
5 LAYOUT AND DESCRIPTION

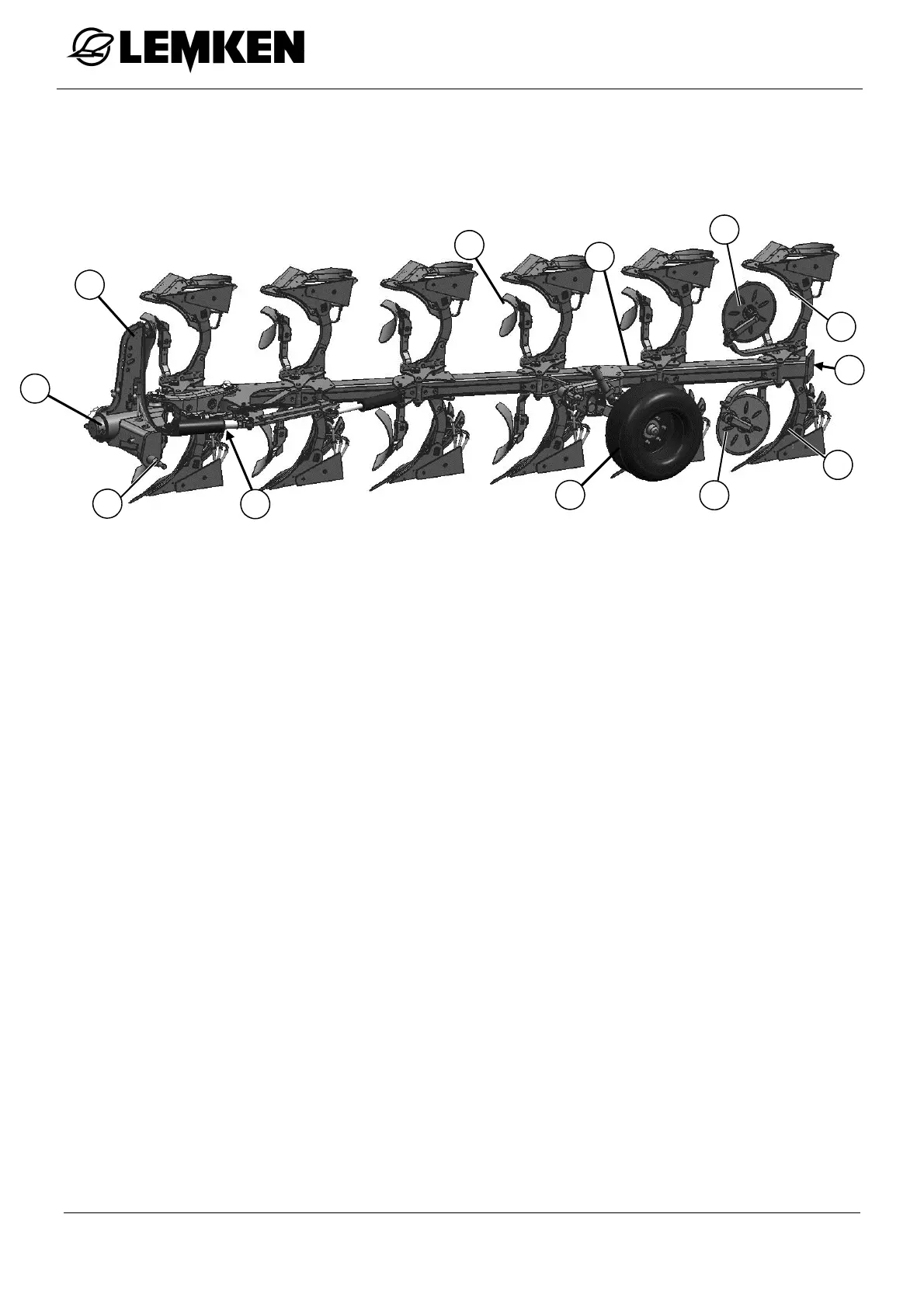

5.1 Overview
1 Headstock
2 Turnover device
3 Cross shaft
4 Optiquick adjustment centre
5 Depth wheel
6 Plough bodies
7 Lighting equipment - not shown
8 Basic frame
9 Additional tools (skimmer, trash-
board)
10 Disc coulters
5.2 Description
5.2.1 Headstock
The headstock with top link pin and drawbar complies with ISO 730.
The drawbar L2/Z3 complies with category 3N.
The drawbar L3/Z3 complies with category 3.
The drawbar L3/Z4 complies with category 4N.
The top link pin complies with category 3 or 4.
5.2.2 Turnover device
The ploughs in the Juwel 8 series have the electrohydraulic TurnControl G 120
turnover device.
5
1
9
2
8
7
4
3
10
10
6
6
