Operation
54
11.3 Angle
11.3.1 General information
When ploughing, the base blade should be almost vertical to the ground as seen
from the direction of travel. The correct angle is set when the ploughing pattern is
uniform.
If this is not the case, then the angular adjustment must be altered as described
below.
11.3.2 Operating the hydraulic inclination adjustment system

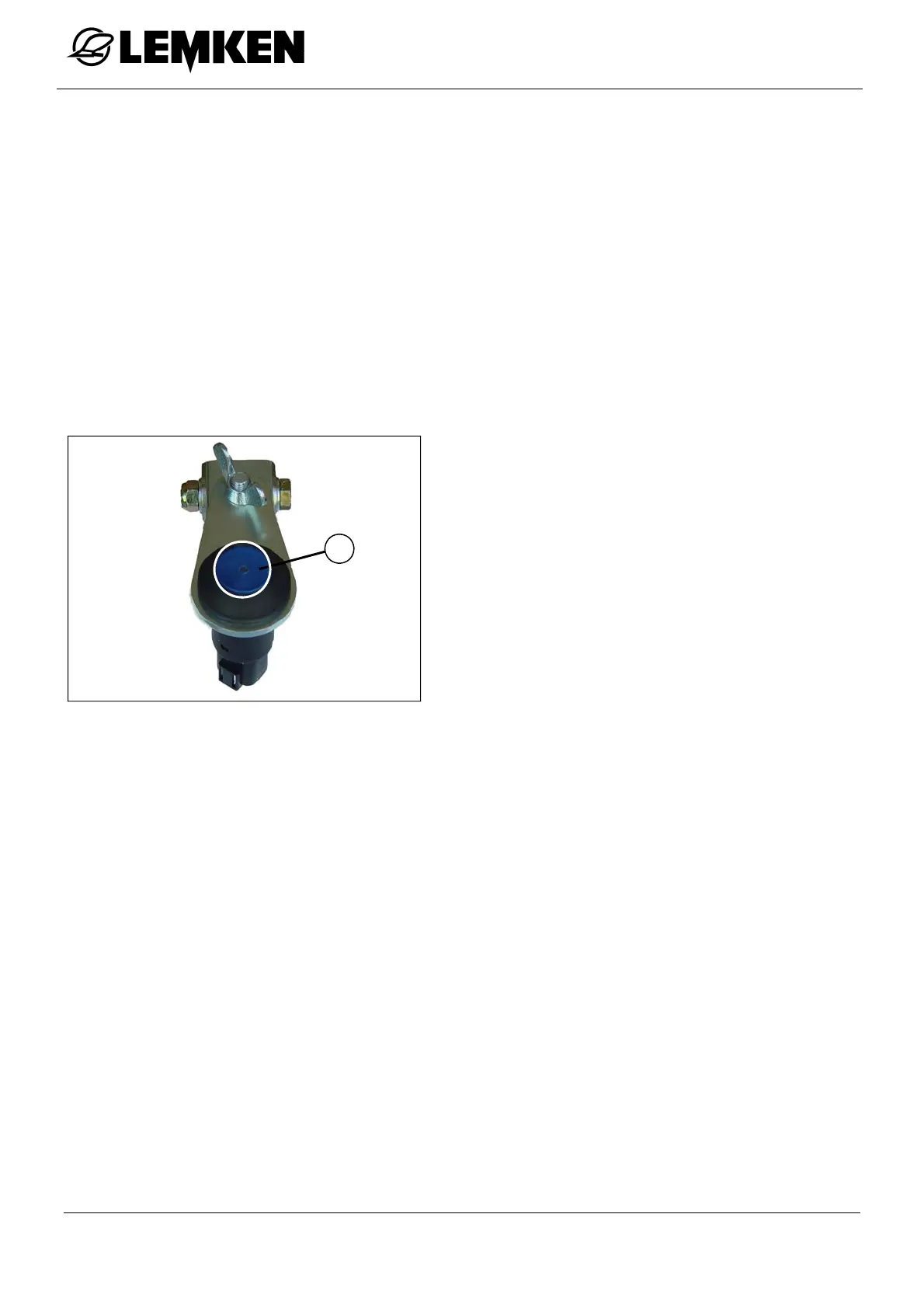

The inclination is adjusted using the spool
valve which is also used for turning. It is
operated with the blue button (1) in the
tractor cab.
Press the button (1).
The LED in the button lights up.
During ploughing, set the inclination re-
quired using the spool valve.
When the required inclination is reached,
you have two options:
Save the inclination setting.
To do this, press and hold the button (1)
until the LED goes out.
The saved inclination is automatically
restored after each turning process.
Set the inclination without saving.
To do this, press the button (1) briefly.
The LED goes out when the button is re-
leased.
The last saved inclination is automatical-
ly restored after the next turning pro-
cess.
1
