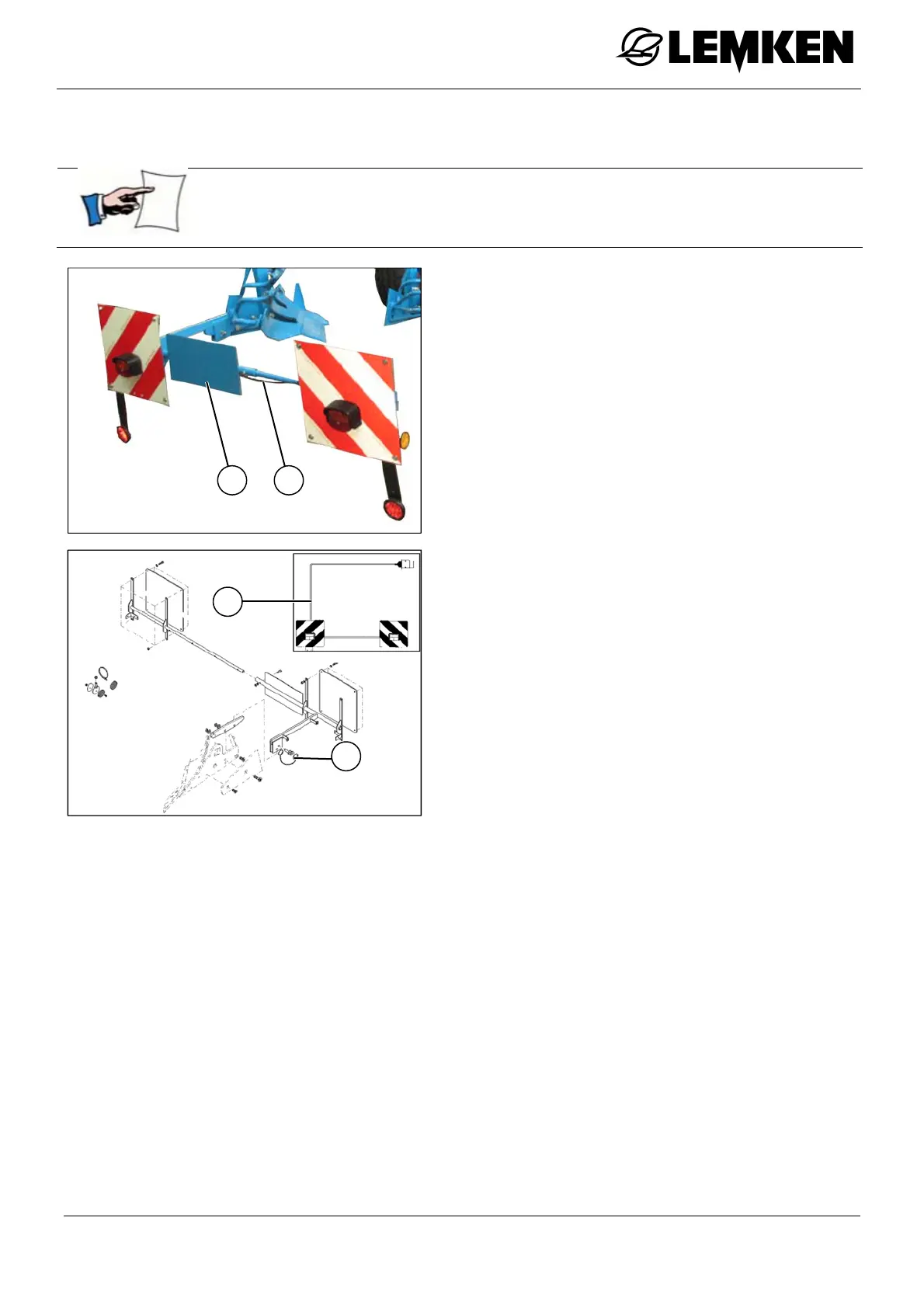

7.1.3 With depth control wheel
To prevent damage, the implement must always be raised before
the lighting equipment is installed or removed.

On the tractor, remove the plug for the
lighting equipment (1).
 Roll up the cable (2) towards the rear.

Remove the linch pin (3).
 Remove the lighting equipment (1).
7.2 Upper control link length
 Lower the plough.
 Turn the upper control link until the plough standing on even ground is 1 to 3 cm
higher at the front than at the rear.
If the upper control link is in the slot, it must be turned until the top link pin is at the
front of the slot when the plough is lowered and the plough is also 1 to 3 cm high-
er at the front than at the rear.
