LEMKEN Juwel 8 - Working Depth Adjustment

Operation
81

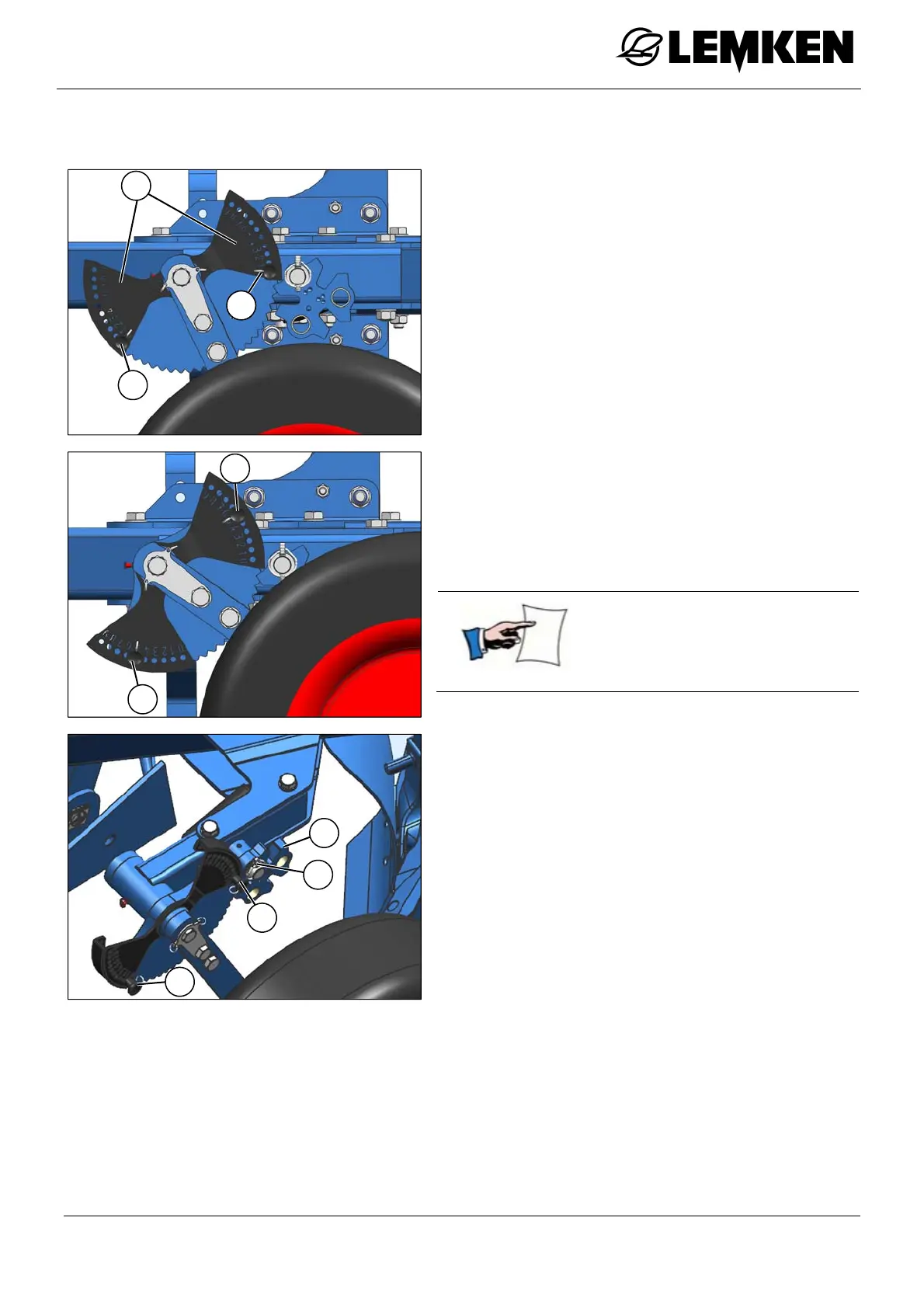

11.17.6 Working depth adjustment
Hydraulically dampened pendulum
wheel
Pendulum wheel
 Remove the socket pin (2).
 Move the depth adjustment wheel (1) by
the same amount on both sides.
 Move the depth adjustment wheel (1)
towards the wheel axle (downwards) =>
increases the working depth
 Move the depth adjustment wheel (1)
towards the swivel axis (upwards) => re-
duces the working depth
 Fix the depth adjustment wheel (1) in
place with socket pins (2).
Ensure that the socket
pins (2) are fitted right up
to the stop.
If finer adjustment is required, the ratchet
(3) can be moved to a number of positions.
 Remove the linch pin (4).
 Move the ratchet (3) to the required posi-
tion.
 Secure the ratchet (3) with the linch pin
(4).
1
2
2
2
2
2
2
3
4
