LEMKEN Juwel 8 - Page 84

Operation
82

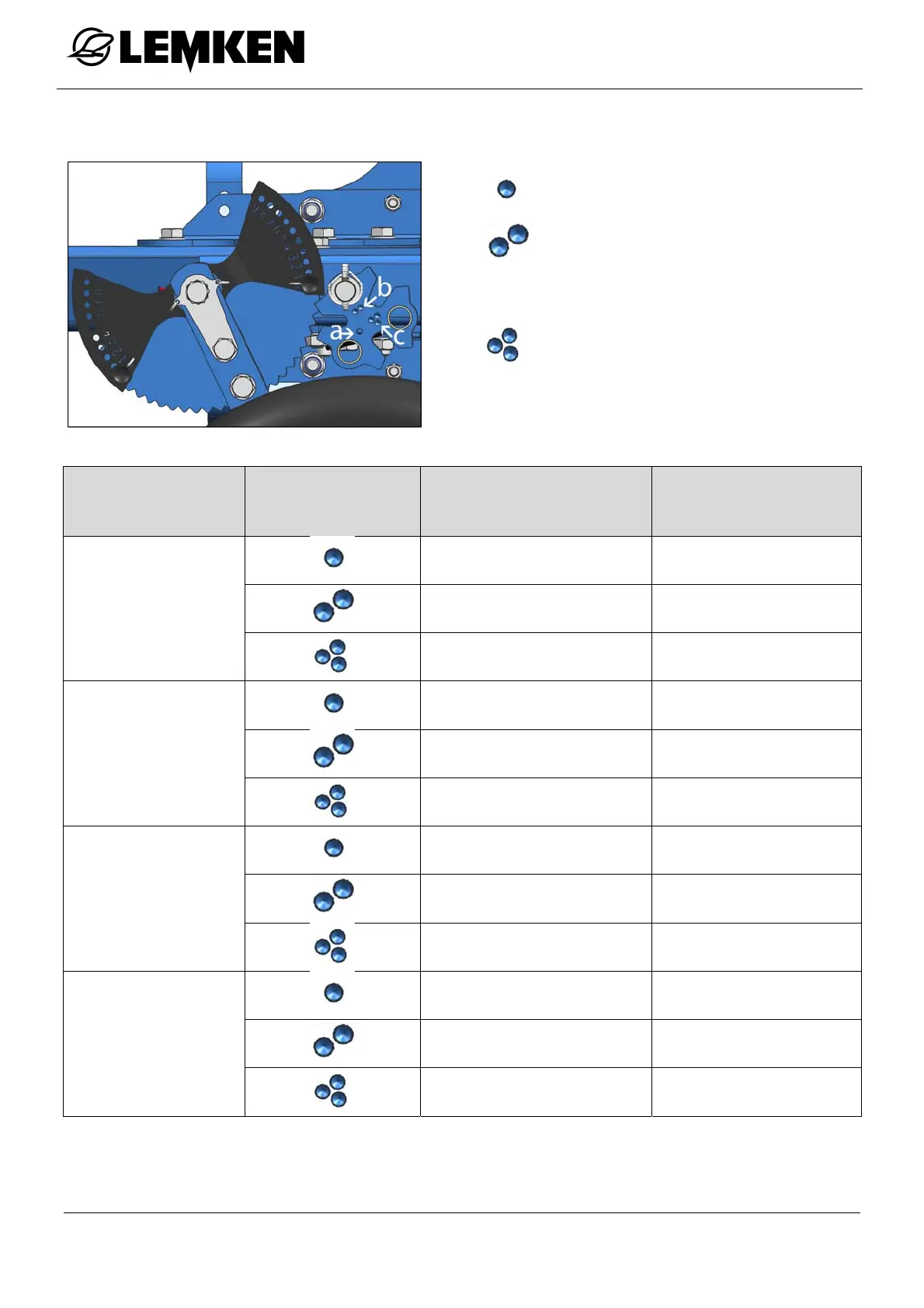

Depth adjustment table
a =
b =
c =
Depth adjustment
position (1)
Ratchet position
(3)
cm (total) to set depth
(X)
Difference from pre-
vious position, cm
0
X
X + 0.7 0.7
X + 1.5 0.8
1
X + 2.5 1
X + 3.3 0.8
X + 4.2 0.9
2
X + 5.4 1.2
X + 6.4 1
X + 7.5 1.1
3
X + 8.9 1.4
X + 10 1.1
X + 11.2 1.2
