11.10.2 Juwel
Plough with 100 cm length passage

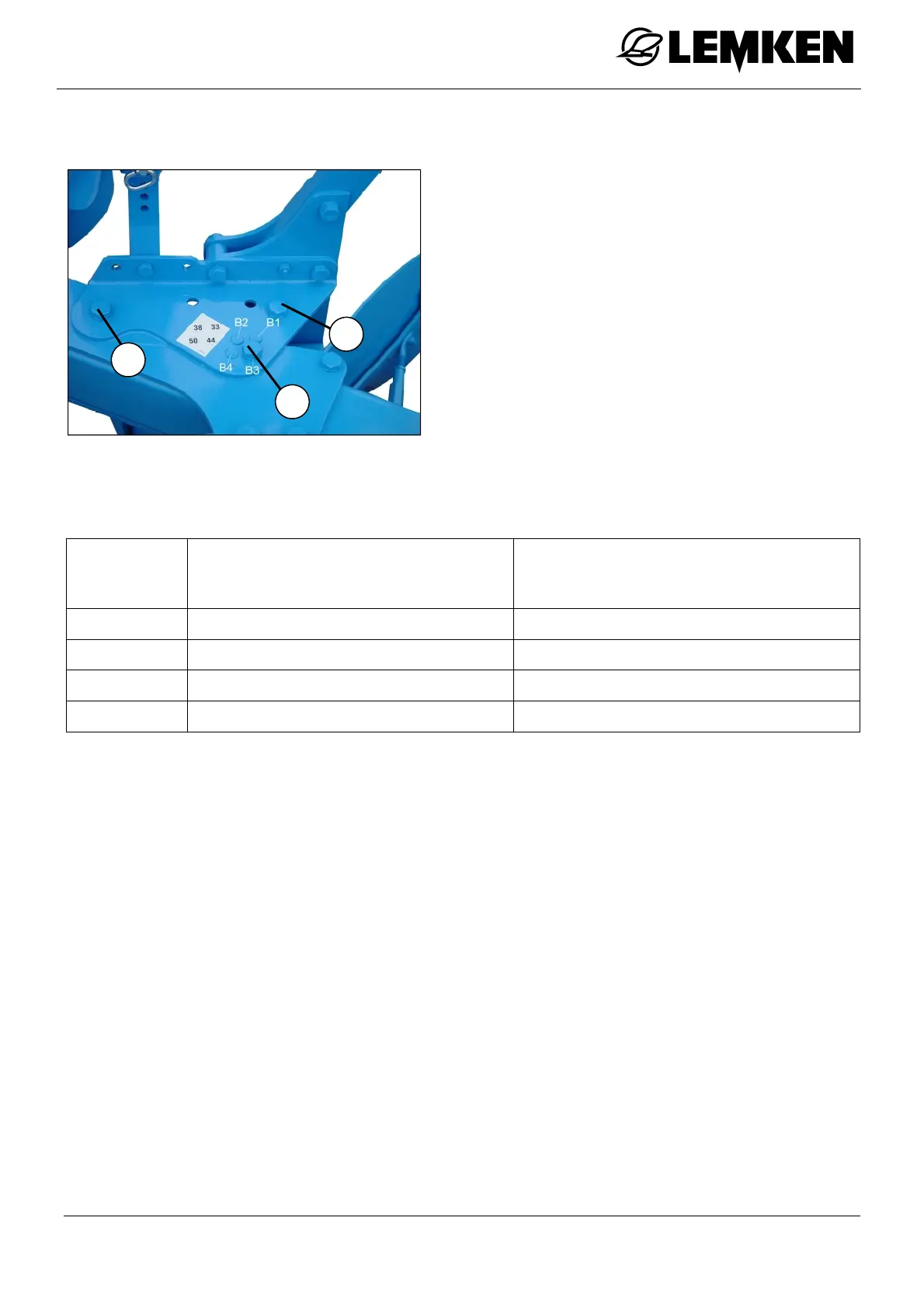

Undo the central screw (1) and the
screw (3).
Remove the adjusting screw (2).
Rotate the base to the desired position.
Fit the adjusting screw (2).
Tighten the adjusting screw and the cen-
tral screw securely. See «Tightening tor-
ques, page 101».
The following working widths are possible depending on the length passage:
Hole Working width at 90 cm
length passage
Working width at 100 cm
length passage
B1 30 33
B2 35 38
B3 40 44
B4 45 50
(The specified working width for each base is a guideline value.)
