LEMKEN Juwel 8 - Moving the Hydraulically Dampened Uni Wheel from the Transport Position to the Working Position

Operation
80
11.17.5 Moving the hydraulically dampened Uni wheel from the transport
position to the working position


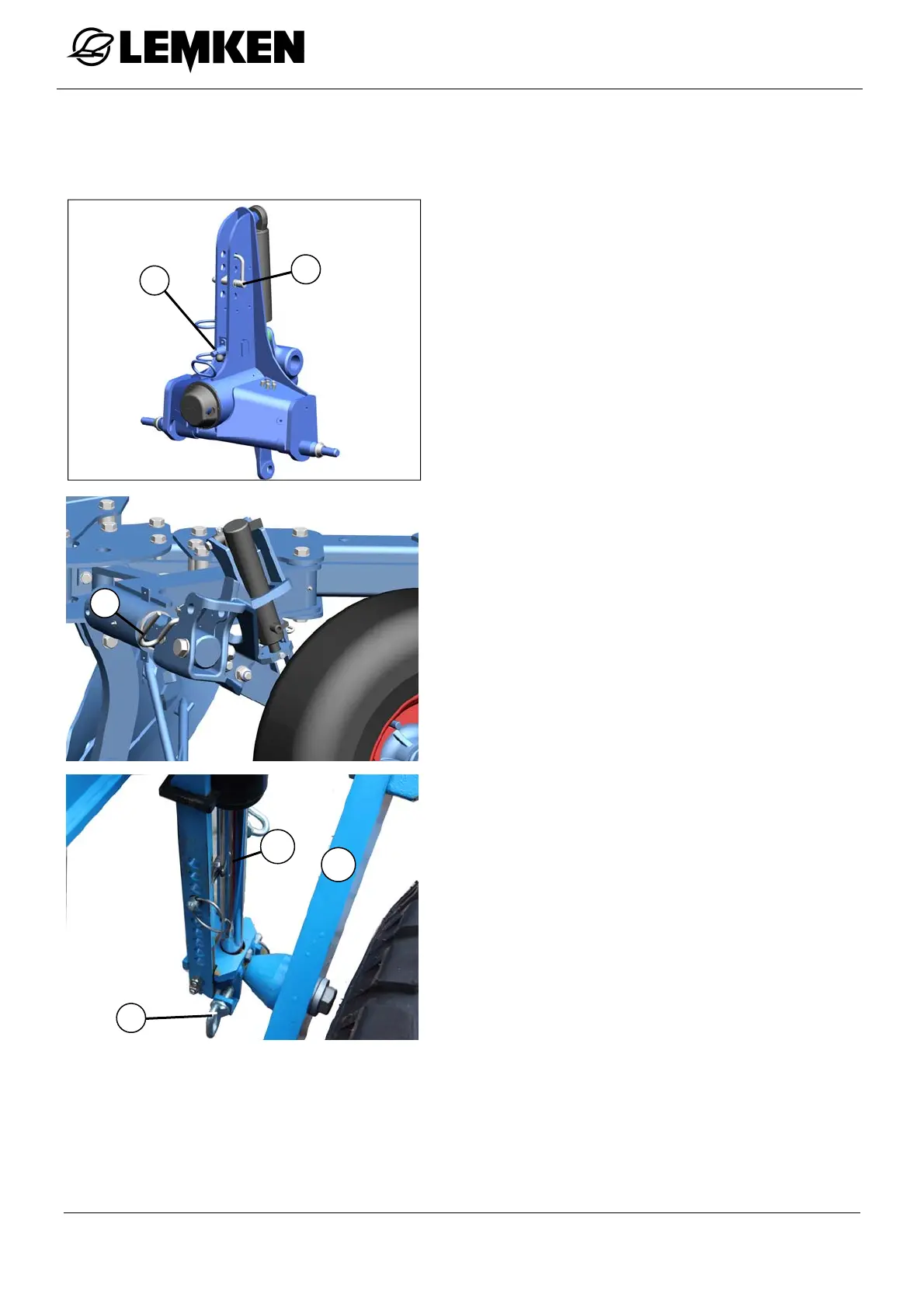

Connect the top link to the headstock.
 Secure the top link with the top link pin
(9).
 Raise the plough.
 Swivel the locking pin (6) through 180°
to remove it. The handle must lock in
place in the recess at the front.
 Turn the plough into the right-hand work-
ing position.
 Pull the pin (5) out.
 Pivot the Uni wheel through approx. 90°
towards the plough frame.
 Lock the Uni wheel in this position with
the pin (5).
 Secure the pin (5) with the linch pin.
 Lower the plough onto the ground.
 Attach the hydraulic damper (3) to the
wheel stalk (4).
 Secure the hydraulic damper (3) with the
safety pin (2).
 Raise the plough.
5
3
2
4
9
6
