LEMKEN Juwel 8 - Swivel Action Limiter; Subsoiler

Operation
73

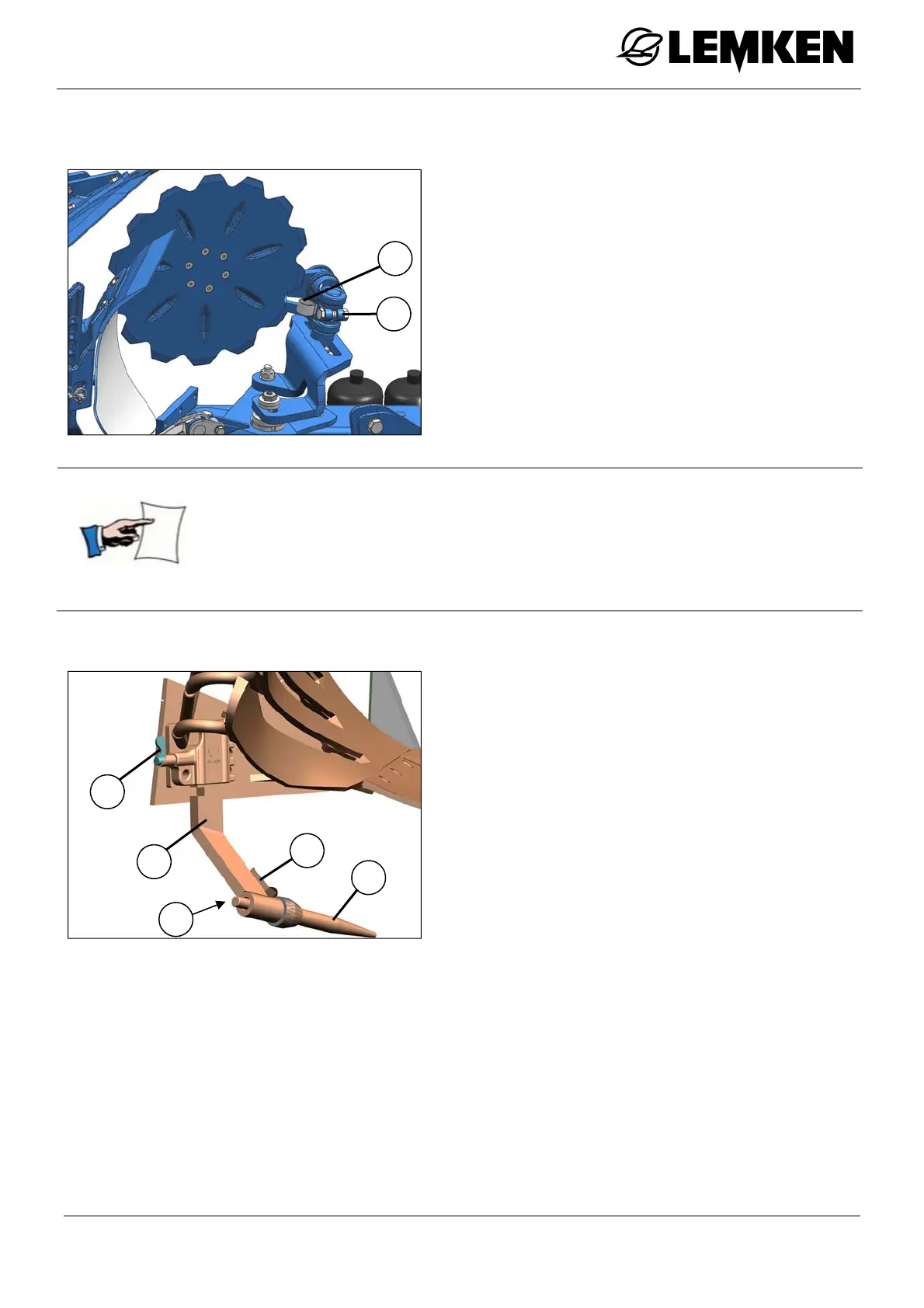

11.15.4 Swivel action limiter
The lateral swivel area of the disc coulter is
set with the bolt (9).
 Loosen the bolt (9).
 Move the stop (10) into the position re-
quired.
 Tighten the bolt (9), see «Tightening tor-
ques, page 101».
 Tighten all loosened bolts and nuts securely after every adjust-
ment.
 Never reverse with the implement while the disc coulters are
still in the soil.
11.16 Subsoiler

Fit the subsoiler as shown in the adja-
cent illustration.
Moving the blade (1) enables the working
depth of the subsoiler to be adjusted to two
positions.
 Release the subsoiler using a spring
lock (2).
 Move the subsoiler to obtain the desired
working depth.
 Secure the subsoiler again with the
spring lock (2).
The blade (1) is protected against wear by
the blade guard (3). Both the blade guard
(3) and the thorn (4) can be replaced after
removing the nuts (5).
10
10
1
2
3
4
5
