LEMKEN Juwel 8 - Landside

Operation
66
11.11 Landside

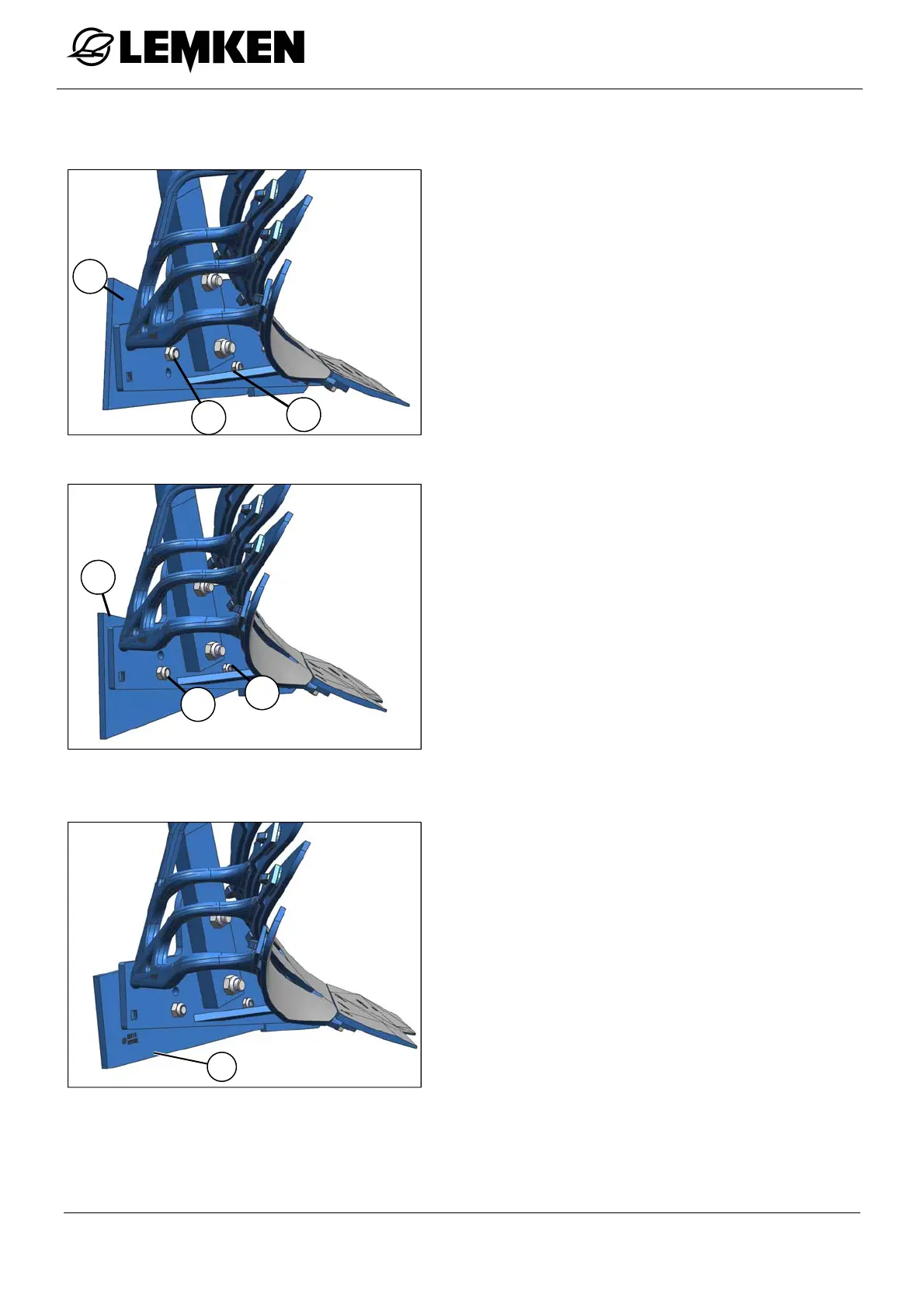

Landside DMV1, standard position
Landside DMV1, position for working on
slopes
For better guidance on slopes, move land-
side V1 (1) to a lower position (only possi-
ble with DuraMaxx plough bodies.)
 Loosen the bolt
(3).
 Remove the bolt (2).
 Move the landside (2) to the lower posi-
tion.
 Replace the bolts.
 Tighten all the bolts.
See «Tightening torques, page 101».
Landside DMV2
Landside V2 (4) remains in this position
even on slopes.
4
1
2
3
1
2
3
