LEMKEN Juwel 8 - Working Depth; Moving Forwards or Backwards

Operation
68

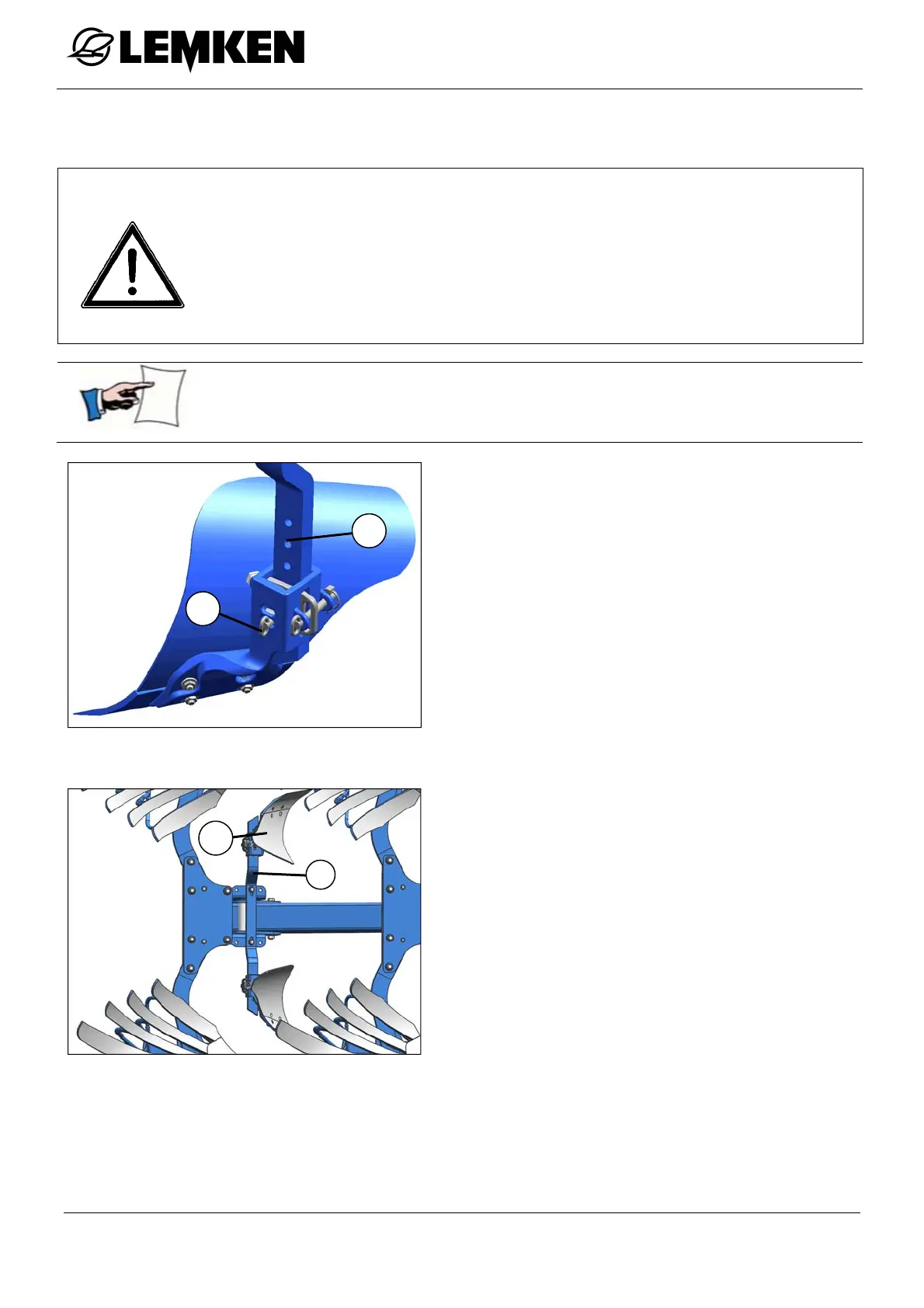

11.12.3 Working depth
CAUTION
Risk of crushing
When setting the working depth, the skimmer may drop down
when the pin (4) is removed.
 Hold on to the skimmer with one hand until you have secured it
by inserting the pin.
Adjusting the working depth does not change the projection angle
setting.

Release the pin (4).
 Pull the pin (4) out.
 Adjust the working depth by selecting a
different hole (5).
 Insert the pin (4) into the selected hole.
 Secure the pin (4) with the securing pin.
11.12.4 Moving forwards or backwards
The stalk (6) can be moved forwards or
backwards to optimise the skimmer (1) po-
sition:
 Backwards = more space between the
skimmer and the plough body in front of
it.
 Forwards = more space between the
skimmer and its associated plough body
(e.g. to prevent stones from getting
stuck).
5
4
6
6
