LEMKEN Juwel 8 - Adjustment Centre

Operation
88
11.18.4 Adjustment centre
F operation

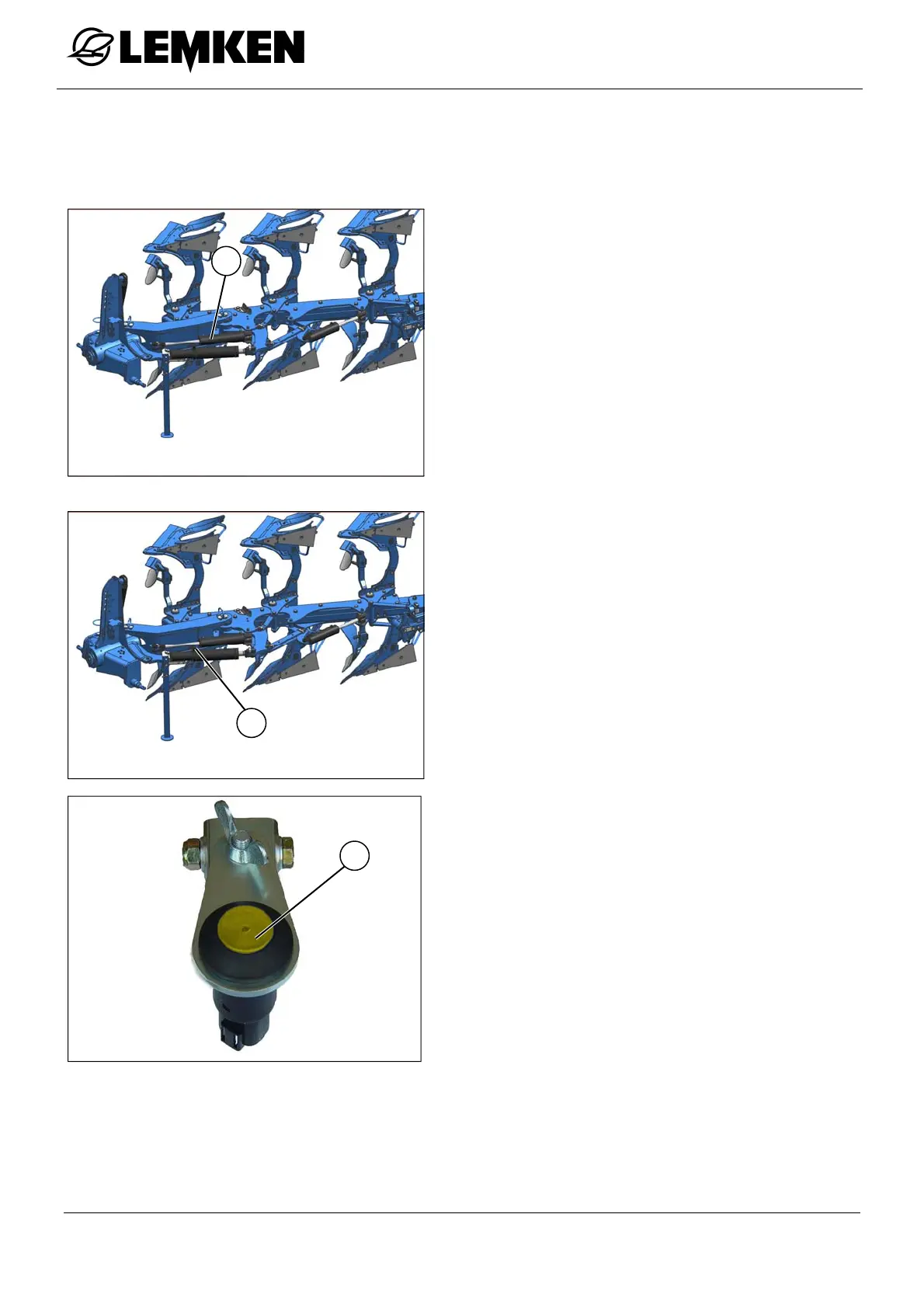

Front furrow width
Front furrow too wide
 Retract the hydraulic ram (2).
Front furrow too narrow
 Extend the hydraulic ram (2).
Side pull correction / tractor/plough pull
line adjustment
Adjust the tractor/plough pull line using the
outer hydraulic ram (3) so that there is no
side pull.

To adjust the length of the hydraulic ram
(3), press the yellow button (6) (LED
lights up).
 Press and hold the yellow button (6) for
approx. 4 seconds = save the setting.
Tractor pulls towards the ploughed land
 Retract the outer hydraulic ram (3).
Tractor pulls towards the unploughed land
 Extend the outer hydraulic ram (3).
2
3
6
