11.15.3 Lateral distance

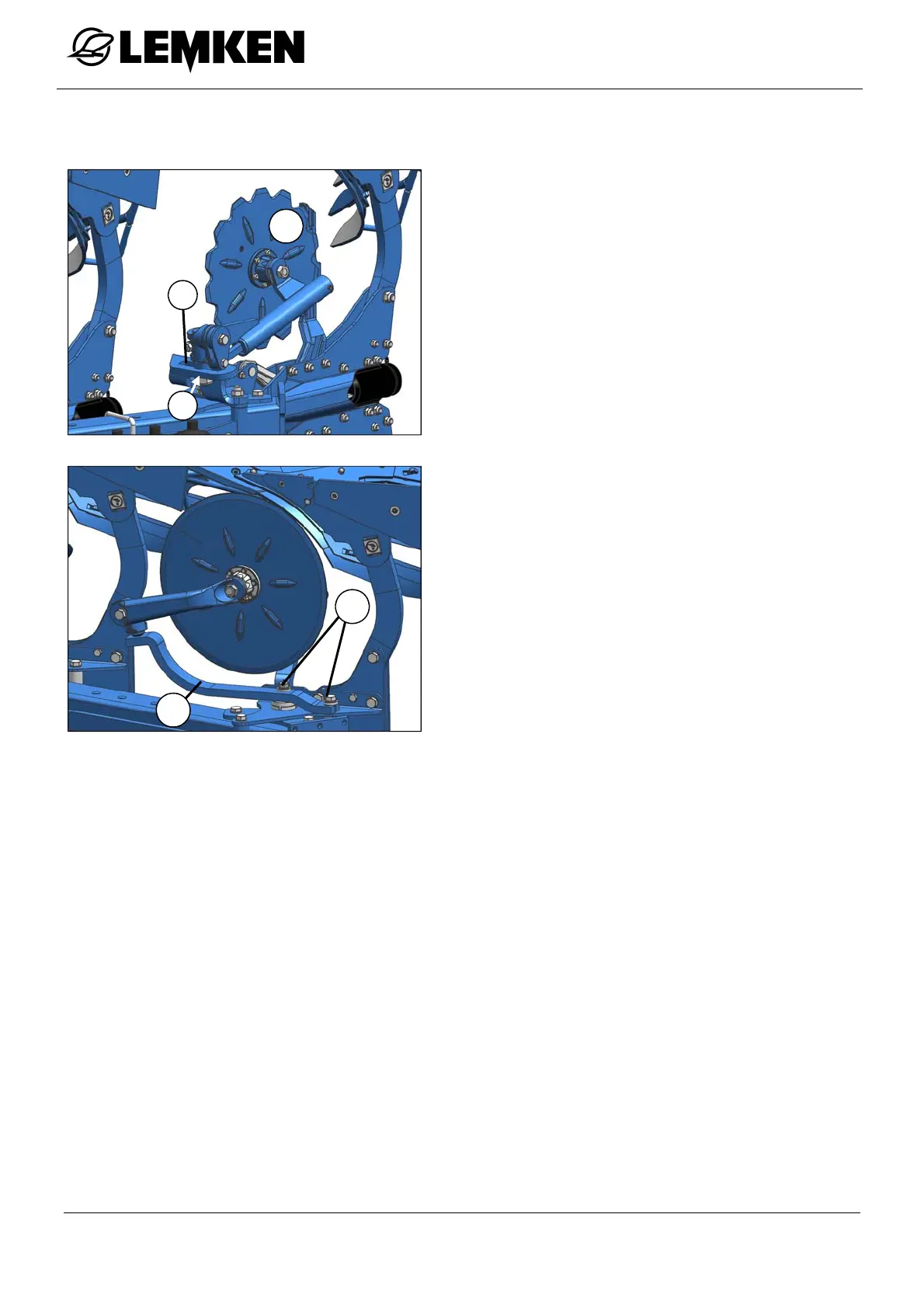

Suspended disc coulter
The lateral distance from the coulter disc
(6) to the shin is set by:
 Swivelling the coulter stalk (7)
or
 Moving the pivot in the slot (11).
 Loosen the relevant bolts / nuts (1) or
(8).
To set the lateral distance.
 Swivel the coulter stalk (7),
or
 Move the pivot in the slot (11),
until it is in the position required.
 Tighten the bolts / nuts (1) or (8), see
«Tightening torques, page 101».
