Operation
78
11.17.4 Moving the hydraulically dampened Uni wheel from the working
position to the transport position
CAUTION
 Read and follow «Safety measures and precautions, page 13»
and «Hazard caused by hydraulic systems, page 20».
There are crushing and shearing points in the area around the
wheel stops
 Keep a safe distance away.
 Do not exceed the maximum permissible tyre pressure.


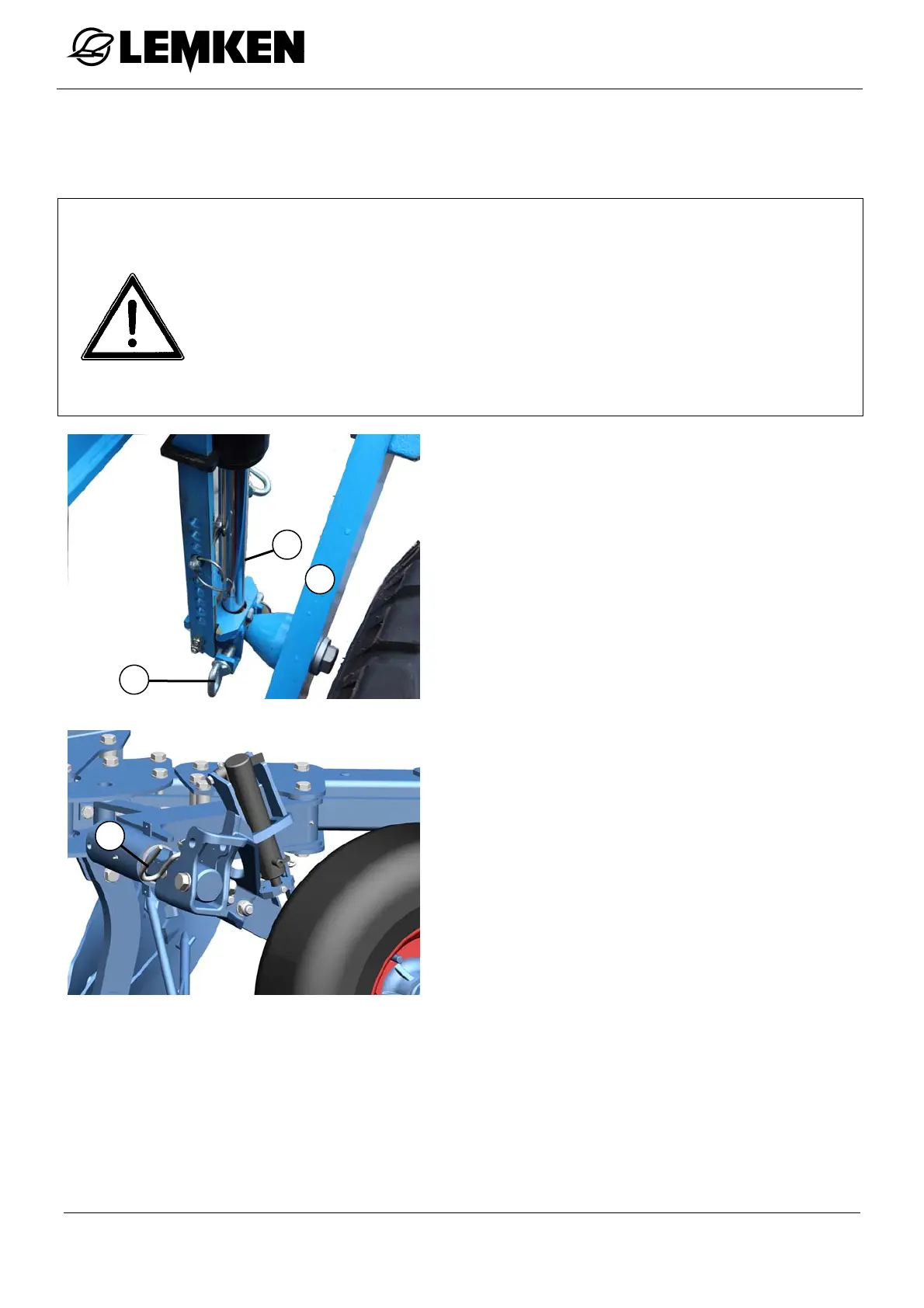

Turn the plough into the right-hand work-
ing position.
 Lower the plough onto the ground.
 Remove the safety pin (2).
 Detach the hydraulic damper (3) from
the wheel stalk (4).

Raise the plough using the hydraulic
system.
 Release the pin (5).
 Pull the pin (5) out.
 Pivot the wheel through 90°.
 Lock the wheel using the pin (5).
 Secure the pin (5) with the linch pin.
2
4
3
5
