11.17.3 Moving the hydraulic Uni wheel from the transport position to the
working position


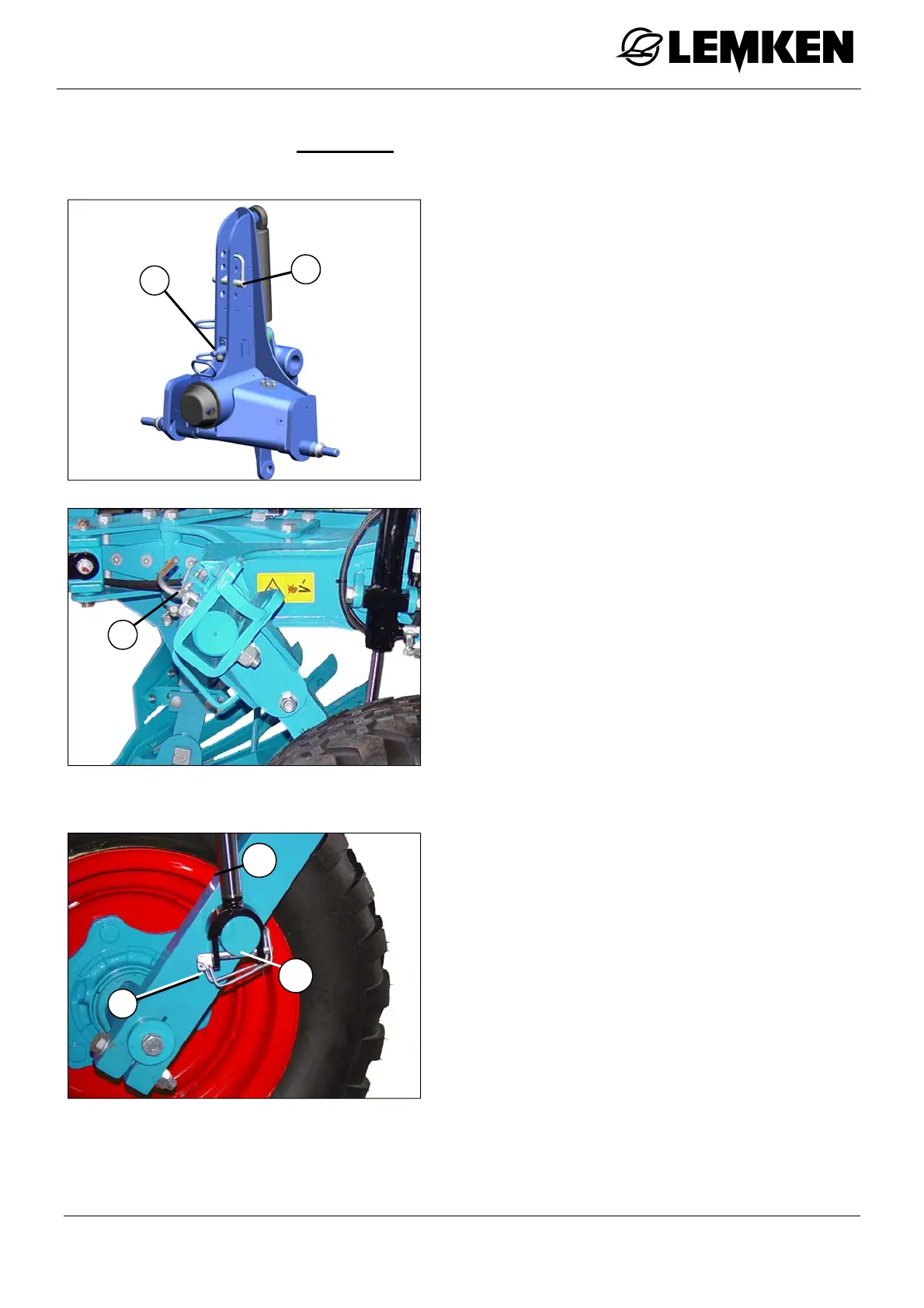

Connect the top link to the headstock.
 Secure the top link with the top link pin
(9).
 Raise the plough.
 Swivel the locking pin (6) through 180°
to remove it. The handle must lock in
place in the recess at the front.

Turn the plough into the right-hand work-
ing position.
 Pull the pin (10) out.
 Pivot the Uni wheel through approx. 90°
towards the plough frame.
 Lock the Uni wheel in this position with
the pin (10).
 Secure the pin (10) with the linch pin.
 Lower the plough onto the ground.

Attach the hydraulic ram (12) to the
wheel stalk (13).
 Secure the hydraulic ram (12) using the
pin (11).
 Raise the plough.
